The working principle of valve ZDC is based on the mechanism of throttling and pressure compensation. Meter-in pressure compensator ZDC is usually used together with a proportional directional valve WRZ to adjust the flow by controlling the opening of the throttle port, while using the pressure compensator to keep the pressure difference before and after the throttle port constant, thereby achieving load compensation. This makes the speed of the actuator unaffected by load changes, improving the stability and control accuracy of the system.

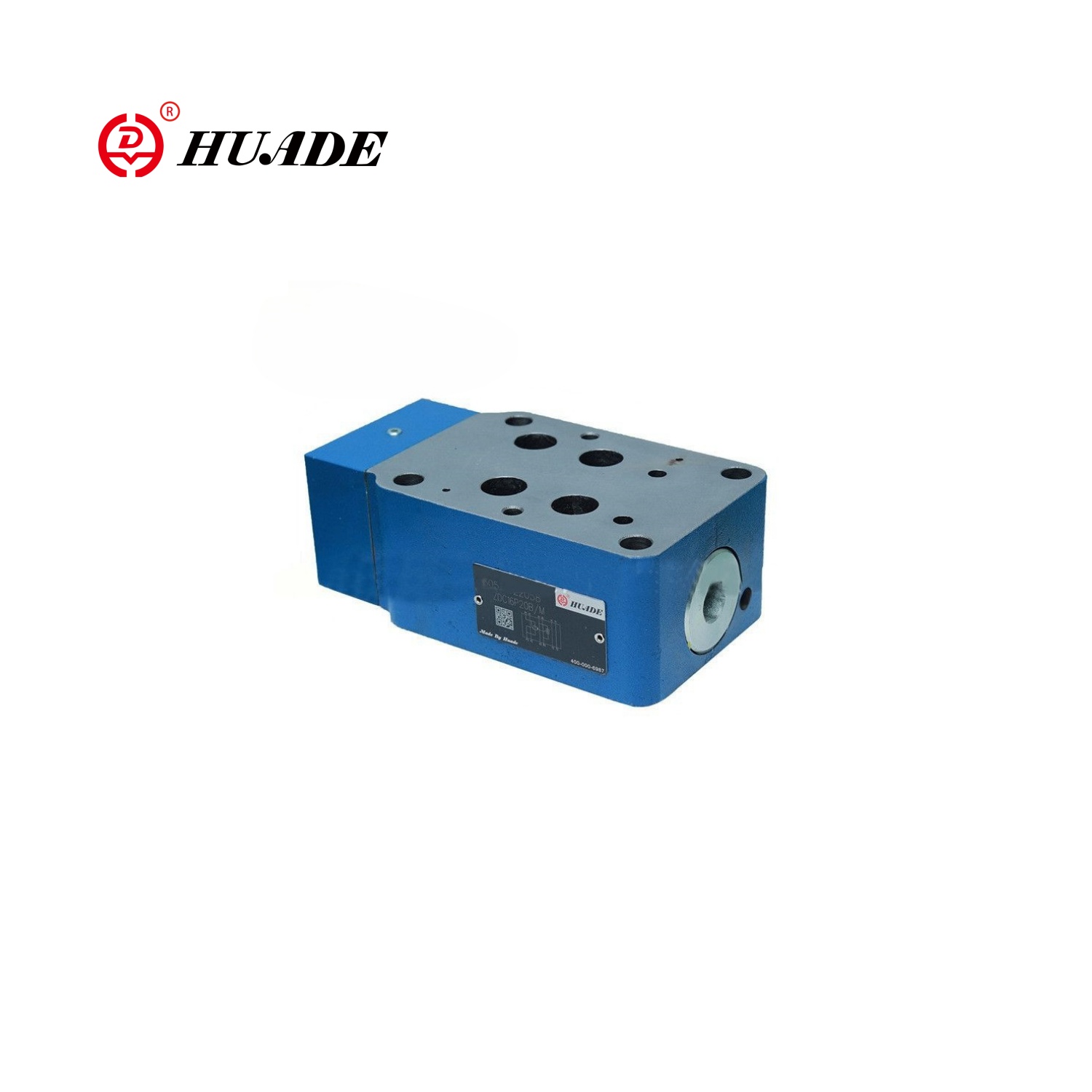

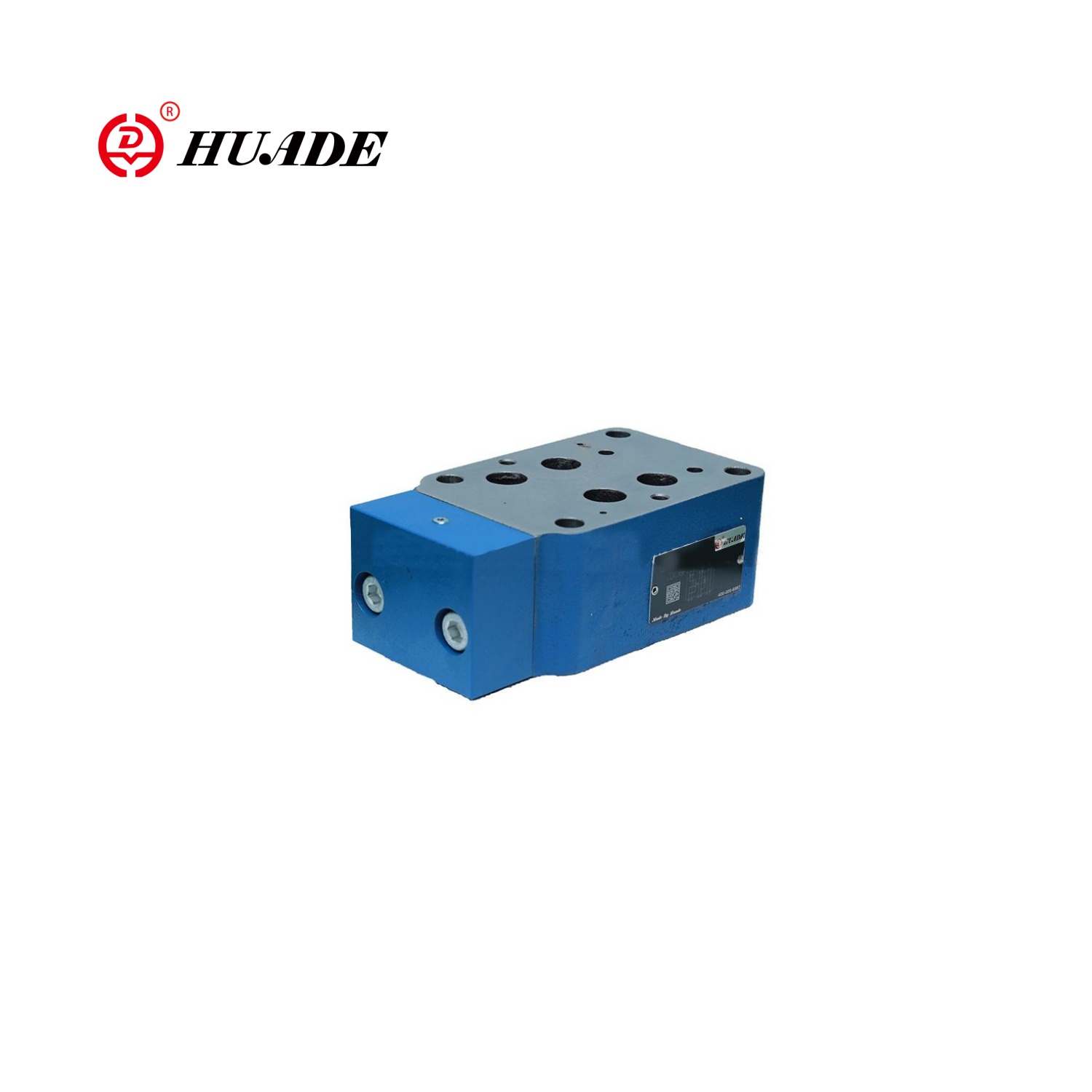

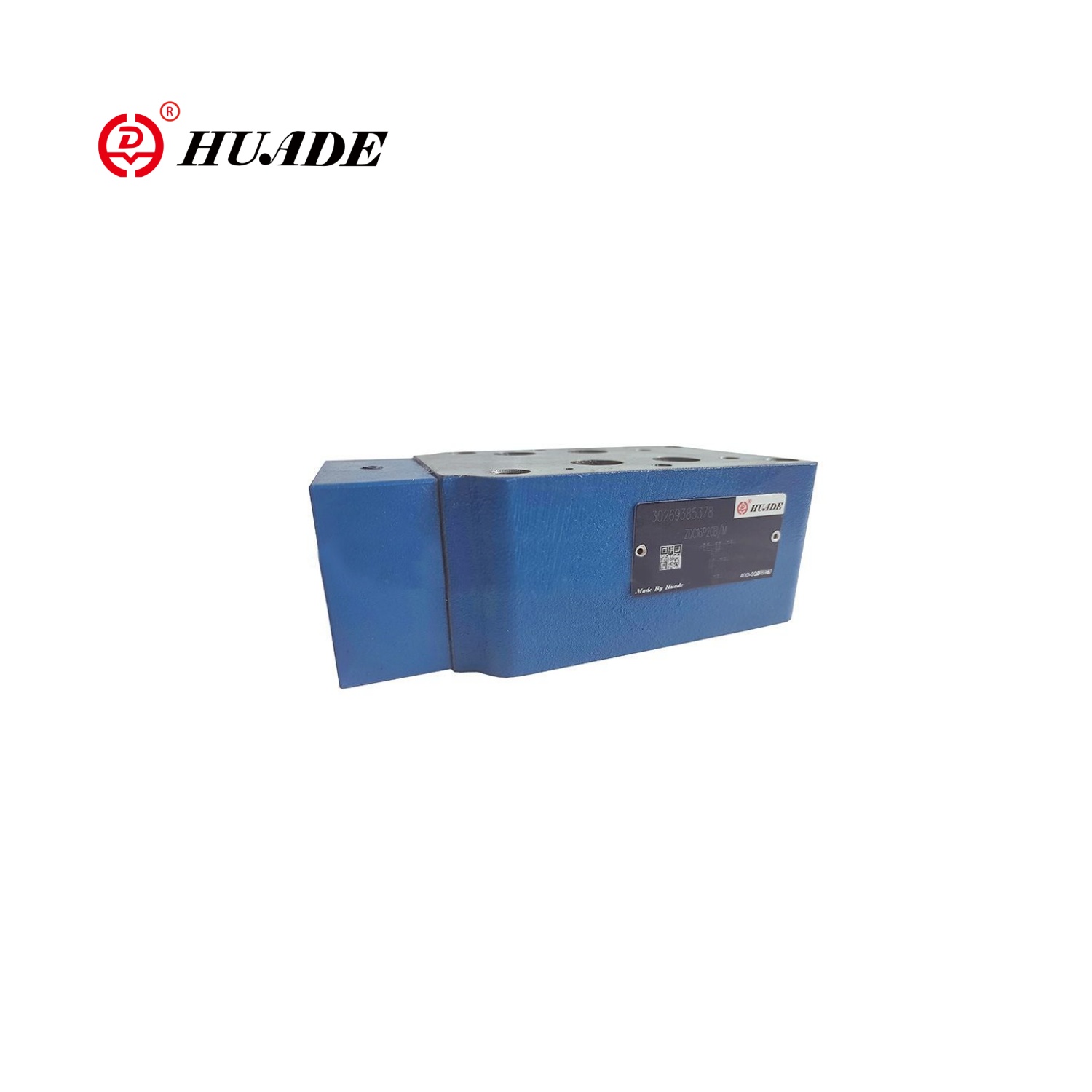

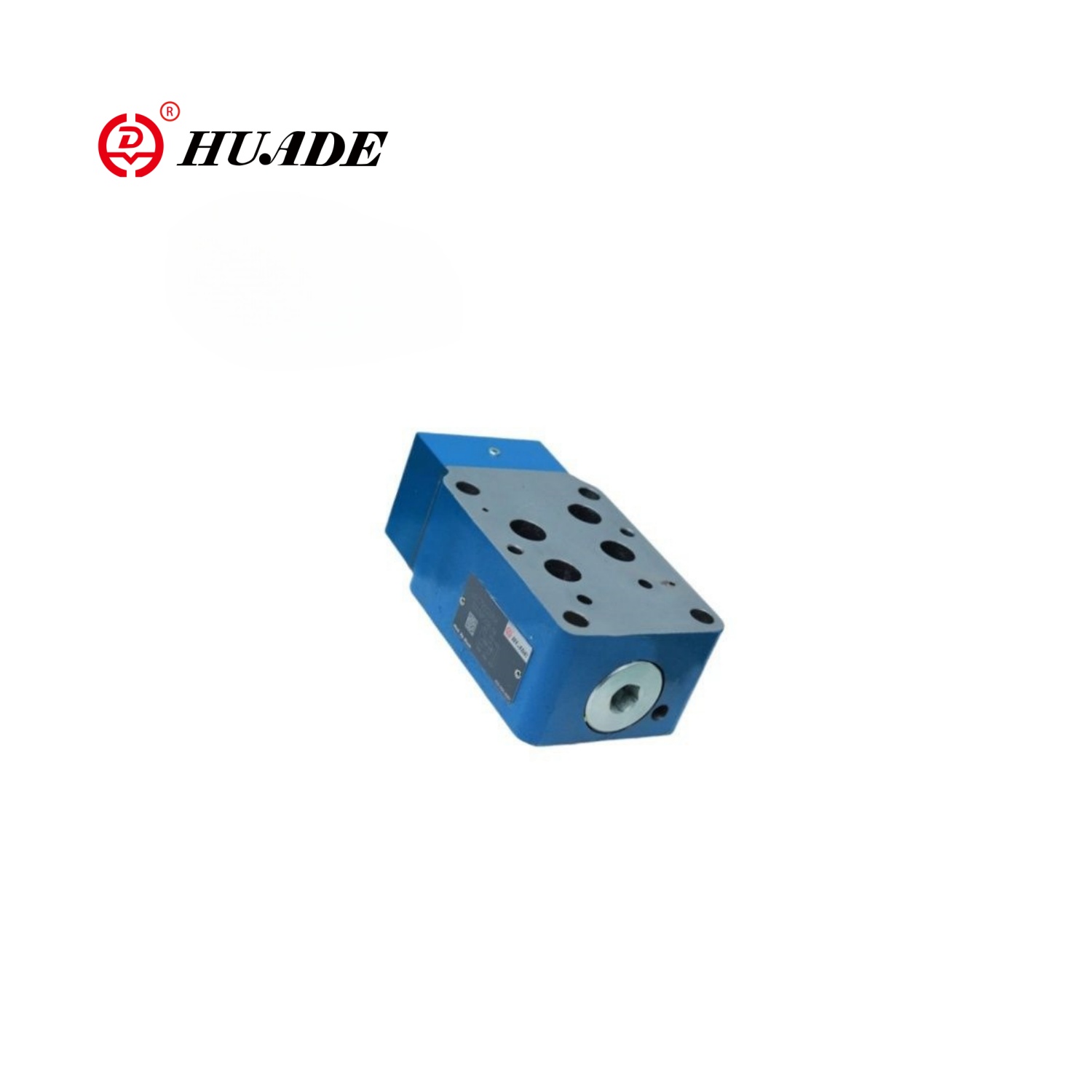

Meter-in Pressure Compensator ZDC
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth METER-IN-PRESSURE-COMPENSATOR-ZDC equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:2-way version “P’,3-way version “P T”
• Specifications:Meter-in Pressure Compensator ZDC series,
• Applications:metallurgical machinery, metallurgical machinery,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Load compensation in port P to A or P to B via a built-in shuttle valve
- 2-way version "P'
- 3-way version "P T" (NS10-25)
- Flow control when working together with a proportional directional valve
Industrial Applications
- Meter-in pressure compensator ZDC is widely used in metallurgical machinery, metallurgical machinery, metallurgical machinery.
- The meter-in pressure compensator ZDC valves are direct operated meter-in pressure compensators of 2 or 3-way design.
- They are used for the load compensation as a meter-in pressure compensator in channel P.

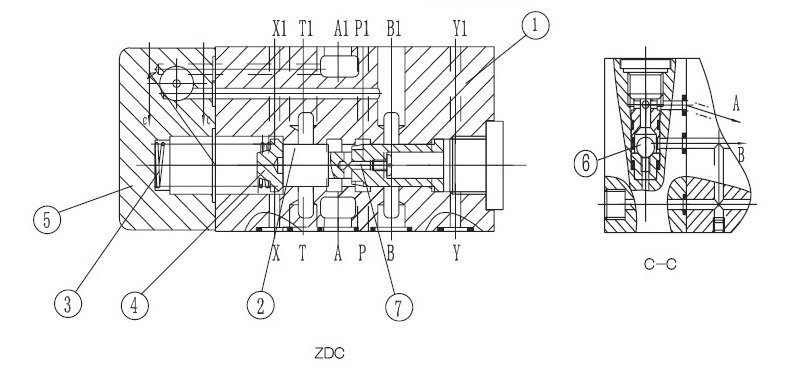

- These valves basically consist of the housing (1), the control spool (2), compression spring (3) with spring washer (4) and the cover (5) with integrated shuttle valve (6).
- The compression spring (3) holds the control spool (2) in the open position from P1 to P, when the pressure differential P1 to A1 or P1 to B1 is less than 1.0 MPa.
- If the pressure differential exceeds 1.o MPa, then the control spool (2) is moved to the left until the pressure differential is restored.
- Structure of Meter-in Pressure Compensator ZDC

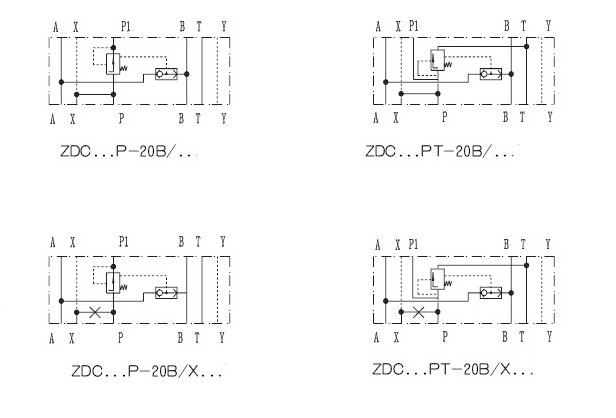

- Symbols of Meter-in Pressure Compensator ZDC
Technical Parameters
Mechanical ratings and operating limits for the Meter-in Pressure Compensator ZDC:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Size - 10 - 16 | 25 |
| Flow(L/min) - 85 - 150 | 325 |
| Weight(kg) - 3 - 3.5 | 8.9 |
| Operating pressure (MPa) Pmax - A、B、P - 35 | 35 |
| Operating pressure (MPa) Pmax - T - 25 | 25 |
| Operating pressure (MPa) Pmax - X - 3 to 10 | 3 to 10 |
| Operating pressure (MPa) Pmax - Y - up to 3.( Only when be used with the port operated proportional direction valve, othenwise 15) | up to 3.( Only when be used with the port operated proportional direction valve, othenwise 15) |
| Degree of containsnation - ≤20(recommend 10) | ≤20(recommend 10) |
