The characteristics of the plunger cylinder are: a single plunger cylinder can only achieve movement in one direction, and the reverse direction requires external force. The inner wall of the cylinder does not need to be finely processed because the plunger cylinder is guided by the guide sleeve on the cylinder head when it moves. The movement of the plunger is controlled by a proportional valve or other control elements.

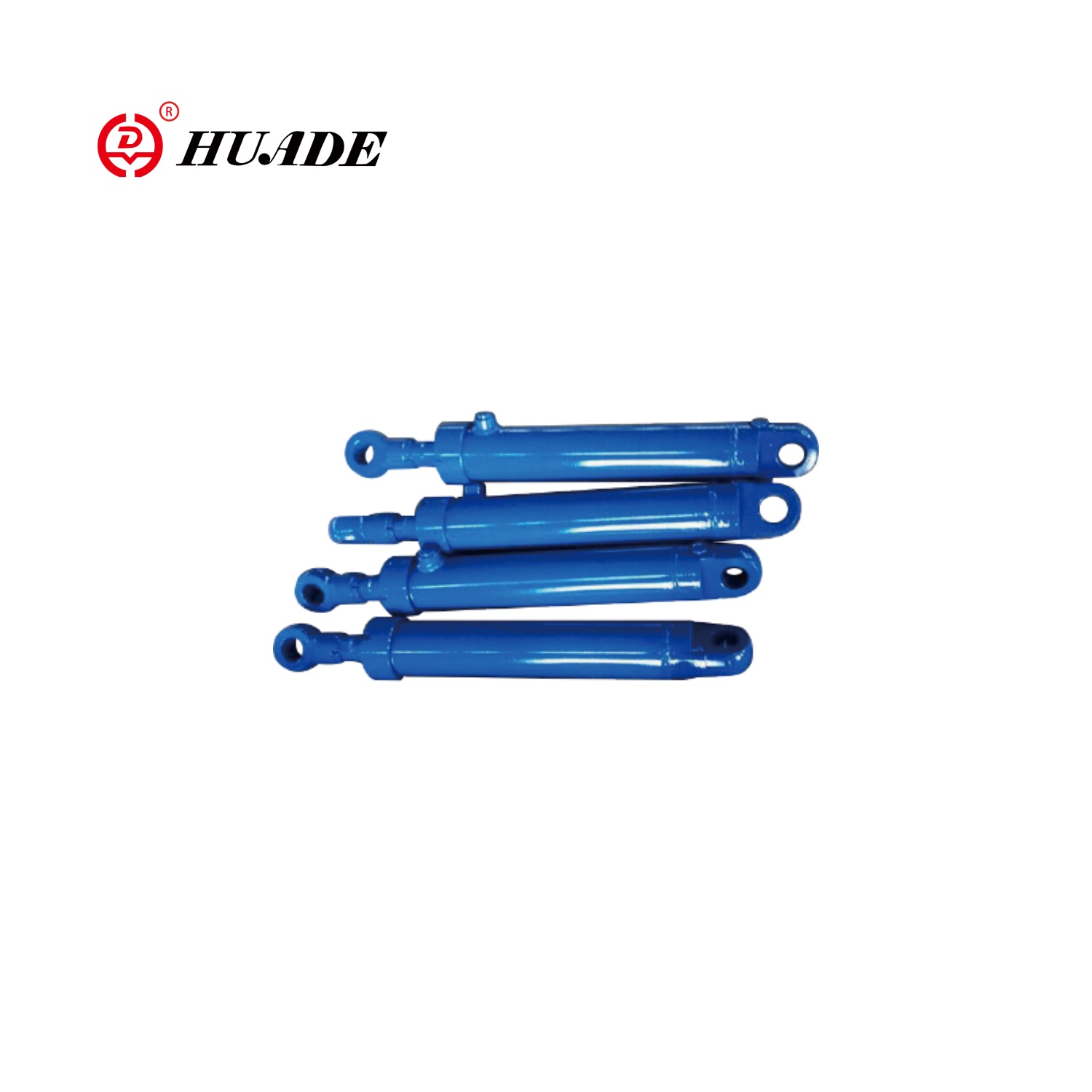

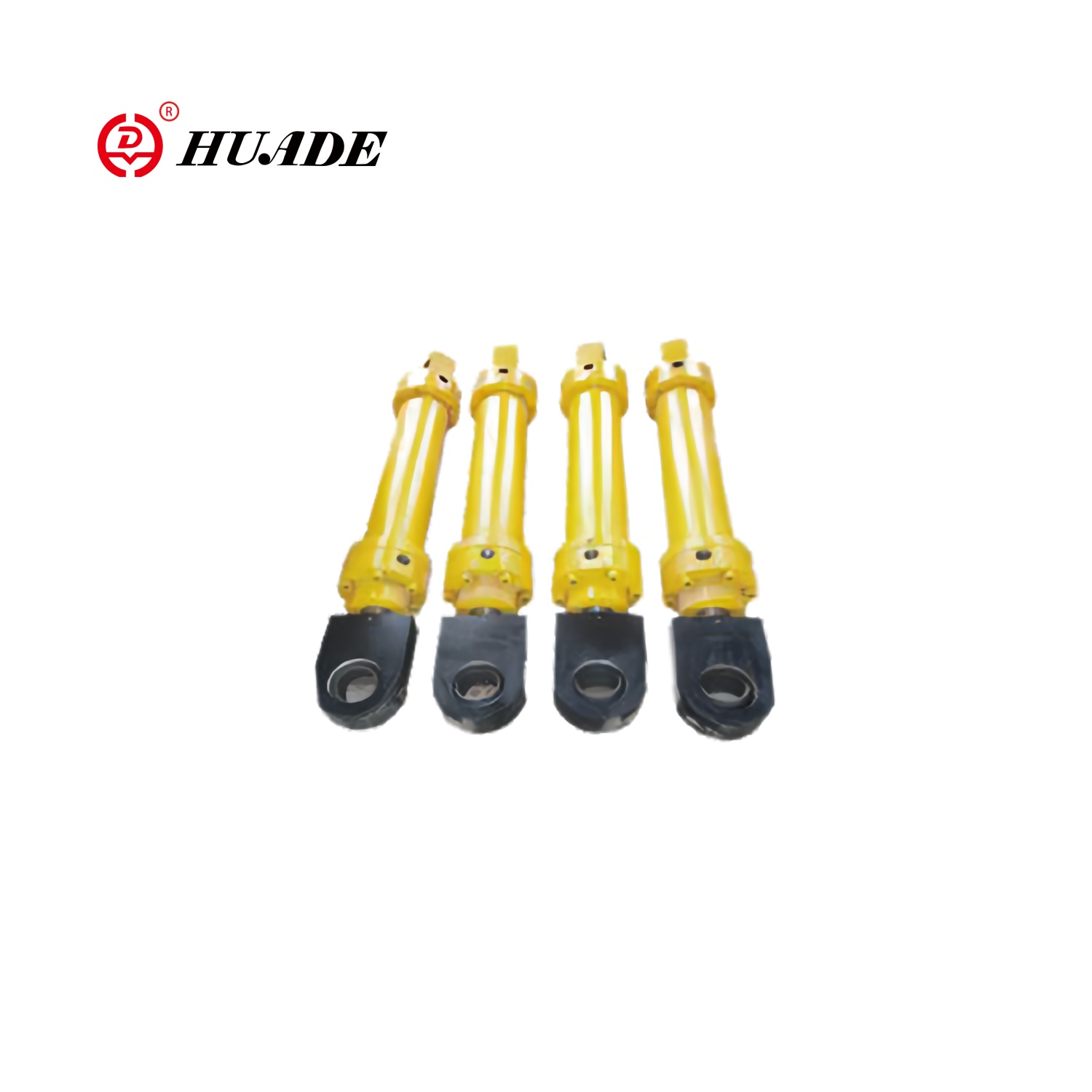

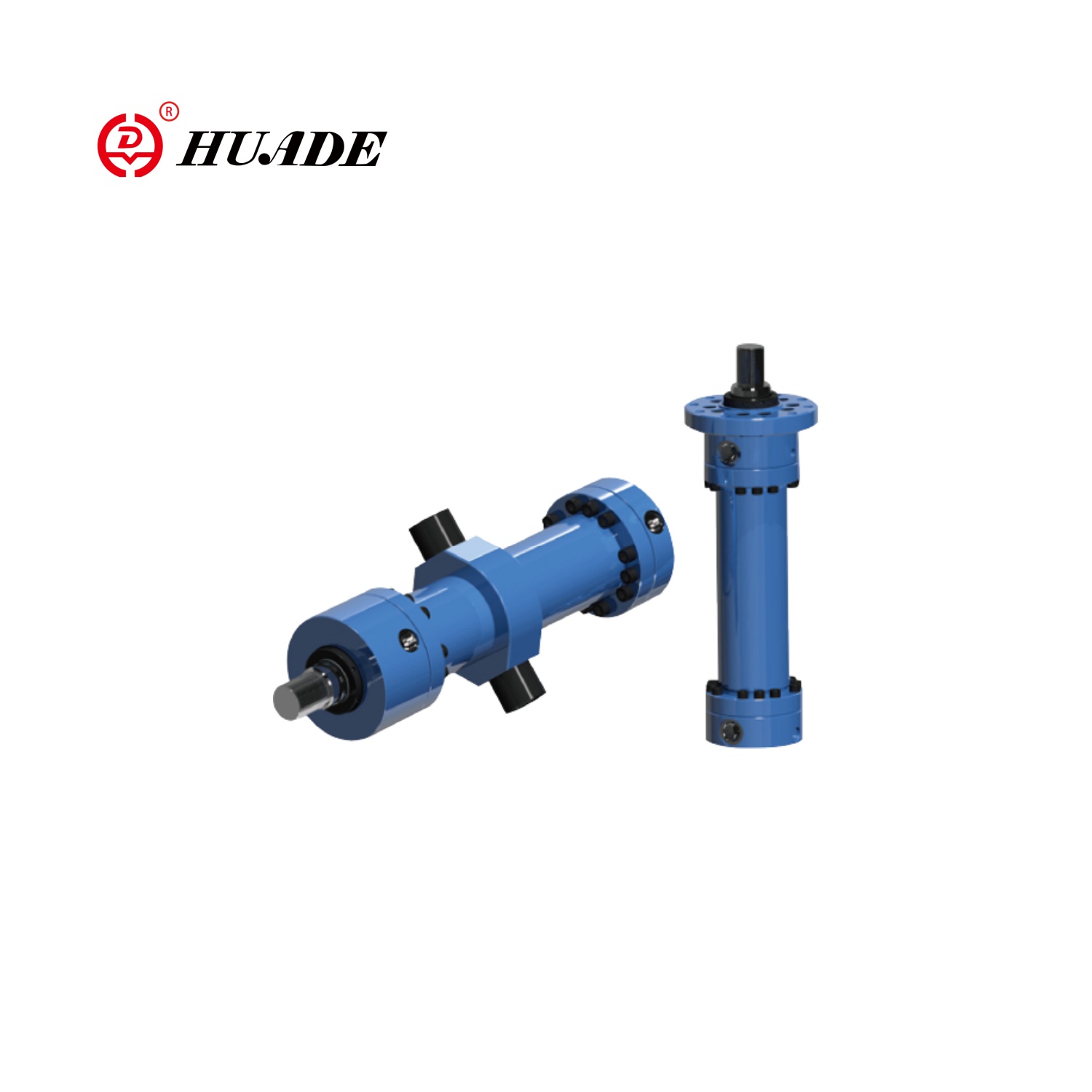

Plunger Cylinder
TECHNICAL REPLACEMENT NOTICE
This Huade® hydraulic cylinder serves as a 100% direct drop-in replacement for Bosch Rexroth PLUNGER-CYLINDER equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Light weight,Fast speed
• Specifications:Plunger Cylinder series,
• Applications: occasions
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry
✓
100% Genuine Huade
Direct factory authorized supply
✓
Standard Mounting
Standard mounting dimensions
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Simple and compact structure
- Light weight
- Low deadweight
- Fast speed
Industrial Applications
- Due to the features of the plunger cylinder, it is suitable for occasions requiring large flow and high speed.
- Huade’s plunger cylinder is widely used in rail transportation, shipbuilding, metallurgy, mining and other fields, especially in occasions requiring long stroke and high load.

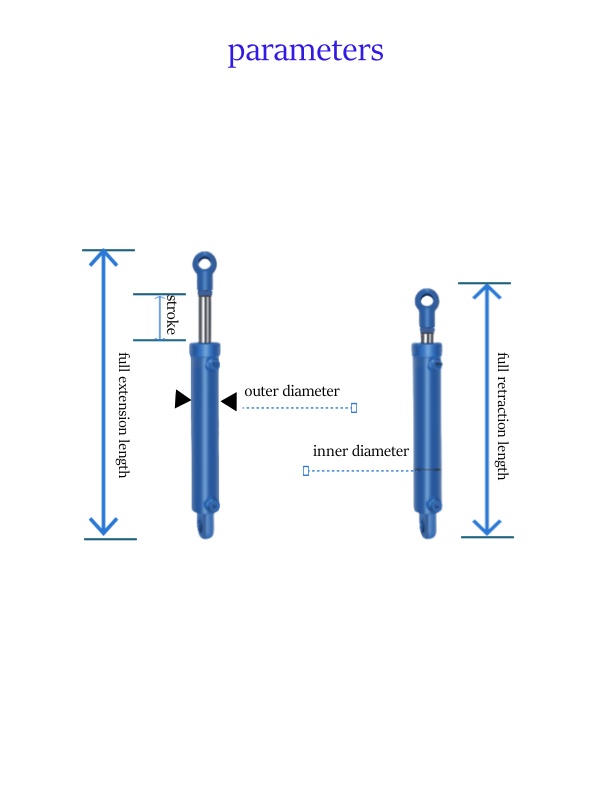

Technical Parameters
Mechanical ratings and operating limits for the Plunger Cylinder:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Pressure environment | High pressure |
| Operating temperature | Normal temperature |
| Type | Single acting |
| Structure | Plunger type |
| Material | Alloy steel |
| Package | Wooden box |
| Size | Customize |
| Brand | Huade or customer require |
| Medium | Hydraulic Oil |
| Warranty | 1 year |
| After sale service | Video technical support |
| Service | OEM&ODM |
