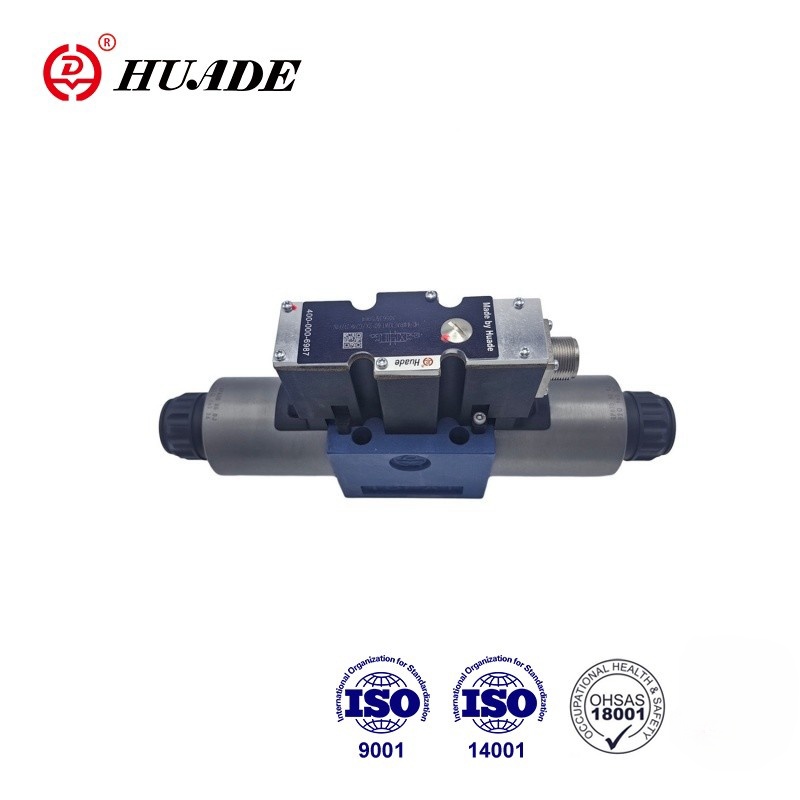

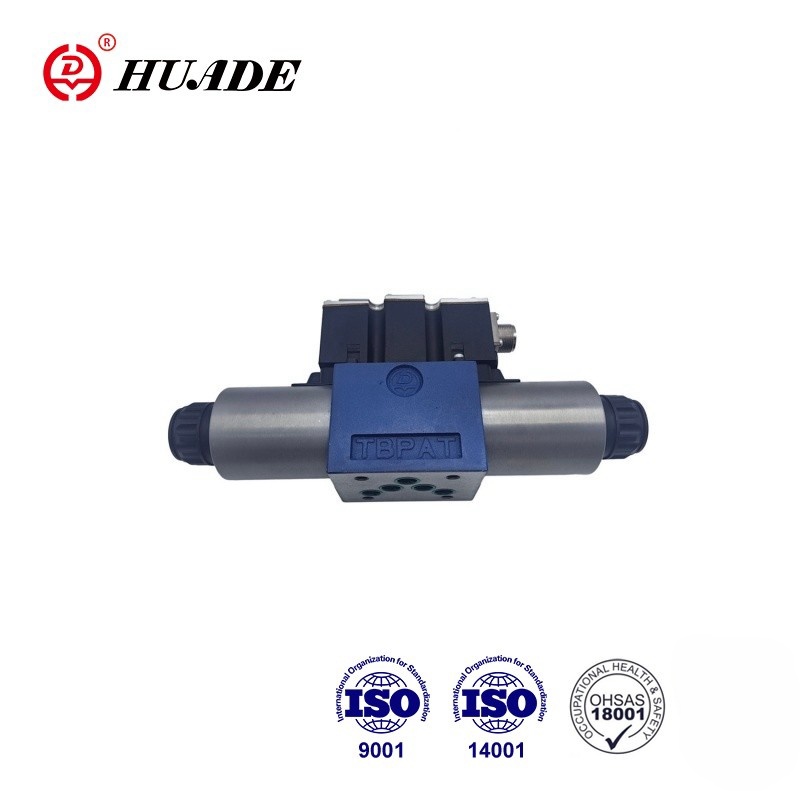

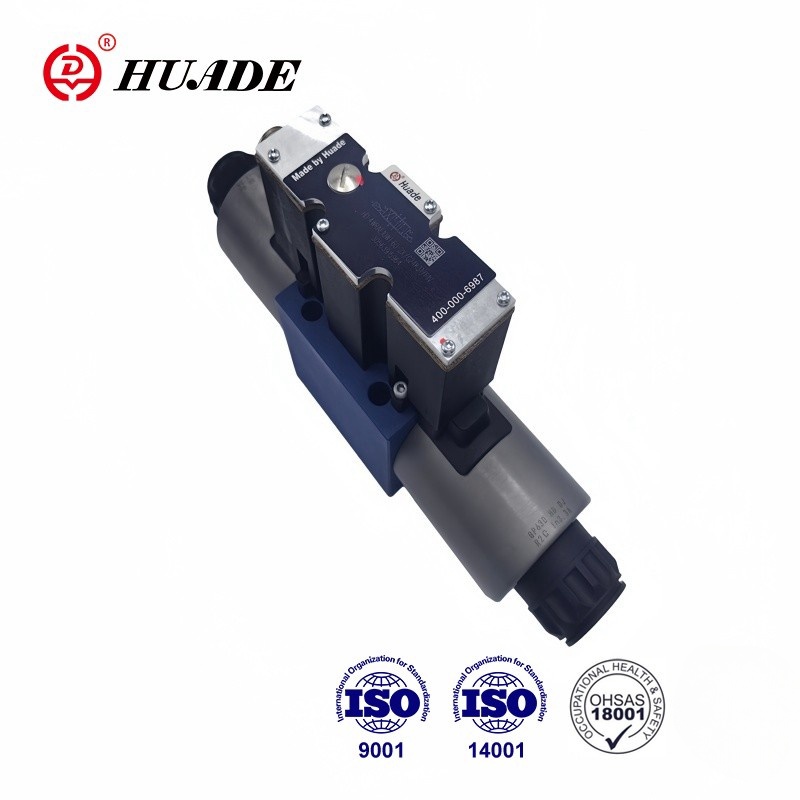

Proportional Directional Valve 4WRAE-2X

Huafilter is a professional distributor of Huade brand industrial hydraulic proportional directional valve 4WRAE-2X. Thanks to introducing Rexroth’s high technology, Huade® hydraulic proportional valves are compatible with Rexroth in terms of performance. So far, Huade's products have been exported to many countries and regions in the world. As the authorized distributor, our dedicated team offers professional pre-sales and after-sales services, with experienced engineers providing timely technical support.

The 4WRAE-2X series is a proportional directional valve with a direct-acting proportional solenoid. It is used to control the flow rate and direction of liquid flow. The product quality is reliable and the performance is stable. Huade® high-quality electromagnetic proportional directional valve series 4WRAE-2X has reliable quality and stable performance. It can replace the same series offered by Rexroth.

Product parameter of Proportional Directional Valve 4WRAE-2X

Hydraulic
Valve type HD-WRA HD-WRAE
Operating pressure (MPa) Port A,P,B 31.5 31.5
Ports T 21 21
Nominal flow qv nom at △ P=1MPa NS6 (L/min) 7、15 and 26
NS10(L/min) 30 and 60
Degree of contamination (μ m) ≤20
Hysteresis(%) ≤5
Reversal error (%) ≤1
Response sensitivity(%) ≤0.5
Pressure fluid Mineral oil or Phosphate ester
Viscosity range 20~380
Ambient temperature range (℃) -20 to +80 -20 to +50
Weight (kg) NS6 2 2.2
NS10 6.6 6.8

Electrical
Electrical,solenoid
Valve type HD-WRA HD-WRAE
Voltage type DC
Voltage controlled (V) ±10
Max.current per solenoid(A) 2.5
Solenoid coil resistance (Ω) Cold value at 20 ℃ 2
Max. warm value 3
Duty 100%
Coil temperature (℃) up to +150
Valve protection to DIN40050 IP65
Electrical, control electronics
control electronics HD-VT-VSPA2-1-1X/ integrated in the valve
Supply voltage Nominal voltage VDC 24
Lower limiting value V 21/22 19
Upper limiting value V 35
Power consumption of the amplifier I max A 1.8
Max. power impulse current A 3

Product Feature And Application of Proportional Directional Valve 4WRAE-2X series

Features:

▶ For subplate mounting

▶Direct actuated proportional valve for controlling the direction and volume of a flow

▶ Spring centred control spool

▶ Integrated control electronics, interface A1 or F1 for type 4WRAE

▶ Actuation by means of proportional solenoids with central thread and removable coil

▶ Control electronics for type 4WRA


Application:

The 4/2- and 4/3-way proportional directional valves 4WRAE-2X series are designed as direct operated components for subplate mounting. The 4WRA 6 W30-2X proportional directional valve is used to control the flow and direction of hydraulic fluid.

Section and symbol of Proportional Directional Valve type 4WRAE-2X

The 4WRAE 10 W1-60-2X proportional valves basically consist of: Housing (1) with mounting surface Control spool (2) with compression springs (3 ),Solenoids (4) with central thread,Optional integrated valve electronics (5).


HD-4WRA(E)...2X/...

With the solenoids (4) de-energised, the control spool (2) is held in the central position by compression springs (3).

Direct actuation of the control spool (2) by energising a proportional solenoid.E.g. controlling of solenoid "b" (4). The control spool (2) is moved to the left in proportion to the electrical input signal.Connection form P to A and B to T via orifice-like cross sections with progressive flow characteristics. De-energisation of the solenoid (4).The control spool(2) is returned to the central position by compression spring (3).


Structure of Proportional Directional Valve 4WRA -2X

HD-4WRA(E)...A-2X

In principle, the function of this valve version corresponds to that of the valve with 3 spool positions. However, the valves with 2 spool positions are only fitted with solenoid "a". Instead of the 2nd proportional solenoid a plug (5) is fitted for NS 6 or for NS 10 a cover(5).


Note for type 4WRA 6..-2X/...

Draining of the tank line is to be avoided. With the appropriate installation conditions, a back pressure valve is to be installed (back pressure approx.0.2MPa).

Symbol of Proportional Directional Valve 4WRA-2X
