The DBE series proportional pressure reducing valve can smoothly set the system pressure through the operation of a proportional solenoid, meeting different working requirements. The characteristics of this product include precise control, stability and reliability, and easy to maintain. Proportional pressure reducing valve DBE is available in multiple models and specifications to satisfy different needs. For example, Huade Hydraulic produces models such as the DBE10-30B/315YMDREM and DBE20-30B/200XYM proportional pressure reducing valves, which have different working pressure ranges and flow characteristics, allowing users to select according to their needs.

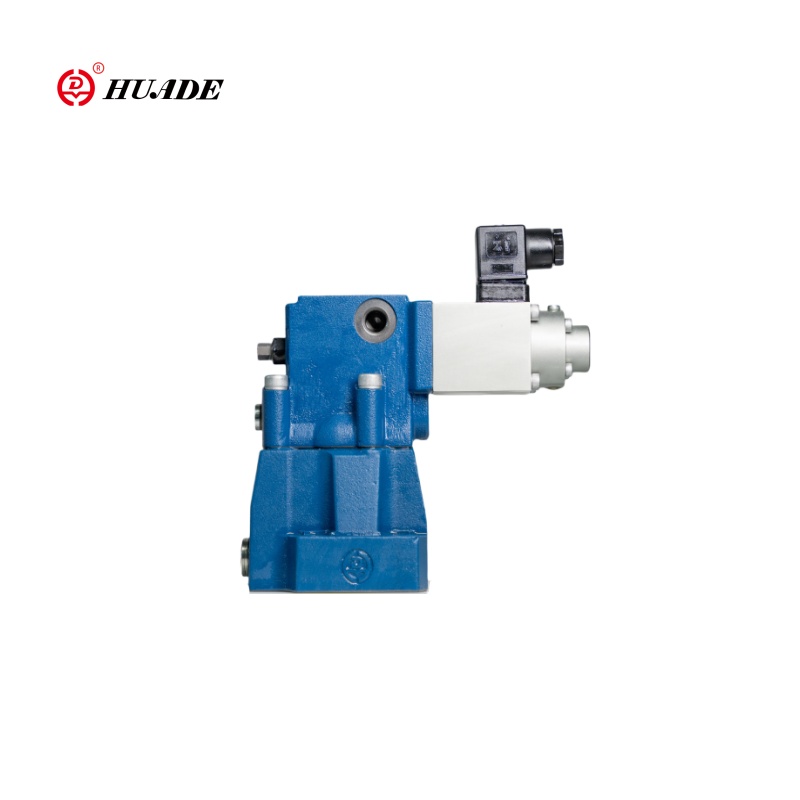

Proportional Pressure Relief Valve DBE
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PROPORTIONAL-PRESSURE-RELIEF-VALVE-DBE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:subplate mounting
• Specifications:Proportional Pressure Relief Valve DBE series,
• Applications:construction machinery, metallurgical equipment
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- For subplate mounting
- Encased in block
- Optional additional maximum pressure limitation by means of a spring loaded pilot control valve
- Valve and electronic control form one source
Industrial Applications
- The DBE series proportional pressure relief valve are widely used in various hydraulic systems that require precise pressure control, such as construction machinery, metallurgical equipment, shipbuilding, and other fields. They play a crucial role in these fields, enhancing the stability and reliability of the systems.

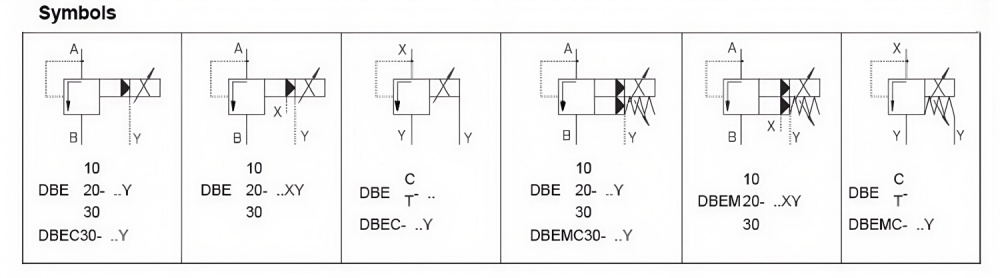

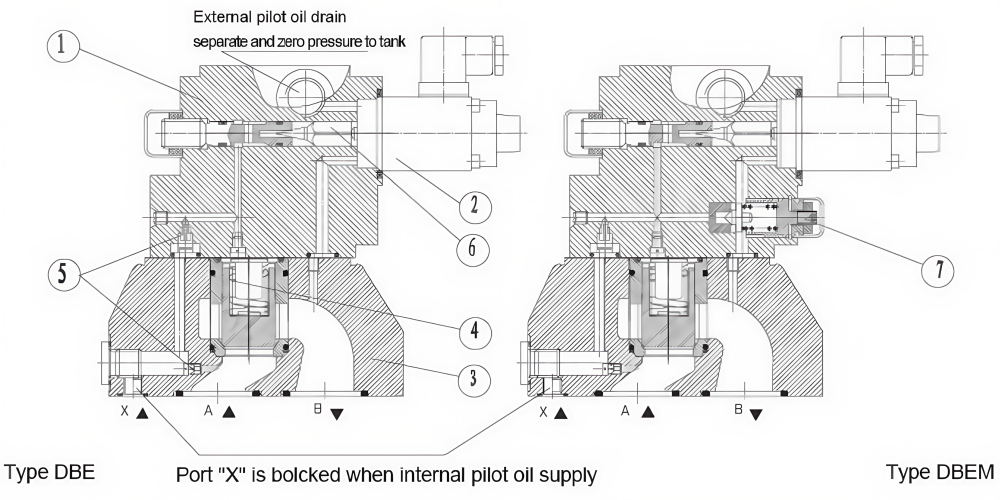

- These valves basically consist of the pilot control valve (1) with proportional solenoid (2) and the main valve (3) with main spool insert (4).
- Type DBE:
- The adjustment of the pressure is command value dependent via a proportional solenoid (2). The pressure present in port A acts on the underside of the main spool (4). At the same time this pressure acts on the spring loaded side of the main spool (4) via orificies (5). The hydraulic force acts on the pilot poppet (6). When the hydraulic force over comes the solenoid force then the pilot poppet (6) opens. Due to the fact that the pilot oil can now flow to tank via port Y, a pressure drop occurs at the main spool (4) which acts on the main spool and lifts it against the force of the return spring . The connection from A to B is opened and there is no longer any increase in pressure
- Structure of Proportional Pressure Relief Valve DBE
Technical Parameters
Mechanical ratings and operating limits for the Proportional Pressure Relief Valve DBE:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Hydraulic data | Hydraulic data |
| Max.operating pressure Ports A. B and X (MPa) - 31.5 | 31.5 |
| Return pressure (MPa) - Port Y, separate and at zero pressure to tank | Port Y, separate and at zero pressure to tank |
| Max. settable pressure (MPa) - 5. 10. 20. 31.5 same as pressure stage | 5. 10. 20. 31.5 same as pressure stage |
| Min. settable pressure (MPa) - see characteristic curves | see characteristic curves |
| Max. pressure safety (MPa) - settable pressure | settable pressure |
| Max. pressure safety (MPa) - 5 - 10 - 20 | 31.5 |
| Max. pressure safety (MPa) - 1to 62 - 1to 122 - 1 to 222 | 1to 342 |
| Pilot flow (L/min) - 0.7 to 2 | 0.7 to 2 |
| Linearity (%) - ±3.5 | ±3.5 |
| Repeatability (%) - <±2 | <±2 |
| Typical variation (%) - < ±2 Max. pressure | < ±2 Max. pressure |
| Hysteresis (%) - With surge ± 1.5 of Max.pressure.Without surge ± 4.5 of Max.pressure | With surge ± 1.5 of Max.pressure.Without surge ± 4.5 of Max.pressure |
| Switching time - 30 to 150 | 30 to 150 |
| Pressure fluid - Mineral oil(for NBR seal), Phosphate ester (for FPM seal) | Mineral oil(for NBR seal), Phosphate ester (for FPM seal) |
| Viscosity range (mm2/s) - 2.8 to 380 | 2.8 to 380 |
| Pressure fluid temperature range(℃) - -20 to+70 | -20 to+70 |
| Degree of contamination(μm) - ≤20(recommendation 10) | ≤20(recommendation 10) |
