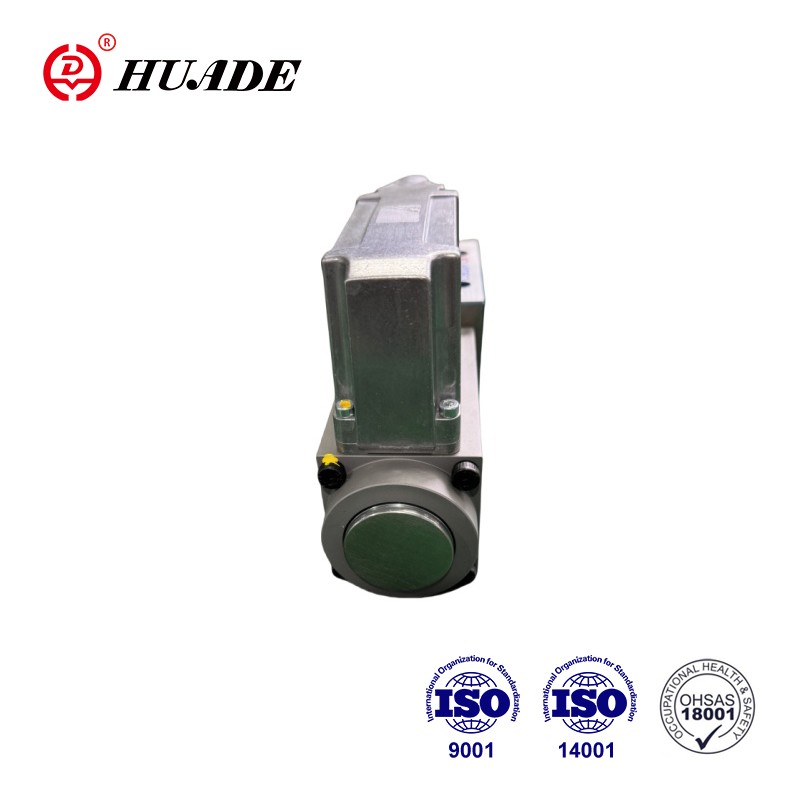

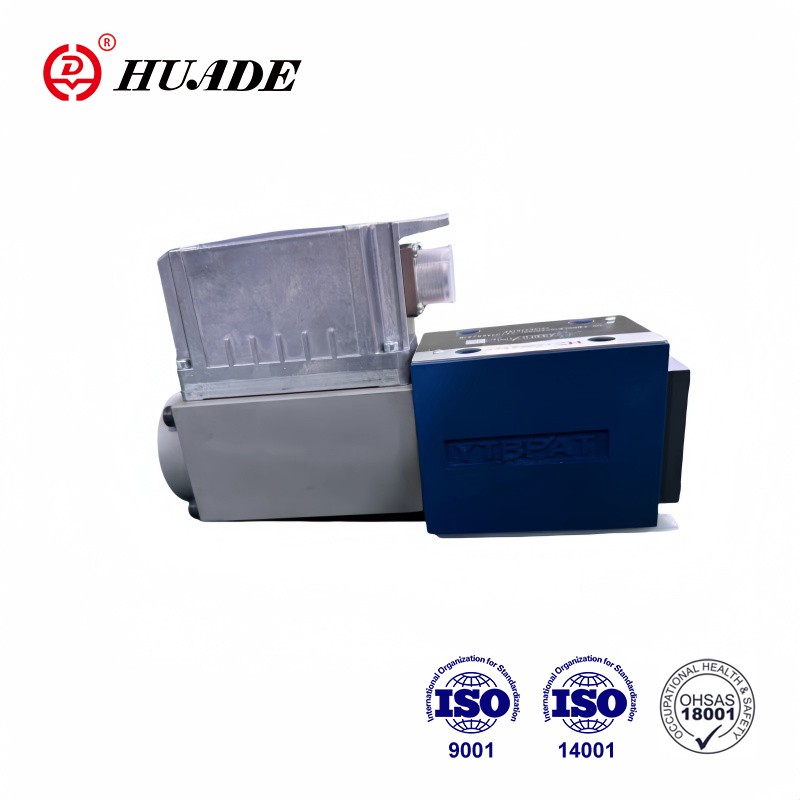

Proportional Servo Valve 4WRPEH-2X
  • Proportional Servo Valve 4WRPEH-2XProportional Servo Valve 4WRPEH-2X
  • Proportional Servo Valve 4WRPEH-2XProportional Servo Valve 4WRPEH-2X
  • Proportional Servo Valve 4WRPEH-2XProportional Servo Valve 4WRPEH-2X

Proportional Servo Valve 4WRPEH-2X

Huafilter handles the export of Huade brand hydraulic proportional servo valve 4WRPEH-2X. We started our oversea business after becoming the approved distributor of Huade Hydraulic in 2023. Huade Hydraulic was established in 1979, through technology introduction and independent research and development, its 4WRPEH-2X proportional servo valves have advanced performance and cheap price. Our aim is to provide customers with cost-effective proportional valves.

This valve 4WRPEH-2X is a direct-acting servo proportional valve with integrated digital axis controller and fieldbus interface.There are two size, namely size 6 and size 10. 4WRPEH-2X is subplate mounted. The integrated electronic components of 4WRPEH-2X compare specified control values with actual position values. Huade’s proportional servo valve has won great reputation among its customers due to high performance and lower price.

Product parameter of Proportional Servo Valve 4WRPEH-2X

Technical data (For more details please see the data sheet!)
General NG 6 NG 10
Insta1lation position Any, it is recommended to prioritize horizontal installation
Porting pattern IS0 4401-03-02-0-05
Working temperature range (℃) -20...+80
Ambient temperature range (℃) -20...+60
Weight (kg) 3 7.8
Hydraulic (measured using HLP46℃=40℃± 5℃)
Hydraulic fluid Complies with DIN51524... 535 standards and can provide other media upon request
Viscosity range Recommended (mm2/s) 20...800
Maximum admissible(mm2/s) 10...800
Hydraulic oil temperature rang (℃) -20...+60
Maximum allowable contamination level of hydraulic oil -c1ean1iness 1evel in accordance with IS04406 (c) Class 18/16/13
Flow direction Complex Symbols

Electrical
Cyclic duration factor % 100(Continuous operation)
Protection class according to EN 60529 IP65 (if suitable and correctly mounted mating connectors are used)
Supply voltage Nominal value VDC 24
Minimum VDC 21
Maximum VDC 36
Maximum residual ripple Vss 2 (The power supply voltage is 23v At 34V)
Consumption NG 6 W MAX 40
NG 10 W MAX 60

Product Feature And Application of Proportional Servo Valve 4WRPEH-2X

Features:

▶Direct controlled contro1 valves NG6 and NG10 with Servo quality control piston and sleeve

▶one-sided operation, 4/4 fail-safe position in switched off

Condition:

-- Integrated digital axis control functionality (IAC-R) for:

● Volume flow control

● Position control

● Pressure control

● p/Q function

● Release position/pressure and position/

Power regulations:

●NC functionality (stand-alone operation possible)

--Analog and digital interfaces for target and actual values

● 4 x analog sensors (+/-10 V or 4..20 mA) or

● 1 x length measuring system (1Vss or SSI) and 2 analog

Sensors:

--setpoint preset/actual value feedback analog (current or voltage) or via fieldbus

-- Analog/digital inputs/outputs configurable

-- Optional CANopen, MODBUS, EtherNET/IP, EtherCAT, and PROFINET and other bus protocols can be used with mainstream PLCs, controllers, orUpper computer communication


Application:

The function of proportional servo valve 4WRPEH-2X is that integrated electronic components compare specified control values with actual position values.

Section and symbol of Proportional Directional Valve 4WRKE-3X

Structure:

Valves mainly include:

▷Direct controlled control valve with control piston and Servo quality sleeve(1)

Proportional electromagnet with valve core displacement feedback (2)

▷Integrated digital axis controller with analog and digital sensor interfaces and fieldbus connection (3)

Valve function:

In the case of control deviation, the coil is activated. Due to changes in the magnetic force of the coil . The contro1 valve core will resist the spring for adjustment. Valve spool stroke and over current cross-sectional area. Directly proportional to the instruction signal. When the preset control value is 0, the electronic element. Adjust the control valve core to resist spring force and move it to the center position. In an inactive state, The spring drives the valve core to put

it in a fail safe position.

--The motion axis controller implements the following control functions

•Volume flow control

•Position control

•Pressure/force control

•Release position/pressure and position/force control

-- The command value can be input through the analog interface (X1) or Input via bus interface X4

--The actual value can be read through the analog interface (X1) or obtained through bus interface X4

-- Control parameters can be set through the bus

--Fault diagnosis

Integrated electronic components enable control in the following fault conditions, the coil loses power and the control valve core returns to the fail safe position.

•Power Failure

•Valve core displacement sensor open circuit fault

•Communication Failure

•4-20mA command signal open circuit fault

•External displacement sensor malfunction

•External displacement sensor malfunction

Package of Proportional Directional Valve 4WRKE-3X
