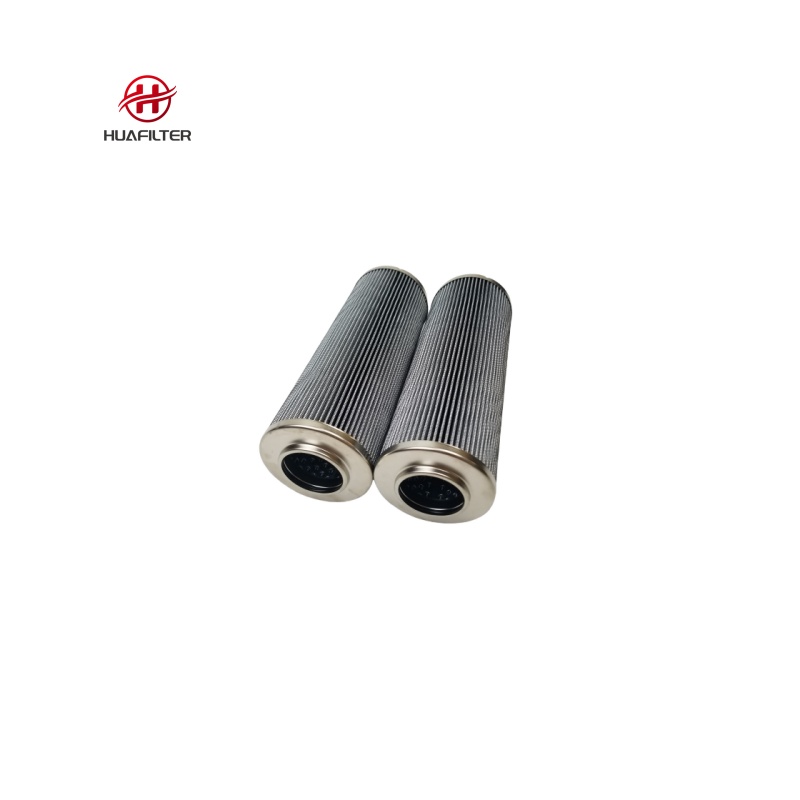

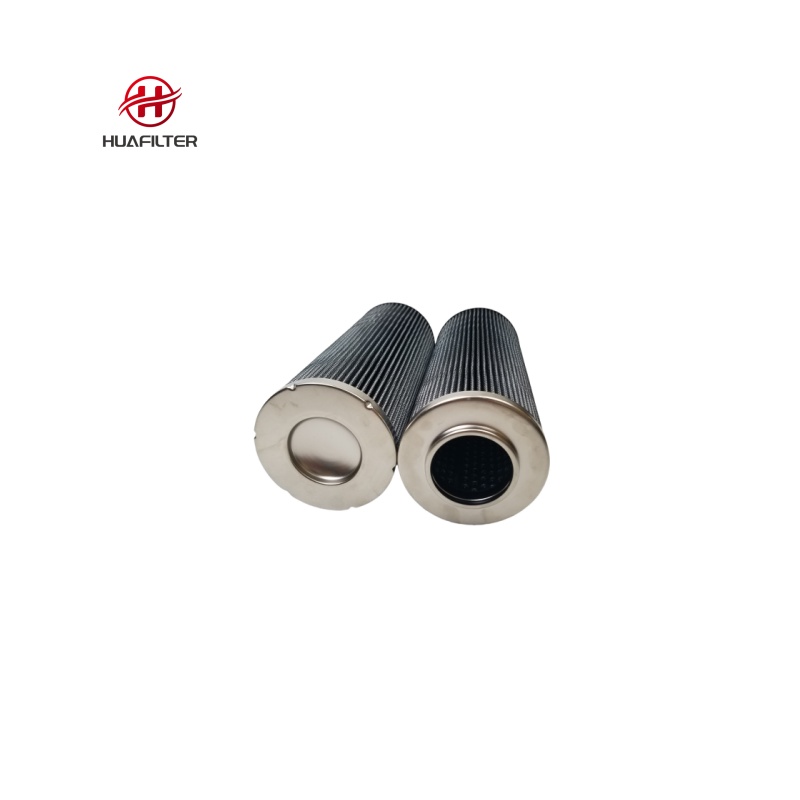

Replacement for Hydac 0500D010BN4HC filter elements are made of single-layer or multi-layer metal mesh and filter materials. This pressure element has high bearing capacity and long service life. The product has excellent performance. It is convenient to install and use.
Replacement for Hydac 0500D010BN4HC
TECHNICAL REPLACEMENT NOTICE
This replacement filter element is a 100% direct drop-in replacement for REPLACEMENT-FOR-HYDAC-0500D010BN4HC. Dimensions, filter media materials, and micron ratings are identical or superior to OEM specifications, designed for critical hydraulic fluid filtration.
• Product features:High concentricity
• Specifications:Replacement for Hydac 0500D010BN4HC series,
• Applications:industrial equipment
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Compatible Replacement
Accurate dimensions & performance
✓
Direct Fit Element
Direct brand interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Made of single or multi-layer metal mesh and filter material
- High concentricity
- High pressure resistance
- Good straightness
- Stainless steel material
- No burrs
- Long service life
Industrial Applications
- Replacement for Hydac0500D010BN4HC pressure elements are used in various scenarios where industrial equipment needs to be filtered, such as the petroleum industry, chemical industry, metallurgical industry, power industry, pharmaceutical industry and food processing field.
Technical Parameters
Mechanical ratings and operating limits for the Replacement for Hydac 0500D010BN4HC:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Technical Data | Technical Data |
| Efficiency 1 | 10μ@β200 |
| Efficiency 2 | 12μ@β1000 |
| Style | Pressure filter |
| Out Diameter | 90.5mm |
| Inner Diameter | 48.2mm |
| Length | 253.0mm |
| Media Type | Glass Fiber |
| Flow Direction | Out-in |
| Collapse Pressure | 20 bar |
| Seal | Nitrile |
| Temperature Range | -30~+100℃ |
