The working principle of the replacement for Hydac 2600R050BN3HC oil filter element is mainly based on impurity filtration, which aims to ensure the cleanliness of the lubricating oil. The function of this filter element is to lubricate and protect components, thereby extending the life of the engine. Our filter elements can be divided into coarse filters and fine filters according to the different filtering accuracy. Coarse filters are mainly used to remove large particles of impurities, and fine filters are used to remove smaller particles, even up to the nanometer level.

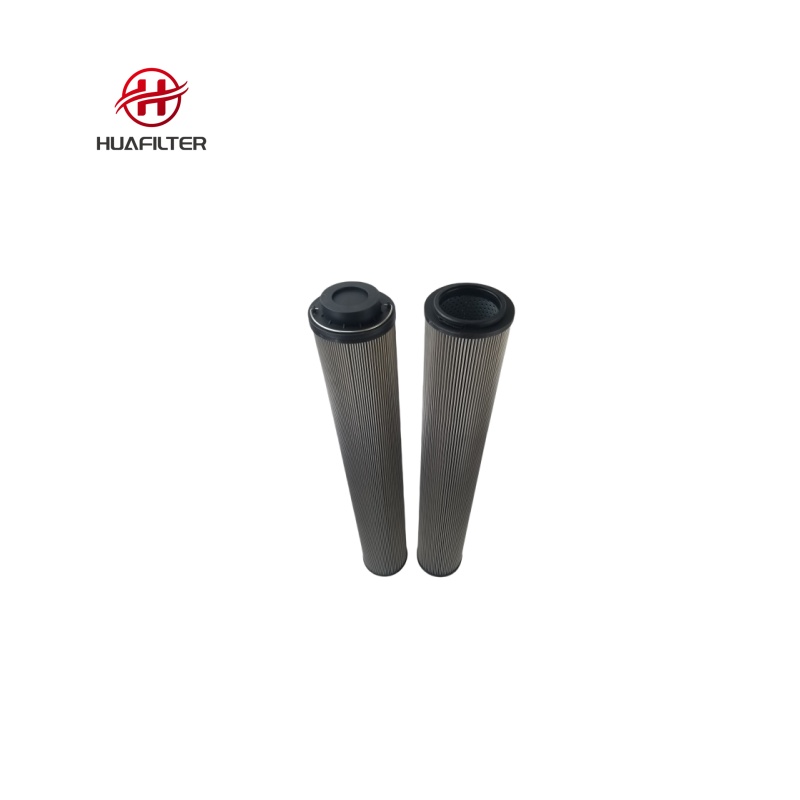

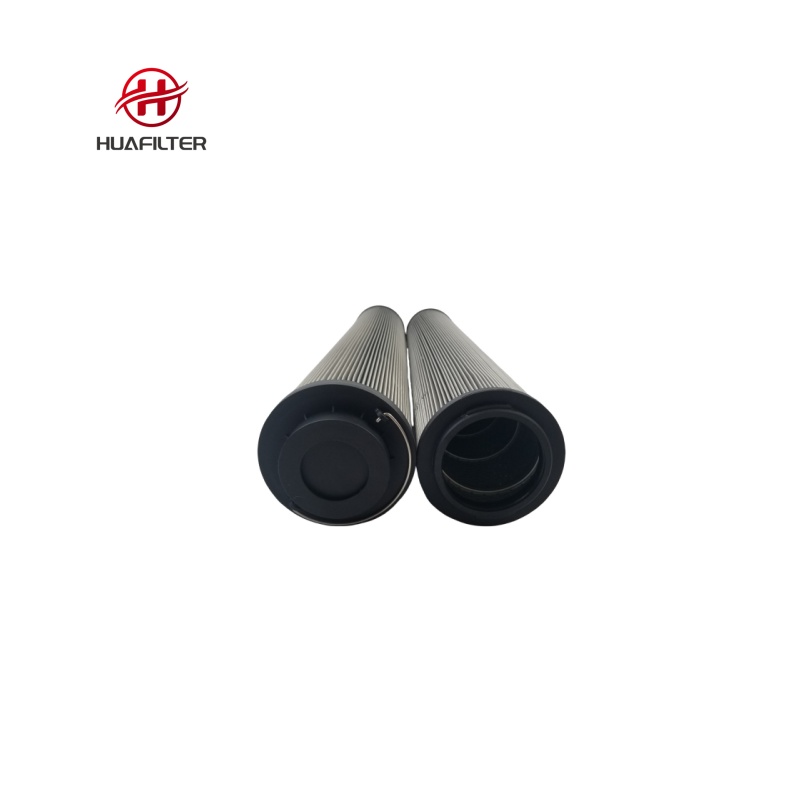

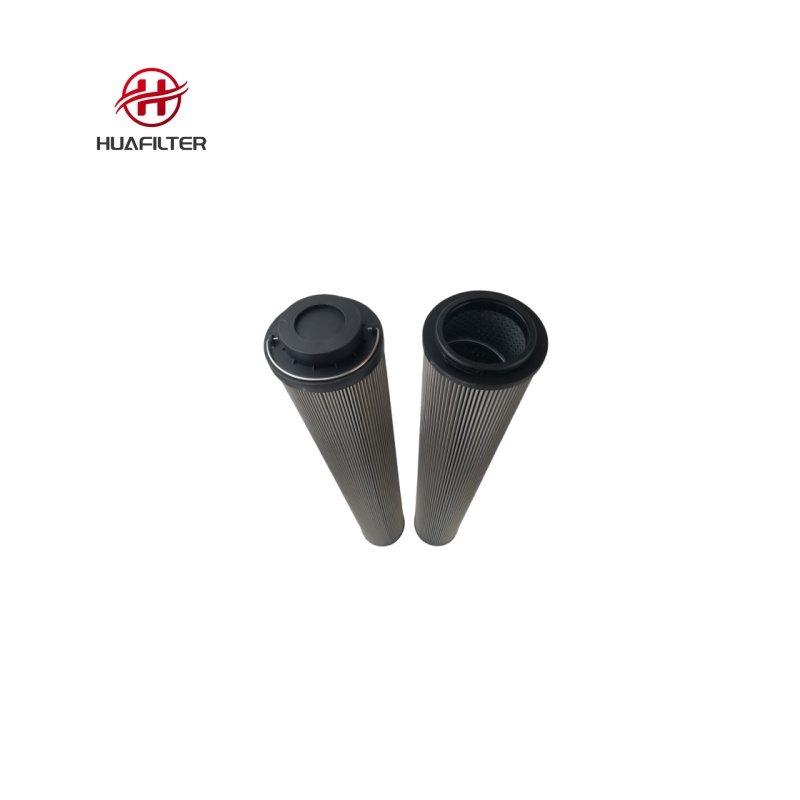

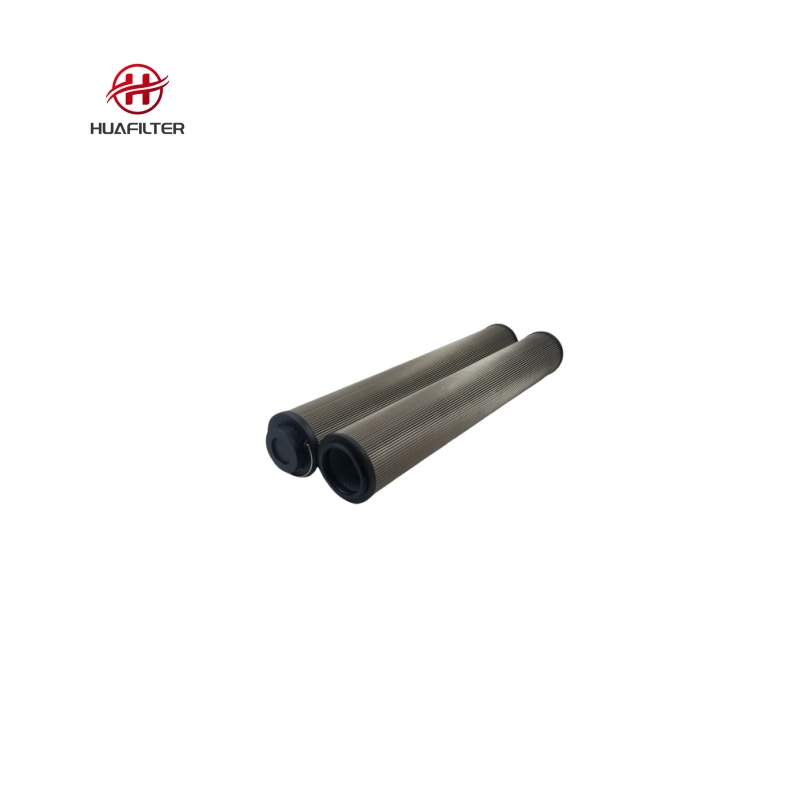

Replacement for Hydac 2600R005BN3HC
TECHNICAL REPLACEMENT NOTICE
This replacement filter element is a 100% direct drop-in replacement for REPLACEMENT-FOR-HYDAC-2600R005BN3HC. Dimensions, filter media materials, and micron ratings are identical or superior to OEM specifications, designed for critical hydraulic fluid filtration.
• Product features:small size, easy to install
• Specifications:Replacement for Hydac 2600R005BN3HC series,
• Applications:lubrication systems
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Compatible Replacement
Accurate dimensions & performance
✓
Direct Fit Element
Direct brand interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Made of high-quality filter material, it has the characteristics of high filtration efficiency and long service life.
- Compact structure, small size, easy to install and maintain.
- Suitable for a variety of working media, such as hydraulic oil, phosphate ester hydraulic oil, emulsion, etc.
Industrial Applications
- Replacement for Hydac 2600R005BN3HC return line elements are used in various hydraulic systems to filter impurities in hydraulic oil to ensure the normal operation of the system. They can also be used in lubrication systems to filter particles and pollutants in lubricating oil to extend the service life of the equipment.
Technical Parameters
Mechanical ratings and operating limits for the Replacement for Hydac 2600R005BN3HC:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Technical Data | Technical Data |
| Efficiency 1 | 5μ@β200 |
| Efficiency 2 | 7μ@β1000 |
| Style | Return line element |
| Out Diameter | 143.5mm |
| Inner Diameter | 96.5mm |
| Length | 921.0mm |
| Media Type | Glass Fiber |
| Flow Direction | Out-in |
| Collapse Pressure | 20 bar |
| Seal | Nitrile |
| Temperature Range | -30~+100℃ |
