The advantages of the throttle valve are simple structure, low price and easy adjustment. Through long-term cooperation with Rexroth, Huade Hydraulic has absorbed advanced technology. After long-term development, its products are compatible with first-line brands in terms of performance and quality. The price of this MG throttle valve is more reasonable.
|
Technical data (for applications outside these parameters, please consult us!） |
|||||||
|
Size |
6 |
8 |
10 |
15 |
20 |
25 |
30 |
|
Maximum flow (L/min) |
15 |
30 |
50 |
140 |
200 |
300 |
400 |
|
Pressure (MPa) |
up to 31.5 |
||||||
|
Cracking pressure (MPa) |
0.05 (Type MK) |
||||||
|
Pressure fluid |
Mineral oil or Phosphate ester |
||||||
|
Viscosity range(mm ²/s) |
10 to 800 |
||||||
|
Pressure fluid temperature range(℃) |
-30 to+80 |
||||||
Features:
▶ Suitable for direct in-line mounting
▶ Pressure and viscosity dependent
Application:
This valve is a tubular throttle valve directly installed on the pipeline. The throttle port of the valve adopts an axial triangular groove structure and has 7 specifications and two connection threads. It is used to control the speed of the actuator.
Valve types MG is pressure and viscosity dependent throttle valve.

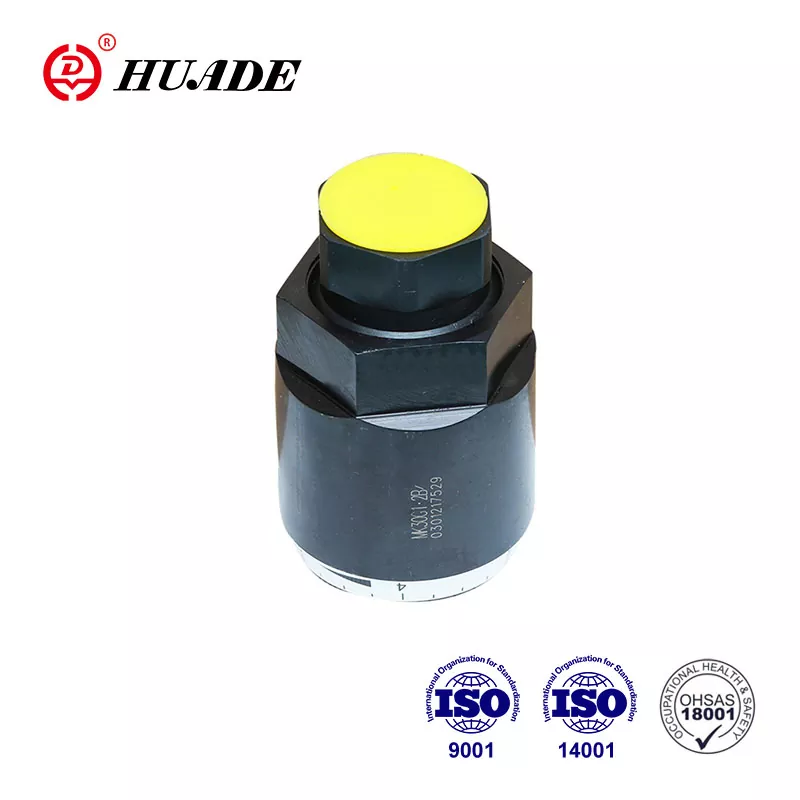

Type MG (throttle valve)
This valve throttles in both flow directions. Fluid flows through side drilling to the throttling point. This is formed between the housing (2) and the adjustable sleeve (1). The throttle cross-section may be steplessly varied by rotating the adjustable sleeve (1).
structure of type MG throttle valve
Symbols of type MG throttle valve
