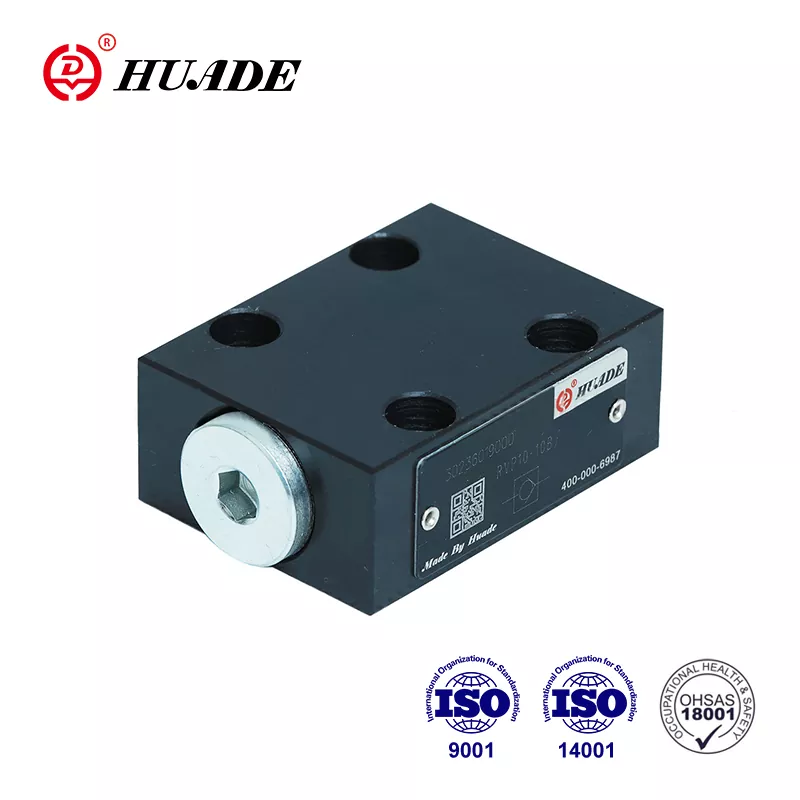

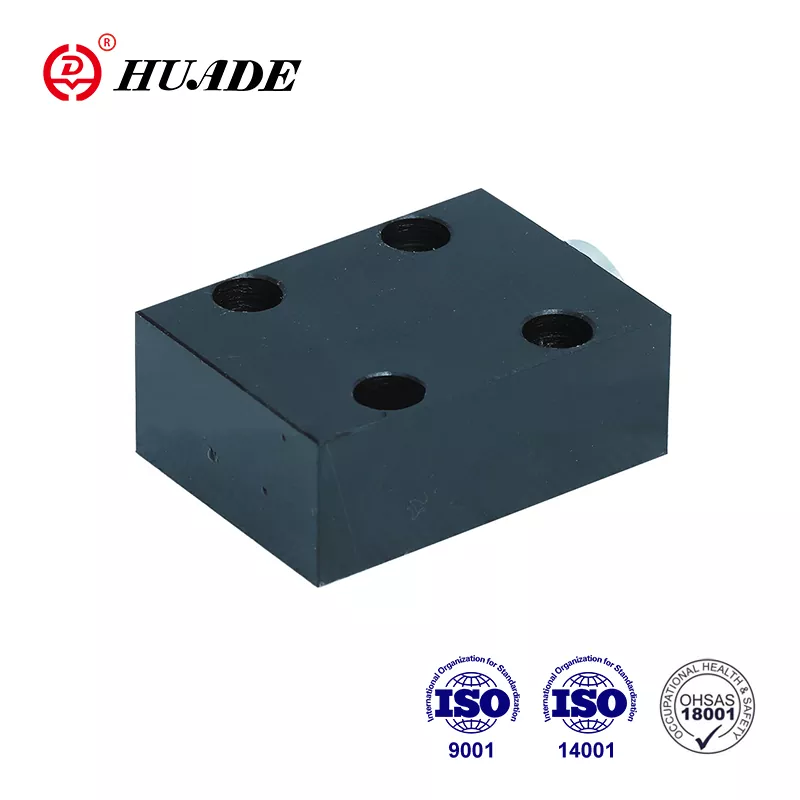

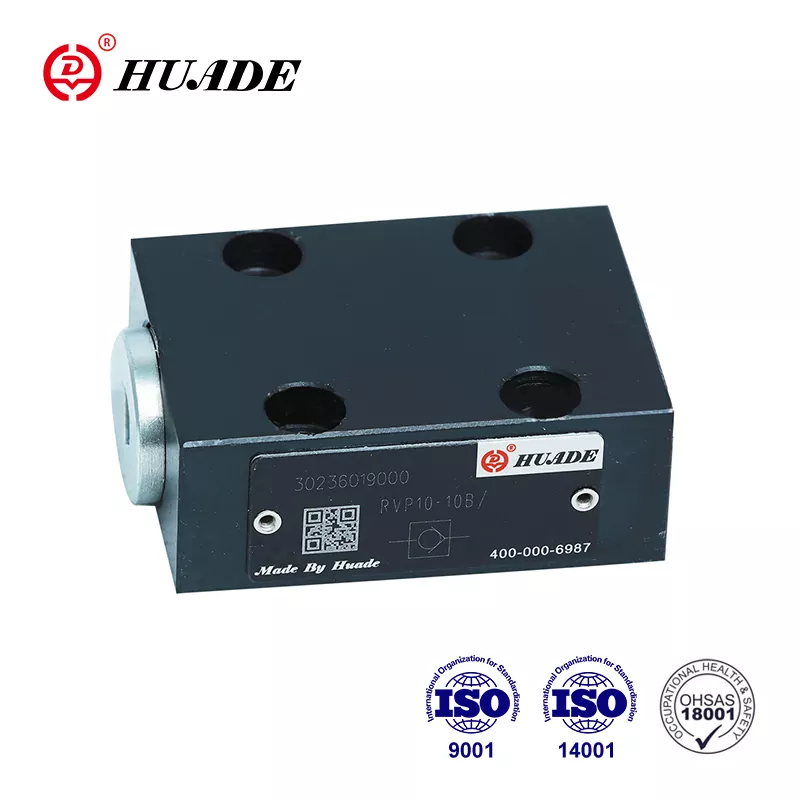

Strategic cooperation between the Chinese and German governments in 1979, Huade has incorporated cutting-edge technology from Rexroth. Huade® check valve RVP 12 is compatible with Rexroth’s RVP 12. Huade’s commodity has come up to the international standards, namely ISO9001,ISO14001, and OH SAS18001. The factory puts great stress on the quality with a good inspection system to ensure excellent quality of all check valve RVP 12 before leaving the factory. Huade’s products can be widely used in military industry and other fields in China. This is a reliable brand in China.
|
Technical data |
|||||||||
|
Size |
6 |
8 |
10 |
12 |
16 |
20 |
25 |
30 |
40 |
|
Operating pressure, max (MPa) |
31.5 |
||||||||
|
Opening pressure (MPa) |
0.05 |
||||||||
|
Pressure fluid |
mineral oils or phosphate ester |
||||||||
|
Pressure fluid temperature range（℃） |
-30～+80 |
||||||||
|
Viscosity range (mm2/s) |
2.8~500 |
||||||||
|
Fixing position |
optional |
||||||||
|
Weight(Kg) |
0.26 |
0.50 |
0.80 |
1.10 |
2.25 |
3.90 |
6.70 |
11.00 |
17.00 |
Features:
▶ Subplate connection
▶ Leakage-free closure in one direction
Application:
The check valve RVP 12 is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
The check valve RVP 12 is a poppet valve structure with small pressure loss. Structure diagram is as shown below. It has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction.It basically comprises of the housing (1), poppet (2) compression spring (3),and spring seat(4). The stroke of the poppet (2), which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring (3) supports the closing movement. Furthermore the compression spring(3) holds the poppet (2) in the closed position even when there is no flow through the valve.
Symbol
Structure diagram
①Housing ②Poppet ③Spring ④Spring seat
1. The fluid must be filtered. Minimum filter fineness is 20 ㎛.
2. The tank must be sealing up and an air filter must be installed on air entrance
3. Products without subplate when leaving factory, if need them, please ordering specially.
4. Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book
5. Roughness of surface linked with the valve is required to 0.8.
6. Surface finish of mating piece is required to 0.01/100mm.
