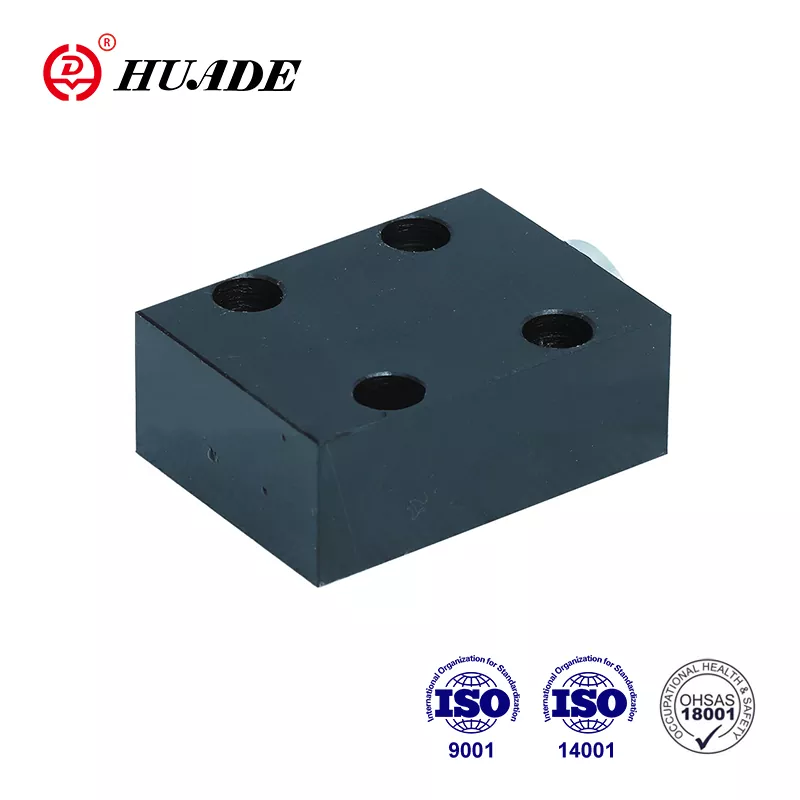

As China's leading manufacturer of hydraulic transmission and control technology, Huade® top quality check valve RVP 8 can completely replace RVP 8 series offered by Rexroth. The price is more reasonable. The factory has passed ISO9001,ISO14001, and OH SAS18001. Huade® hydraulic directional check valves have superior performance and are already popular among Chinese consumers. Huade® hydraulic valves are widely used in engineering and construction machinery, metallurgy, machine tools, etc. All products will undergo strict testing before leaving the factory. We guarantee the quality of each check valve for one year. During the guarantee period, it is free to repair.
|
Technical data |
|||||||||
|
Size |
6 |
8 |
10 |
12 |
16 |
20 |
25 |
30 |
40 |
|
Operating pressure, max (MPa) |
31.5 |
||||||||
|
Opening pressure (MPa) |
0.05 |
||||||||
|
Pressure fluid |
mineral oils or phosphate ester |
||||||||
|
Pressure fluid temperature range（℃） |
-30～+80 |
||||||||
|
Viscosity range (mm2/s) |
2.8~500 |
||||||||
|
Fixing position |
optional |
||||||||
|
Weight(Kg) |
0.26 |
0.50 |
0.80 |
1.10 |
2.25 |
3.90 |
6.70 |
11.00 |
17.00 |
Features:
▶ Subplate connection
▶ Leakage-free closure in one direction
Application:
The check valve RVP 8 is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
The check valve RVP 8 has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction.It basically comprises of the housing (1), poppet (2) compression spring (3),and spring seat(4). The stroke of the poppet (2), which is guided on its
outside diameter,is limited by a mechanical stop. The built-in compression spring (3) supports the closing movement. Furthermore the compression spring(3) holds the poppet (2) in the closed position even when there is no flow through the valve.
Symbol
Structure diagram
①Housing ②Poppet ③Spring ④Spring seat
1. The fluid must be filtered. Minimum filter fineness is 20 ㎛.
2. The tank must be sealing up and an air filter must be installed on air entrance
3. Products without subplate when leaving factory, if need them, please ordering specially.
4. Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book
5. Roughness of surface linked with the valve is required to 0.8/
6. Surface finish of mating piece is required to 0.01/100mm.
