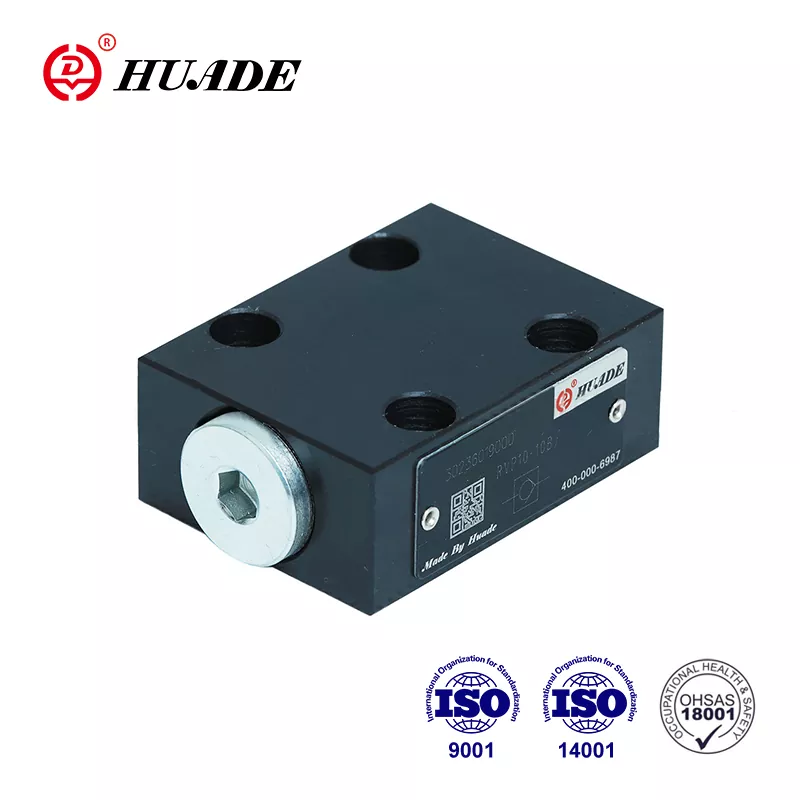

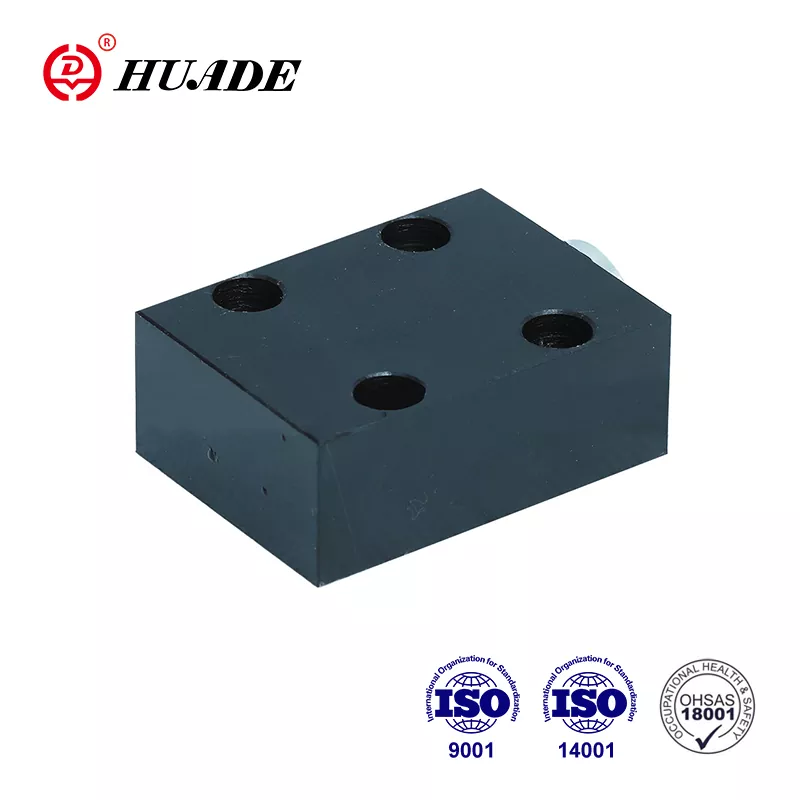

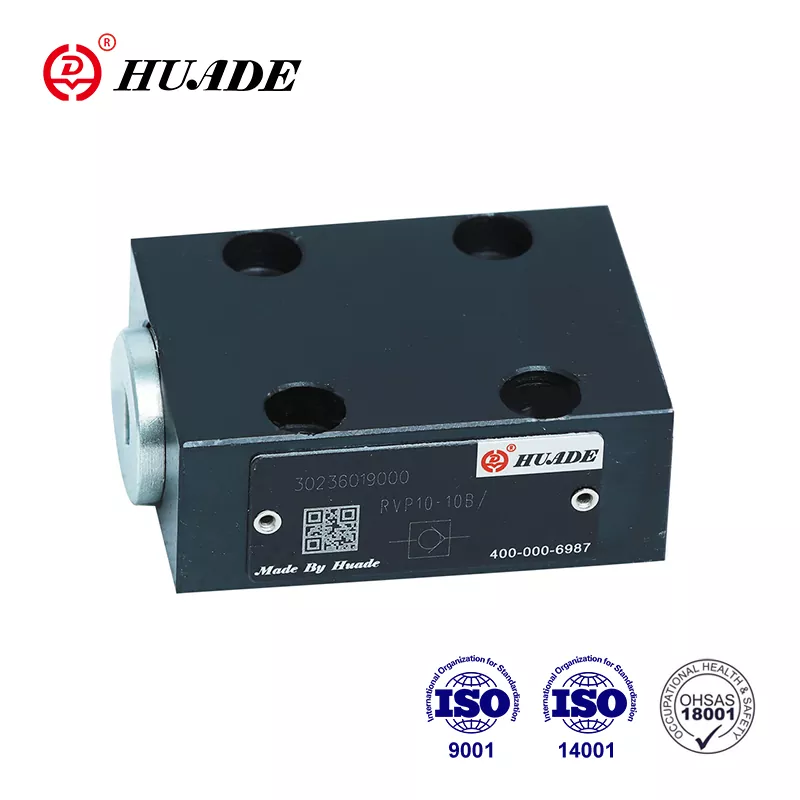

As China's leading manufacturer of hydraulic transmission and control technology, Huade has Cooperation with Rexroth for more than 7 years from 1979. Huade® check valve RVP 16 can repace Rexroth’s RVP 16 completely. Huade’s commodity meets the international standards, namely ISO9001,ISO14001, and OH SAS18001. The factory has a good inspection system to ensure excellent quality of all products before leaving the factory. Huade® check valve RVP 16 can be widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields. This is a well-known national brand in China.
|
Technical data |
|||||||||
|
Size |
6 |
8 |
10 |
12 |
16 |
20 |
25 |
30 |
40 |
|
Operating pressure, max (MPa) |
31.5 |
||||||||
|
Opening pressure (MPa) |
0.05 |
||||||||
|
Pressure fluid |
mineral oils or phosphate ester |
||||||||
|
Pressure fluid temperature range（℃） |
-30～+80 |
||||||||
|
Viscosity range (mm2/s) |
2.8~500 |
||||||||
|
Fixing position |
optional |
||||||||
|
Weight(Kg) |
0.26 |
0.50 |
0.80 |
1.10 |
2.25 |
3.90 |
6.70 |
11.00 |
17.00 |
Features:
▶ Subplate connection
▶ Leakage-free closure in one direction
Application:
The check valve RVP 16 is mainly used at the outlet of the pump as a back pressure valve and bypass valve.
It is a poppet valve structure with small pressure loss. Symbol and structure diagram are as illustrated below. This check valve RVP 16 has the task of, preferably closing a flow leak free in one direction and to permit free flow in the opposite direction.It basically comprises of the housing (1), poppet (2) compression spring (3),and spring seat(4). The stroke of the poppet (2), which is guided on its outside diameter, is limited by a mechanical stop. The built-in compression spring (3) supports the closing movement. Furthermore the compression spring(3) holds the poppet (2) in the closed position even when there is no flow through the valve.
Symbol
Structure diagram
①Housing ②Poppet ③Spring ④Spring seat
1. The fluid must be filtered. Minimum filter fineness is 20 ㎛.
2. The tank must be sealing up and an air filter must be installed on air entrance
3. Products without subplate when leaving factory, if need them, please ordering specially.
4. Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book
5. Roughness of surface linked with the valve is required to 0.8.
6. Surface finish of mating piece is required to 0.01/100mm.
