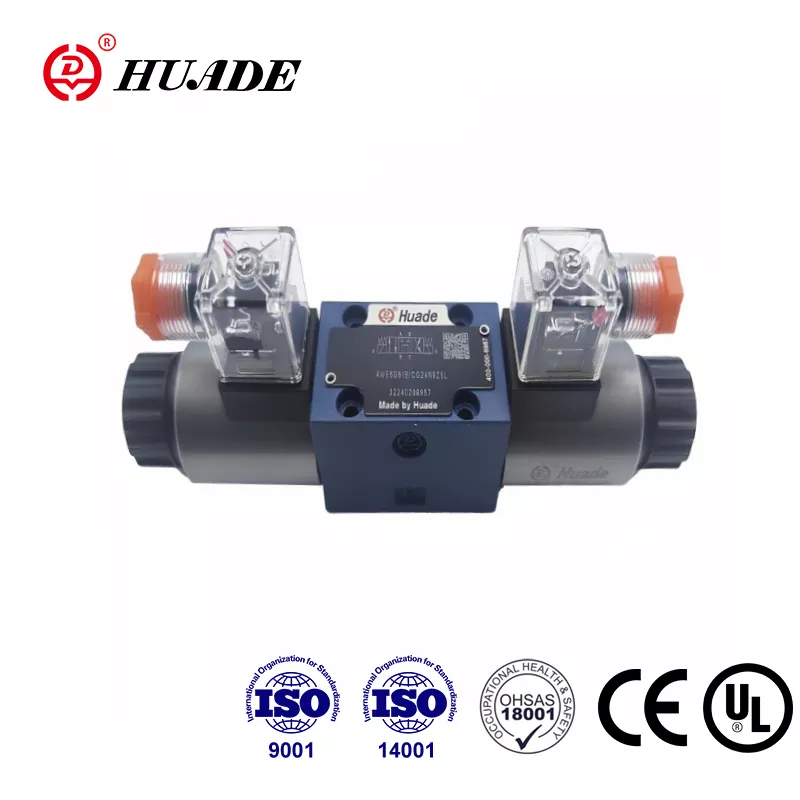

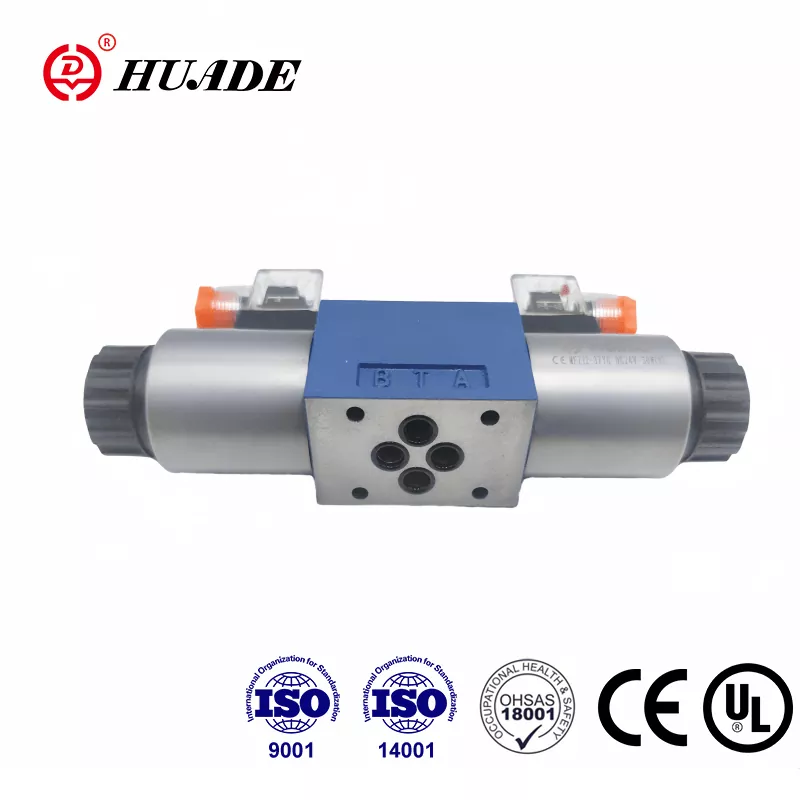

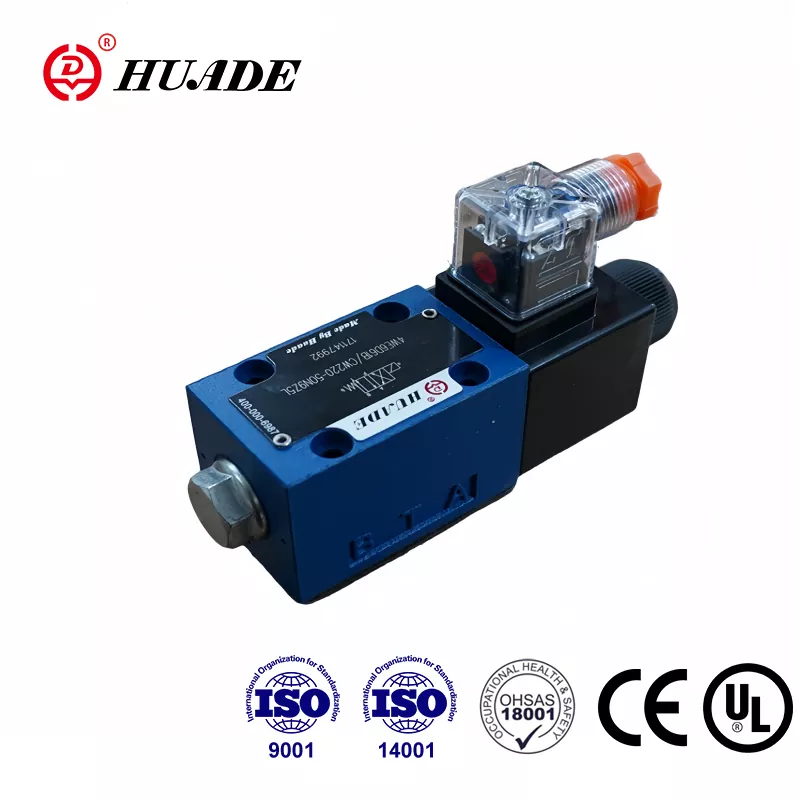

Established through a strategic partnership between the Chinese and German governments in 1979, Huade has been an outstanding brand in Chinese hydraulic industry. Huade® directional spool valve type 4WE 6 E is an affordable alternative to the same model offered by Rexroth. Huade puts great stress on the quality to ensure that every directional valve has superior performance. The solenoid directional valve series has passed CE certification. This type directional valve sells well. The valves will be packed in standard cartons with anti-counterfeiting labels. The factory has passed the three major system certifications of quality management, environmental management, and occupational health and safety management. Huade® hydraulic valves are widely used in engineering and construction machinery, metallurgy, machine tools, environmental protection, shipbuilding, aerospace, rail transit, petroleum and petrochemical, military industry and other fields.
|
Hydraulic |
|||
|
Max.operating pressure Ports A,B,P (㎫) |
up to 35.0 |
||
|
Port T (㎫) |
21(-);16(～) |
||
|
with symbols A and B, port T must be used as a drain port |
|||
|
Max.flow (L/min) |
80(-);60(～) |
||
|
Pressure fluid |
Mineral Oils or Phosphate Ester |
||
|
Viscosity range (mm2/s) |
2.8~500 |
||
|
Pressure fluid temperature range （℃） |
-30～+80 |
||
|
Degree of contamination |
Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. |
||
|
Electrical |
|||
|
Voltage type |
DC |
AC 50/60Hz |
|
|
Available voltages (V) |
12, 24, 42, 60, 96 |
42, 110, 120, 230 |
|
|
110, 180, 205, 220 |
50/60Hz |
||
|
Power consumption (W) |
30 |
||
|
Holding power (VA) |
- |
50 |
|
|
Switch-on power (VA) |
- |
220 |
|
|
Duty |
continuous |
||
|
Switching time to IS0 6403 |
ON (ms) |
25 to 45 |
10 to 20 |
|
OFF (ms) |
10 to 25 |
15 to 40 |
|
|
Protection to DIN |
IP 65 |
||
|
Switching frequency (cycles/h) |
up to 15000 |
up to 7200 |
|
|
With electrical connections the protective conductor (PE) |
|||
Features:
▶ Direct solenoid actuated directional spool valve high performance version
▶ Wet pin DC or AC solenoids with removable coil
▶ Solenoid coil can be rotated through 90°
▶ It is not necessary to open the pressure tight chamber when changing the coil
▶ Electrical connections either as individual or central connections
▶ Hand override, optional
▶ Porting pattern to Din 24 340 form A, ISO 4401 and CETOP - RP 121H
Application:
4WE 6 E is solenoid operated directional spool valve. It controls the start, stop and direction of a fluid.
Essentially the directional control valves consist of housing (1),one or two solenoids (2), the control spool(3), and one or two return springs (4). In the de-energized condition the control spool (3)is held in the neutral or initial position by means of return springs (4) (except for impulse spools).The control spool (3)is actuated via wet pin solenoids (2). The force of the solenoids (2)acts via the plunger (5)on the control spool (3)and pushes this from its neutral position to the required end position.This gives free-flow from P to A and B to T or P to B and A to T.
When solenoid (2) is de-energized, the control spool (3) is returned to its neutral position by means of the return springs (4).
An optional hand override (6), allows movement of the control spool (3) without energising the solenoid.
Structure diagram of WE 6 61B series
