Directional Control Valve Rexroth Interchangeable

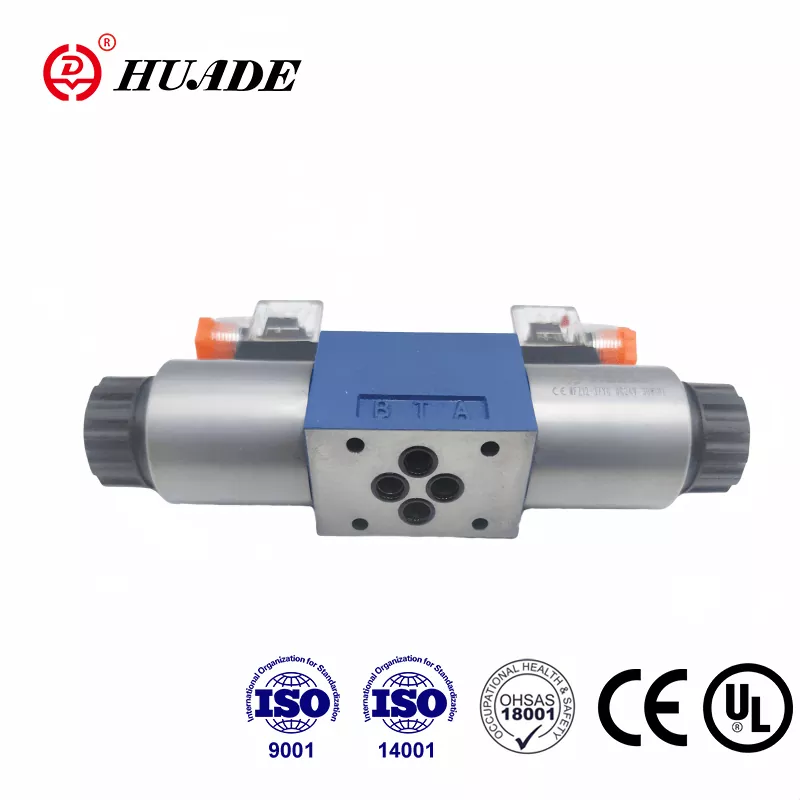

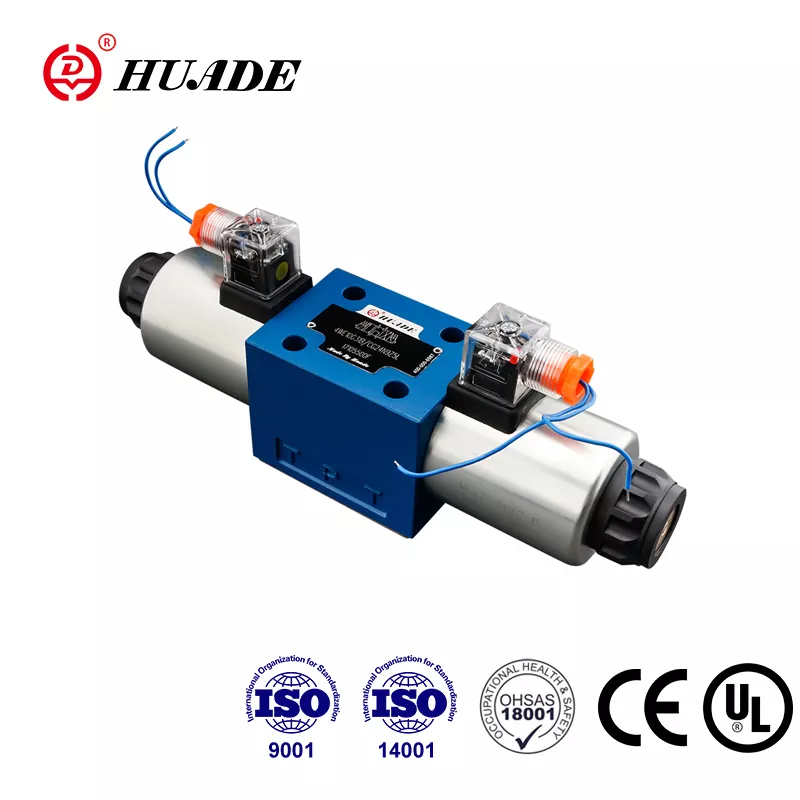

Directional Control Valve 4WE10

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth DIRECTIONAL-CONTROL-VALVE-4WE10 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Solenoid operation, Rexroth-compatible design, reliable performance
• Specifications: 4WE10 series, medium to high-pressure compatibility
• Applications: Industrial hydraulic systems

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry 📥 Download PDF Datasheet
100% Genuine Huade Direct factory authorized supply
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable

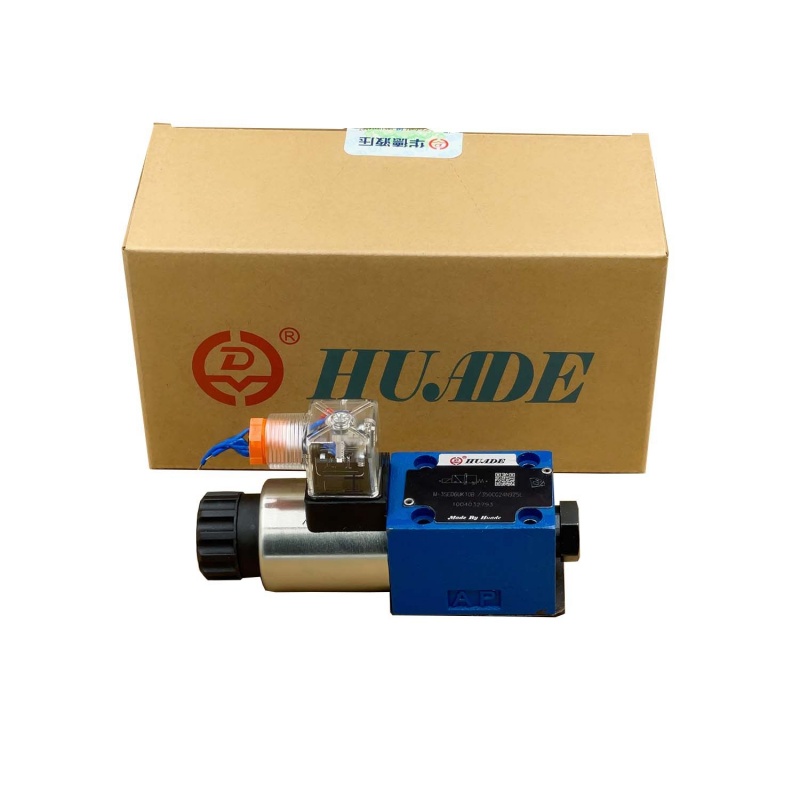

Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters
  • Functional Description
  • Manufacturing Advantages

Product Overview

Huade Hydraulic 4WE10 series valve is a high-performance, solenoid-operated directional control valve designed for reliable fluid power control in medium- to high-pressure hydraulic systems. Building on 12 years of technical collaboration with global industry leaders like Rexroth, this series offers a cost-effective alternative without compromising quality. With a robust design and precise engineering, the directional control valve 4WE10 ensures smooth operation, durability, and compatibility with a wide range of hydraulic applications.

Huade Hydraulic provides high-quality, affordable Rexroth brand replacement hydraulic valves with decades of professional experience. 4WE10 series directional control valves reflects our persistent pursuit of performance and reliability, and is an ideal choice for cost control or OEM replacement for your hydraulic system.

Key Features

  • Pressure Rating: Up to 31.5MPa
  • Flow Capacity: Up to 120 L/min
  • Spool Options: 4-way, 3-position
  • Solenoid Options: AC/DC, wet-pin coil configurations
  • Porting Pattern: ISO 4401 (DIN 24340) standard, interchangeable with major brands
  • Seals: NBR or FPM options for different fluid compatibility

Industrial Applications

  • The 4WE10 series is widely used in industrial and mobile hydraulic systems,such as machine tools, construction equipment,agricultural machinery,material handling

Technical Parameters

Mechanical ratings and operating limits for the Directional Control Valve 4WE10:

Parameter / Dimension Name Value / Rating Specification
Operating pressure max. - Ports A.B.P (MPa) to 31.5
Operating pressure max. - Ports T (MPa) 16
Flow max (L/min) 120
Cross section (switching position 0): With symbol Q approx.6 % of the nominal area With symbol W approx.3 %
Pressure fluid Mineral oils(for NBR seal) or phosphate ester(for FPM seal)
Pressure fluid temperature range (℃) -30~+80
Viscosity range (mm2/s) 2.8~500
Weight (kg) - Valve with 1 solenoid 5.1(DC), 4.3(AC)
Weight (kg) - Valve with 2 solenoids 6.7(DC), 5.1(AC)

Functional Description

4WE10 directional control valve is solenoid operated directional spool valve. It controls the start, stop and direction of a fluid.

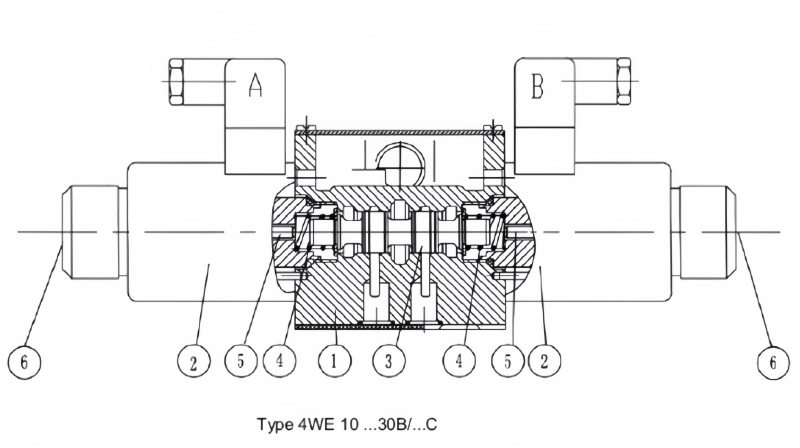

INTERNAL STRUCTURE & CROSS-SECTION
Internal Structure

Huade® Manufacturing Advantages

01

Cost Savings

Huade Hydraulic can help customers reduce costs by 20-30% while ensuring that the performance can match Rexroth’s.

02

Proven Reliability

Each 4WE10 directional control valve undergoes rigorous leakage, pressure peak before leaving the factory.

03

Easy Replacement

Huade Hydraulic' 4WE10 can be directly interchanged with Rexroth brand, with the same appearance and compatible interfaces, helping customers to minimize the transformation work
