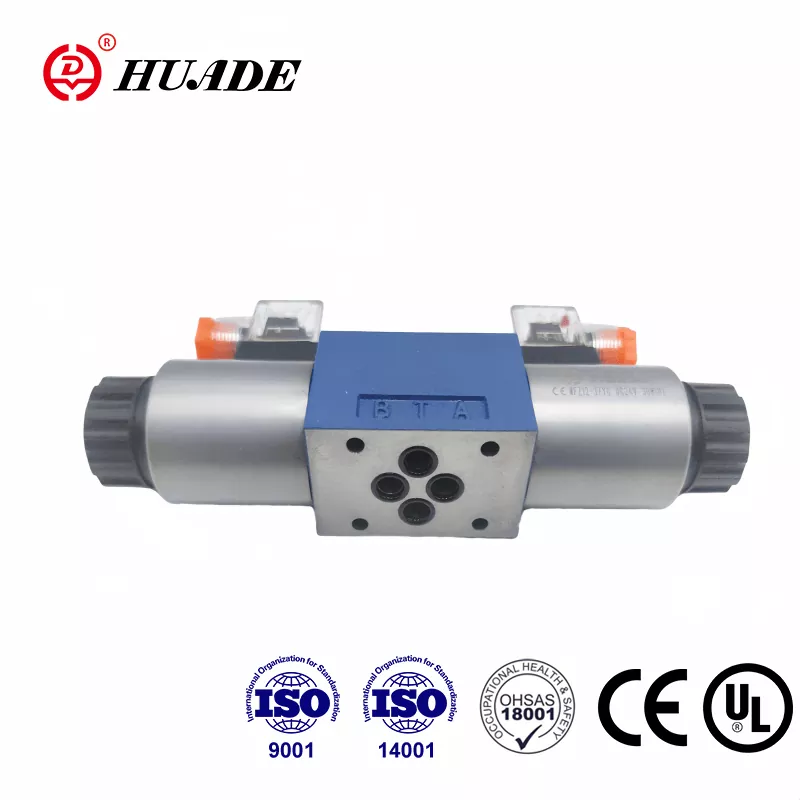

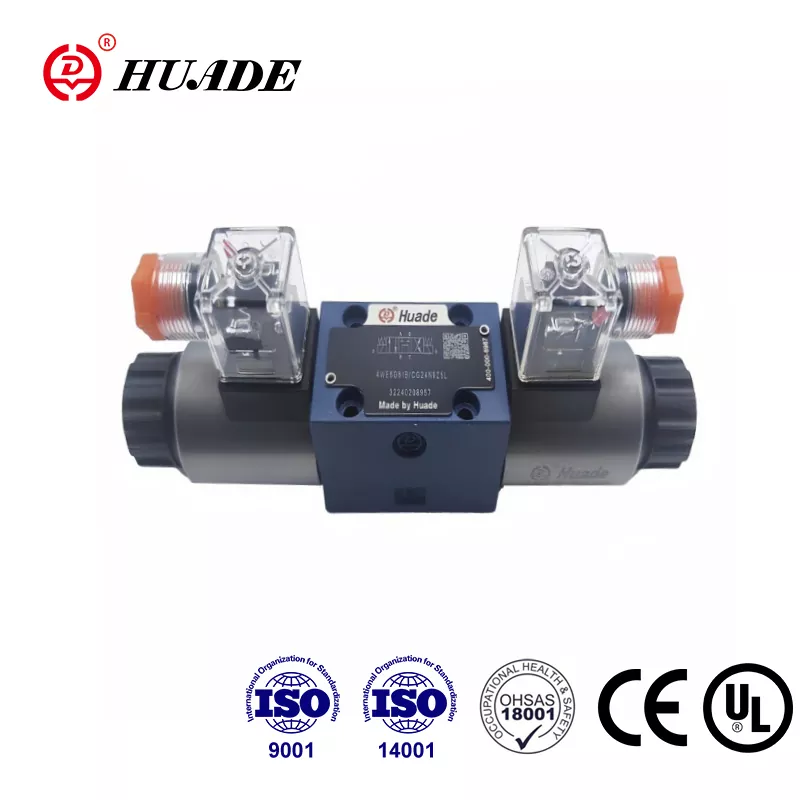

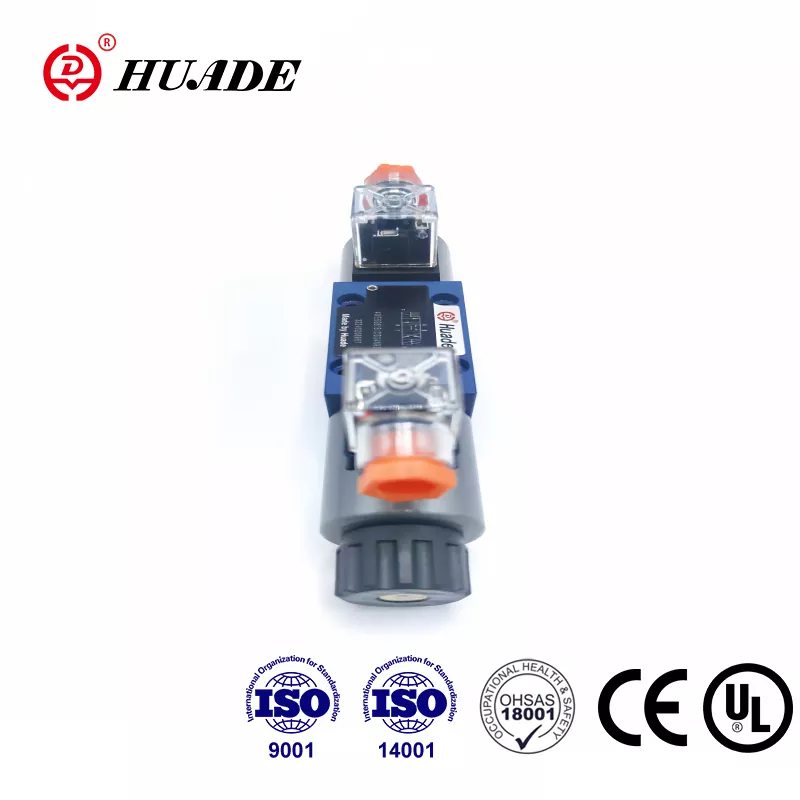

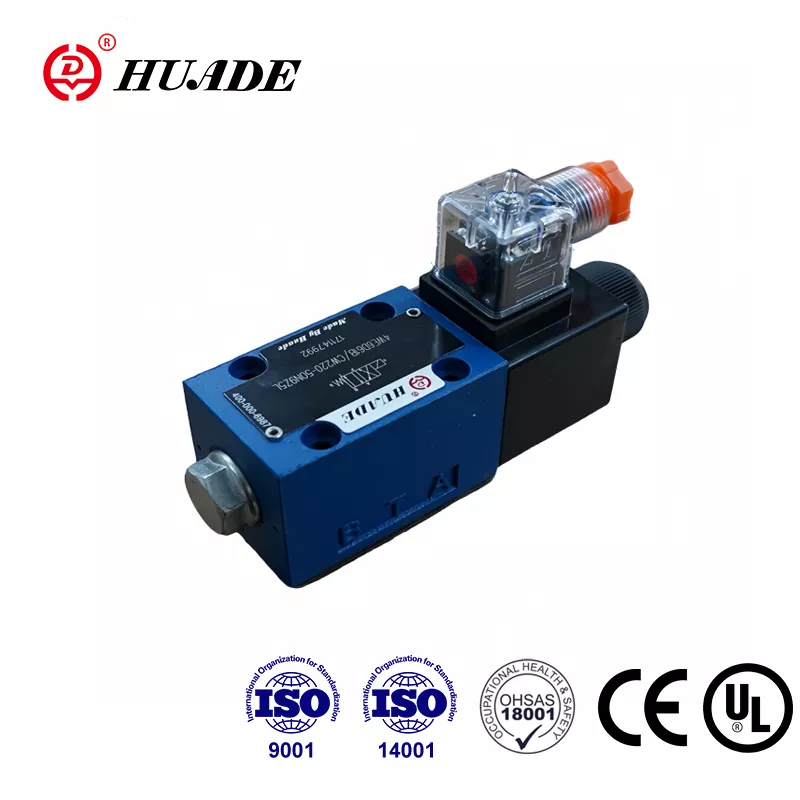

Beijing Huade Hydraulic Industrial Group is a renowned state-owned company specializing in the design , manufacturing and service of hydraulic valves and equipment. Huade® 4WE 6 J solenoid directional valve can replace the same model offered by Rexroth due to twice long-term cooperation with Rexroth from 1979. The solenoid directional valve WE 6 series has passed CE certification. Huade puts great stress on the quality to ensure that every directional valve has superior performance. R&D and production management system meets ISO9001, ISO14001, and ISO45001. Huade® hydraulic valves are widely used in the military industry and other fields in China due to stable performance. It is a reliable national brand in China.
|
Hydraulic |
|||
|
Max.operating pressure Ports A,B,P (Mpa) |
up to 35.0 |
||
|
Port T (㎫) |
21(-);16(～) |
||
|
with symbols A and B, port T must be used as a drain port |
|||
|
Max.flow (L/min) |
80(-);60(～) |
||
|
Pressure fluid |
Mineral Oils or Phosphate Ester |
||
|
Viscosity range (mm2/s) |
2.8~500 |
||
|
Pressure fluid temperature range （℃） |
-30～+80 |
||
|
Degree of contamination |
Maximum permissible degree of contamination of hydraulic fluid to NAS 1638 class9. |
||
|
Electrical |
|||
|
Voltage type |
DC |
AC 50/60Hz |
|
|
Available voltages (V) |
12, 24, 42, 60, 96 |
42, 110, 120, 230 |
|
|
110, 180, 205, 220 |
50/60Hz |
||
|
Power consumption (W) |
30 |
||
|
Holding power (VA) |
- |
50 |
|
|
Switch-on power (VA) |
- |
220 |
|
|
Duty |
continuous |
||
|
Switching time to IS0 6403 |
ON (ms) |
25 to 45 |
10 to 20 |
|
OFF (ms) |
10 to 25 |
15 to 40 |
|
|
Protection to DIN |
IP 65 |
||
|
Switching frequency (cycles/h) |
up to 15000 |
up to 7200 |
|
|
With electrical connections the protective conductor (PE) |
|||
Features:
▶ Direct solenoid actuated directional spool valve high performance version
▶ Wet pin DC or AC solenoids with removable coil
▶ Hand override, optional
▶ Solenoid coil can be rotated through 90°
▶ It is not necessary to open the pressure tight chamber when changing the coil
▶ Electrical connections either as individual or central connections
▶ Porting pattern to Din 24 340 form A, ISO 4401 and CETOP - RP 121H
Application:
Solenoid operated Directional valves of type 4WE 6 J control the start, stop and direction of a fluid.
Essentially the directional control valves 4WE 6 consist of housing (1),one or two solenoids (2), the control spool(3), and one or two return springs (4). In the de-energized condition the control spool (3)is held in the neutral or initial position by means of return springs (4) (except for impulse spools).The control spool (3) is actuated via wet pin solenoids (2). The force of the solenoids (2)acts via the plunger (5) on the control spool (3)and pushes this from its neutral position to the required end position.This gives free-flow from P to A and B to T or P to B and A to T.
When solenoid (2) is de-energized, the control spool (3) is returned to its neutral position by means of the return springs (4).
An optional hand override (6), allows movement of the control spool (3) without energising the solenoid.
Structure diagram of WE 6 61B series
