Explosion-proof solenoid valve with emergency handle 4WEM10 is an industrial valve specially designed for flammable and explosive environments. The common voltage of solenoid valve 4WEM10 is 24VDC or 220VAC, and the explosion-proof coil must match the on-site power supply. When the automatic control fails, the emergency handle can quickly cut off or open the valve to prevent leakage or explosion.
Explosion-proof Solenoid Valve with Handle 4WEM10
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth EXPLOSION-PROOF-SOLENOID-VALVE-WITH-HANDLE-4WEM10 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Size 6 to 10,Subplate mounting

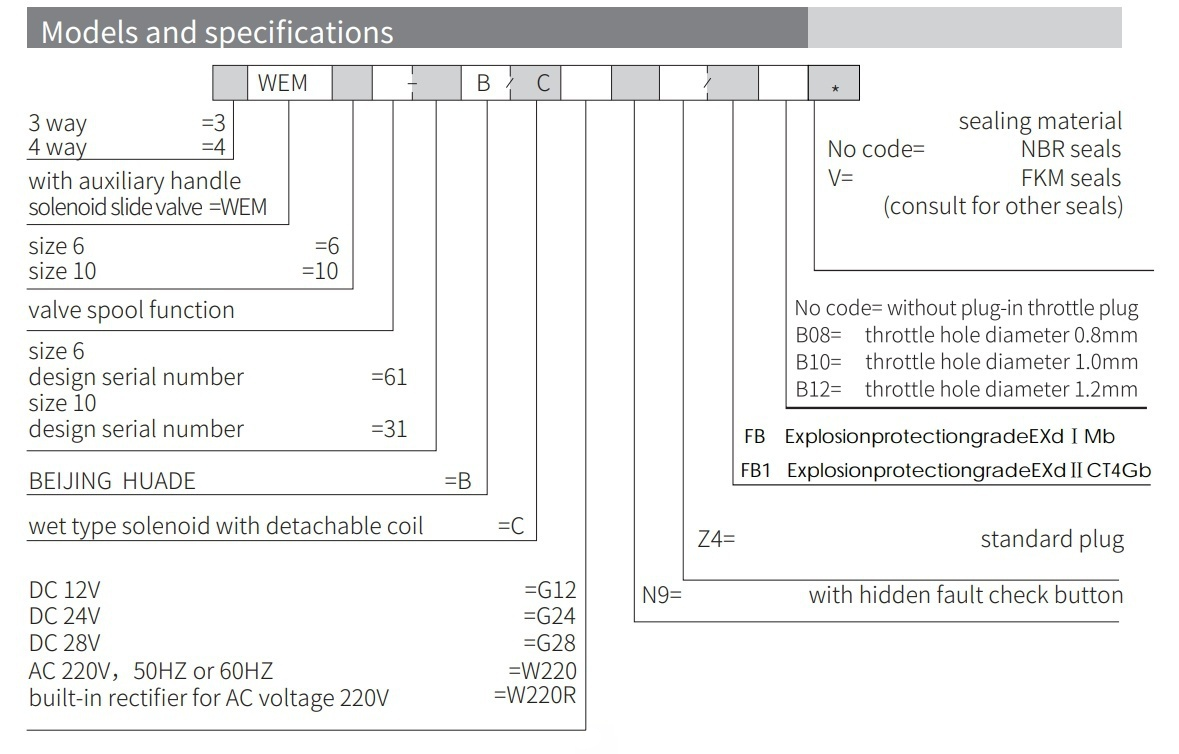

• Specifications:Explosion-proof Solenoid Valve with Handle 4WEM10 series,
• Applications: pipeline systems of refineries and chemical plants,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Size 6 to 10
- Maximum working pressure 350 bar
- Maximum working flow rate 120 L/min
- The opening, closing and direction of the flow controlled by the solenoid and manual
- Wet-pin solenoid with detachable coil
- The solenoid can rotate 90°
- Subplate mounting
Industrial Applications
- Solenoid directional valve with emergency handle 4WEM10 is widely used in pipeline systems of refineries and chemical plants, gas distribution stations, import and export pipelines of LNG storage tanks, coal mine gas extraction systems, and underground ventilation pipelines.
- The WEMM type directional valve is a directional spool valve operated by solenoid and operating handle. It controls the opening, closing and flow direction of liquid flow.
- Explosion-proof solenoid valve with handle 4WEM10 is mainly composed of a valve body(1), one or two solenoids (2), a valve spool (3), a reset spring (4) and a manual control device.
- Solenoid operation:
- When there is no power, the valve spool (3) is in the neutral or original position under the action of the return spring. When the force of the solenoid (2) acts on the valve spool (3), it is pushed from the rest position to the terminal position. In this way, the pressure oil is conducted from P to A and B to T, or from P to B and from A to T. After the solenoid (2) is powered off, the return spring (4) returns the valve spool (3) to its original position.
- Auxiliary handle operation:
- When the solenoid is not energized, the valve spool (3) can be moved by operating the auxiliary handle. Turn the auxiliary handle (5) to the right, so that the operating force passes through the rotating shaft (6). The ball valve core(7) and the guide sleeve (8) act on the valve spool(3), causing it to move to the left. When the auxiliary handle(5). When returning to the zero position, the valve spool (3) returns to the original position under the action of the return spring (9).
- Structure Explosion-proof Solenoid Valve with Handle 4WEM10
- Symbols of Explosion-proof Solenoid Valve with Handle 4WEM10
Technical Parameters
Mechanical ratings and operating limits for the Explosion-proof Solenoid Valve with Handle 4WEM10:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Working pressure Mpa | A, B, PO to 35 |
| T port pressure Mpa | to 16(AC) to 21 (DC) |
| Mediu | Mineral hydraulic oil or phosphate ester wave pressure oil |
| Viscosity range mm2/s | 2.5 to 500 |
| Temperature range ℃ | -30 to +80 |
