Huade's explosion-proof hydraulic valves adopt special design and manufacturing technology, using corrosion-resistant high-quality materials. Explosion-proof valve WE10 series are widely used in places with explosion hazards such as mining, coal, and chemical industries. Huade is a reliable national brand in China. The factory has advanced production technology and testing equipment and pays great attention to product quality.

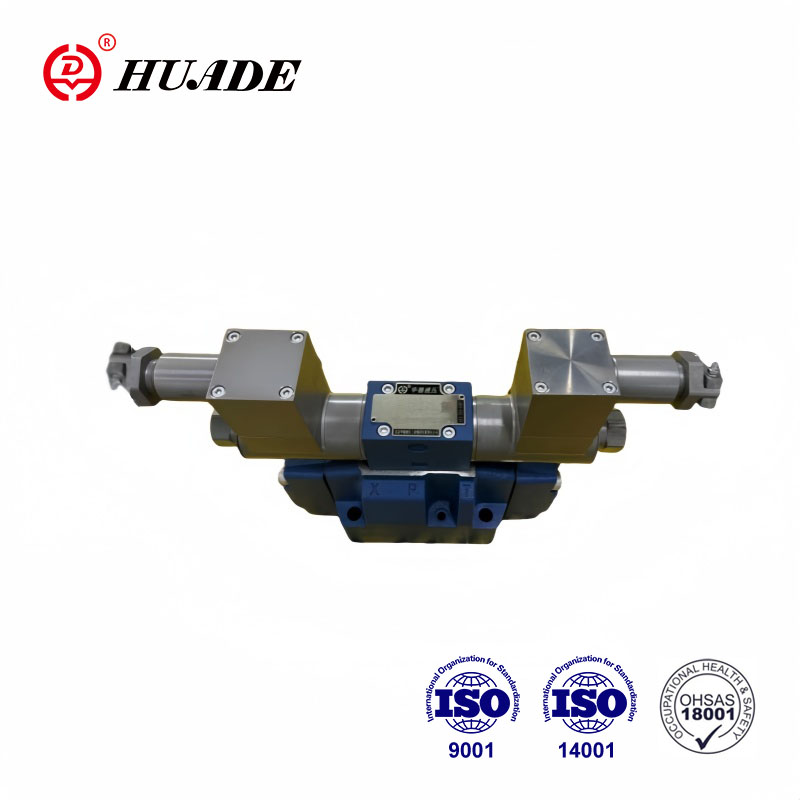

Explosion-Proof Solenoid Valve WE10
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth EXPLOSION-PROOF-SOLENOID-VALVE-WE10 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:DIN24 340,ISO 4401
• Specifications:Explosion-Proof Solenoid Valve WE10 series,
• Applications:control start,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Directly operated type explosion-resistant solenoid operation direction slide valve is used as the standard
- DIN24 340 A type on the mounting surface ISO 4401
- Wet-type DC explosion protection solenoid
- 90° rotatable explosion protection solenoid
- Pressure-tight chamber needs not to be opened when coil is to be replaced
Industrial Applications
- WE type explosion-proof valve is the directional valve of explosion protection solenoid used to control start, stop and flow direction of oil fluid.
- The directional control valves consist of housing(1), one or two solenoids(2), the control spool(3), and one or two return springs (4). In the de-energised condition the control spool(3) is held in the neutral or initial position by means of return springs(4) (except for pulse spools). The control spool (3) is actuated via wet pin solenoids (2).
- To guarantee satisfactory operation care should be taken to ensure that the solenoid pressure chamber is filled with oil.
- The control spool(3) is moved to the expected position by solenoid(2) and pushing rod(5), and
- this gives free-flow from P to Aand B to T or P to B and A to T.
- When the explosion protection solenoid(2) is powered off, control valve element (3) is pushed
- to the initial position by reset spring (4).
- Structure of Explosion-Proof Solenoid Valve WE10
- Symbols
Technical Parameters
Mechanical ratings and operating limits for the Explosion-Proof Solenoid Valve WE10:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Technical data | Technical data |
| Fixing position | Optional |
| Environment temperature range (℃) | -20 to +50 (FKM seal) |
| Weight - Single solenoid (kg) | 5.9 |
| Weight - Double solenoids (kg) | 8.9 |
| Max.operating pressure - Port P, A, B (bar) | 350 |
| Max.operating pressure - Port T (bar) | when the operating pressure exceeds the permission value, spool symbol A and B must make the port T for draining |
| Max. flow-rate (L/min) | 120 |
| Flow cross section (switching neutral position ) - Version V (mm2) | 11(A/B →T);10.3(P →A/B) |
| Flow cross section (switching neutral position ) - Version W (mm2) | 2.5(A/B→T) |
| Flow cross section (switching neutral position ) - Version Q (mm2) | 5.5(A/B →T) |
| Fluid | Phosphate ester for FKM seal |
| Fluid temperature range (℃) | -20 to +80 (FKM seal) |
| Viscosity range mm2 /s | 2.8 to 500 |
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 |
| Electrical data | Electrical data |
| Type of voltage | DC |
| Available voltage (V) | 12, 24, 36, 110 |
| Voltage tolerance (nominal voltage) % | -15 to +10 |
| Power consumption (W) | 35 |
| Duty cycle | Continuous |
| Switched time Accord with ISO 6403 - ON (ms) | 45 to 60 |
| Switched time Accord with ISO 6403 - OFF (ms) | 20 to 30 |
| Switched frequency (times/h) | To 15000 |
| Protection class according to DIN 40050 | IP65 |
| Max. coils temperature (℃) | +150 |
