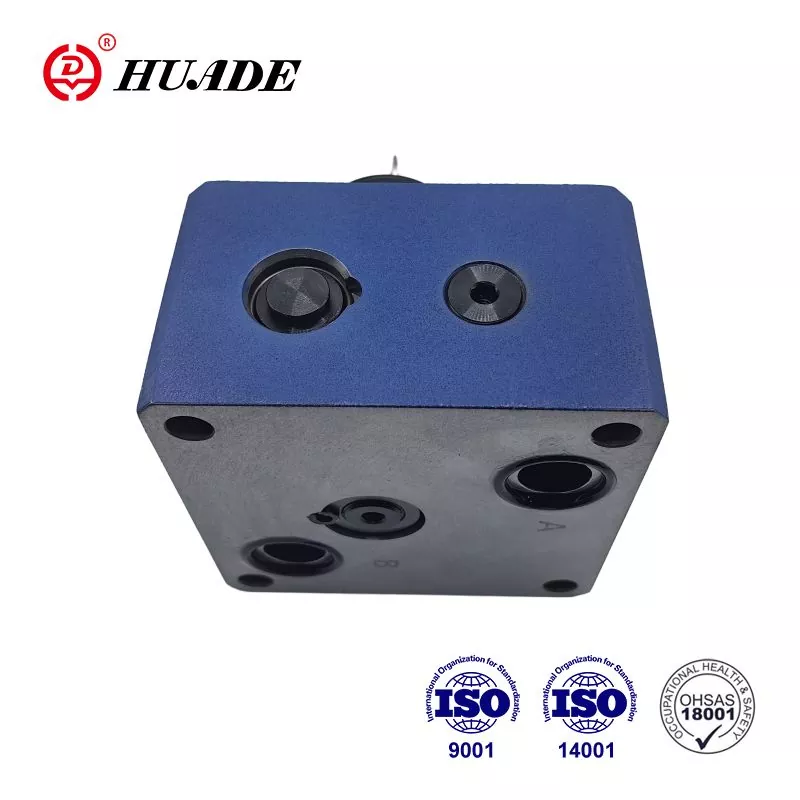

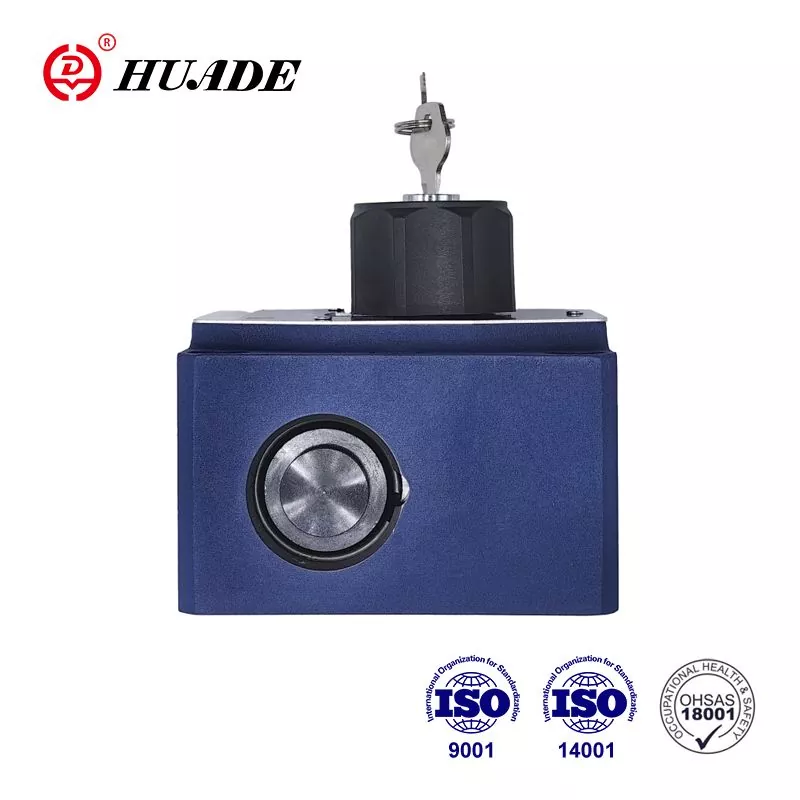

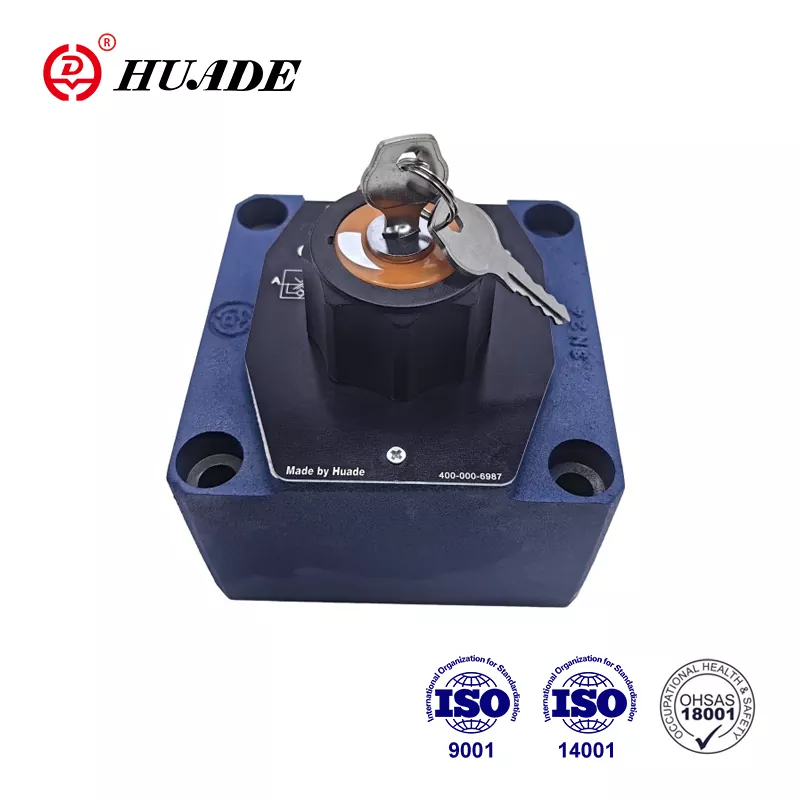

Flow control valves are 2-way flow control valves. Through the introduction of technology, Huade® hydraulic valves can match Rexroth in performance. This 2FRM 16 flow valve is a good, affordable alternative to Rexroth. Huade Hydraulic pays more attention to cost-effectiveness and practicality, so that its hydraulic valve has a relatively low price. This is an old brand in China.
|
General |
|
|
Hydraulic fluid |
Mineral oil(for NBR seal),or phosphate ester(for FPM seal) |
|
Temperature range(℃) |
-30 to+80 |
|
Viscosity range(mm ²/s) |
10 to 800 |
|
Rectifier sandwich plate |
||
|
Flow.max (L/min) |
10 |
16 |
|
up to 50 |
up to 160 |
|
|
Operating pressure (MPa) |
up to 31.5 |
|
|
Cracking pressure (MPa) |
0.15 |
|
|
Weight(kg) |
3.2 |
9.3 |
|
Flow. Q max (L/min) |
size 10 |
size 16 |
||||||
|
10 |
16 |
25 |
50 |
60 |
100 |
160 |
||
|
∆p with free return flow B → A, Q-dependent (MPa) |
0.2 |
0.25 |
0.35 |
0.6 |
0.28 |
0.43 |
0.73 |
|
|
Flow control |
temperature-stable |
±2% (Q max) |
||||||
|
pressure-stable (up to |
±2% (Q max) |
±5%(Q max) |
||||||
|
Operating pressure, max.- port A (MPa) |
up to 31.5 |
|||||||
|
Minimum pressure difference range (MPa) |
0.3 to 0.7 |
0.5~1.2 |
||||||
|
Degree of contamination (μ m) |
25 (Q< 5L/min) |
10 (Q < 0.5L/min) |
||||||
|
Weight (Kg) |
5.6 |
11.3 |
||||||
Features:
▶ Porting pattern to DIN 24 340,from A,ISO 4401 and CETOP - RP 121H
▶ Pressure compensator stroke limiter, optional
▶ Mechanical operation
▶ Start-up jump reduction
▶ Flow control in both directions using a rectifier sandwich plate
Application:
The main function of flow control valves 2FRM 16 is to maintain a flow constant independently of pressure and temperature.
The valves 2FRM 16 basically consist of the housing (1), orifice bushing(3), pressure compensator (4) with optional stroke limiter,check valve(5), adjustment element (2).
The flow from channel A to channel B is throttle at the orifice (6). In order to maintain the flow across the orifice constant, a pressure compensator is connected upstream of the orifice (6). The flow is maintained largely independent of temperature due to the orifice design. Free return flow from channel B to channel A is directed via the check valve (5).The flow is only controlled from A to B. In order to control the flows in both directions a rectifier sandwich plate type Z4S can be installed below the flow control valve.
Structure of Flow Control Valve 2FRM 16
Symbol of Flow Control Valve 2FRM 16
