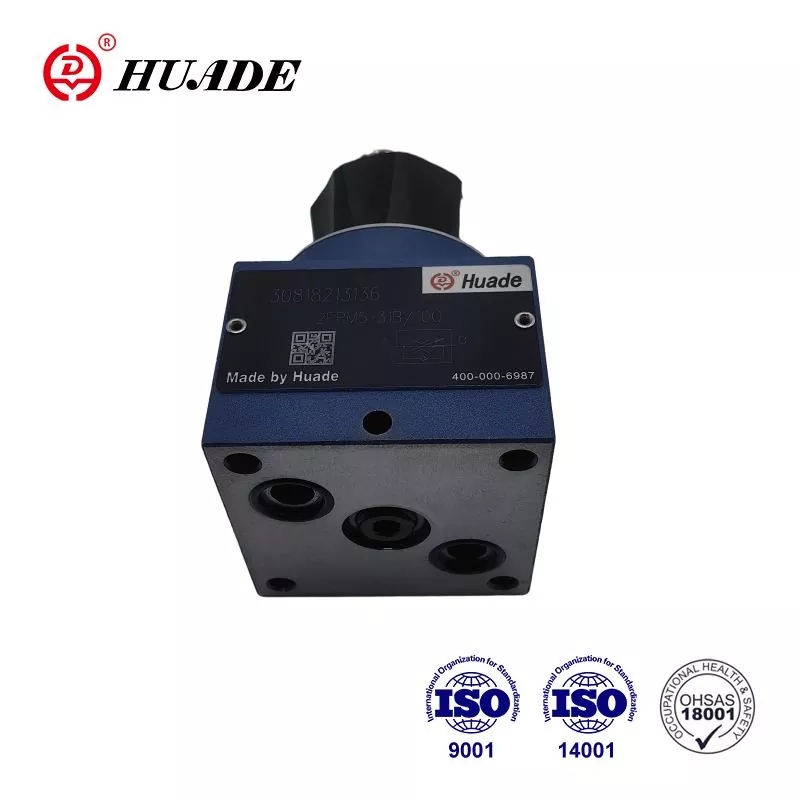

The 2FRM flow valve is a 2-way flow control valve. It is used for throttling. Huade® is indeed a trustworthy brand in China. Through two long-term cooperation with Rexroth, Huade® flow control valves are compatible with the same series offered by Rexroth. Whether in product quality, technological innovation, customer service or brand reputation, Huade Hydraulic has performed well and won wide reputation from the market and consumers.
|
General |
|
|
Hydraulic fluid |
Mineral oil(for NBR seal),or phosphate ester(for FPM seal) |
|
Temperature range(℃) |
-30 to+80 |
|
Viscosity range(mm ²/s) |
10 to 800 |
|
Rectifier sandwich plate |
|
|
Flow.max (L/min) |
15 |
|
Operating pressure (MPa) |
up to 21 |
|
Cracking pressure (MPa) |
0.1 |
|
Weight(kg) |
0.6 |
|
2-way flow control valve |
||||||||
|
Flow. qv max (L/min) |
0.2 |
0.6 |
1.2 |
3.0 |
6.0 |
10.0 |
15.0 |
|
|
∆p with free return flow B → A, qv -dependent (MPa) |
0.05 |
0.05 |
0.06 |
0.09 |
0.18 |
0.36 |
0.67 |
|
|
Flow control |
temperature-stable |
±5% |
±3% |
± 2% |
||||
|
pressure-stable (up to |
±2% |
士4% |
||||||
|
Operating pressure, max.- port A (MPa) |
to 21 |
|||||||
|
Minimum pressure difference range (MPa) |
0.3 to 0.5 |
0.6~0.8 |
||||||
|
Degree of contamination (μm) |
25 (Q<5L/min) |
10 (Q < 0.5L/min) |
||||||
|
Weight (Kg) |
1.6 |
|||||||
Features:
▶ Porting pattern to DIN 24 340,from A,ISO 4401and CETOP - RP 121H
▶ Pressure compensator stroke limiter, optional
▶ Decrease of start-up jump
▶ Flow control in both directions using a rectifier sandwich plate

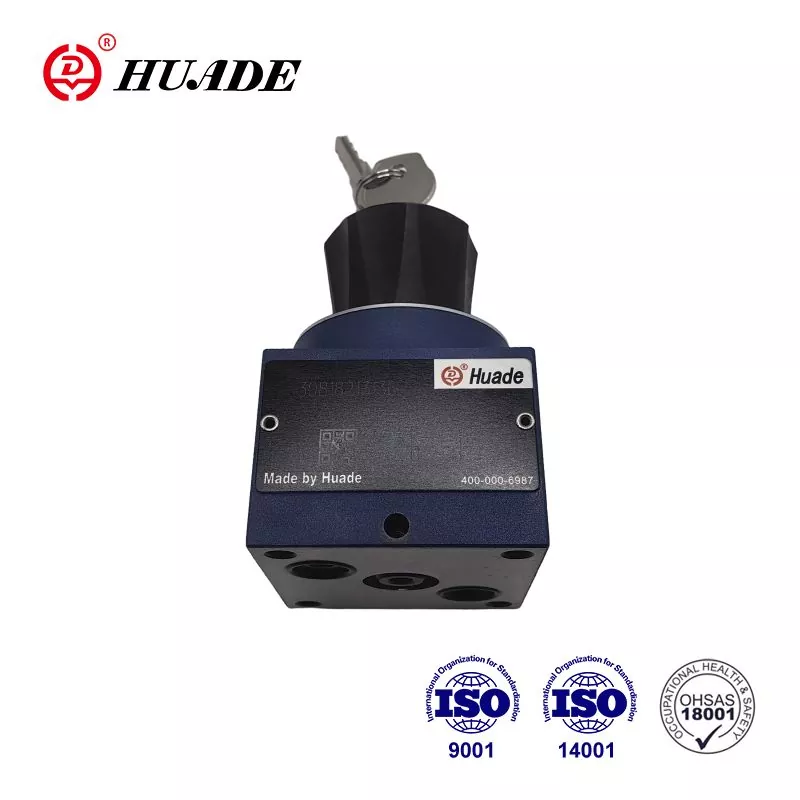

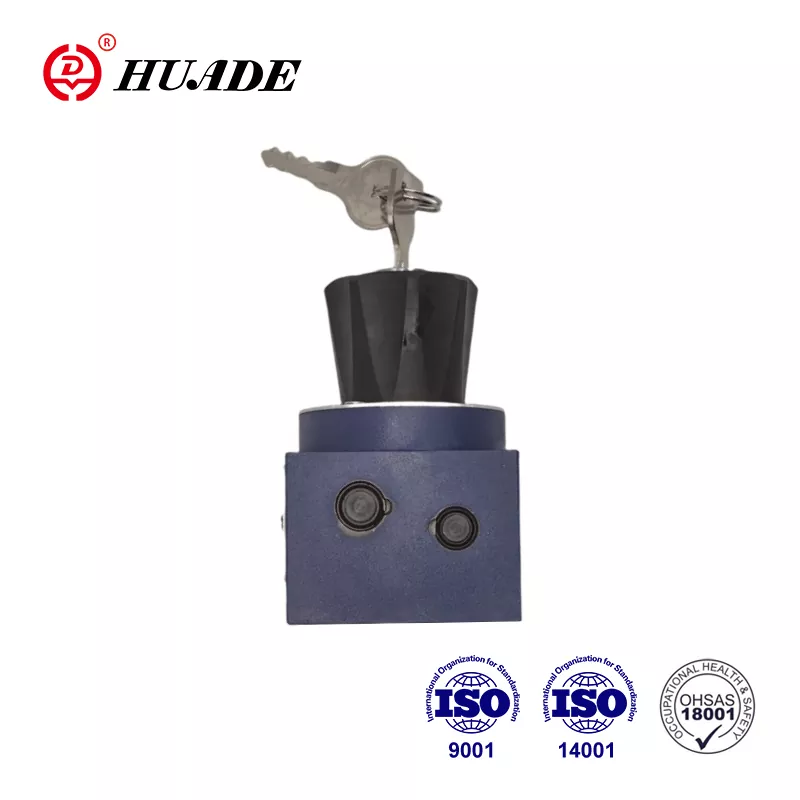

▶ Lockable rotary knob
Application:
Flow control valve, type 2FRM is a 2-way flow control valve, which is used for throttling and is not affected by pressure and temperature.
The 2-way flow control valve 2FRM mainly consists of housing(1), setting element(2), orifice(3), pressure compensator (4) optionally with stroke limiter as well as check valve(5) and is used for the throttling of a flow at low pressure and temperature dependency.
The throttling cross section is set by the rotation of the curve bolt(7).To keep the flow constant independent from the pressure at the throttling point(8) a pressure compensator (4)is connected. The temperate independence is the result of the throttling point being constructed as an orifice.
The free flow return from B to A is via the check valve(5).
In order to reach a controlled through flow of the valve in either direction there is the possibility to install a rectifier sandwich plate type Z4S below the flow control valve.
Structure of Flow Control Valve 2FRM 5
Symbol of Flow Control Valve 2FRM 5
