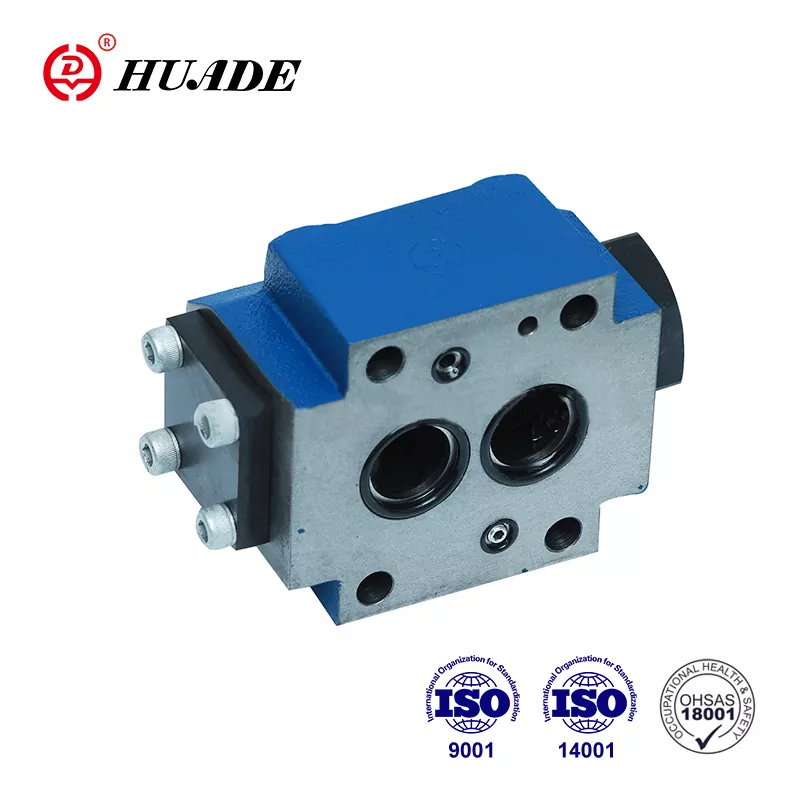

Pilot Operated Check Valve SL

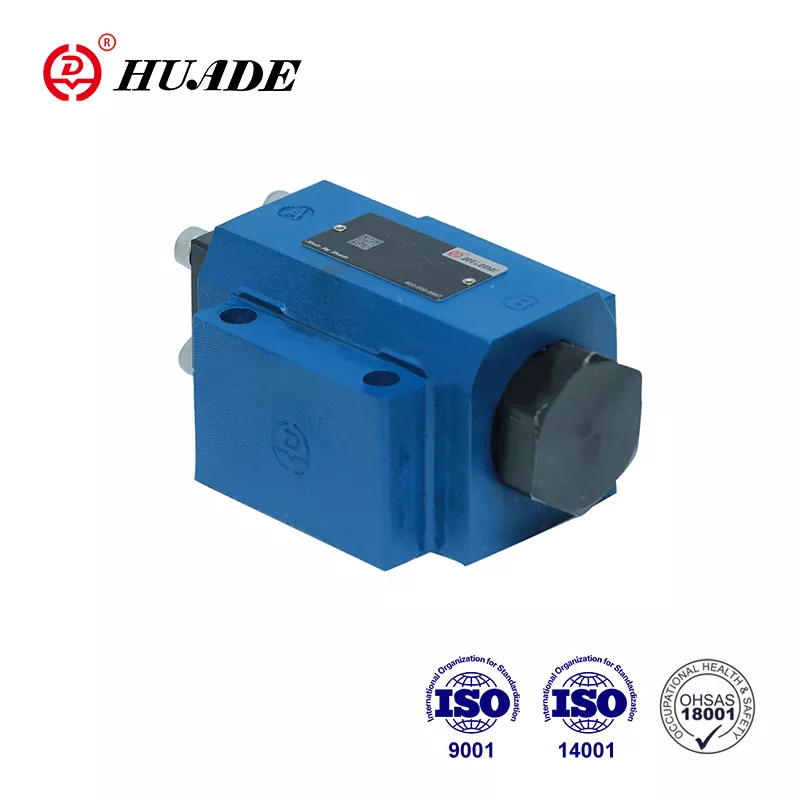

Pilot Operated Check Valve SL - Image 2

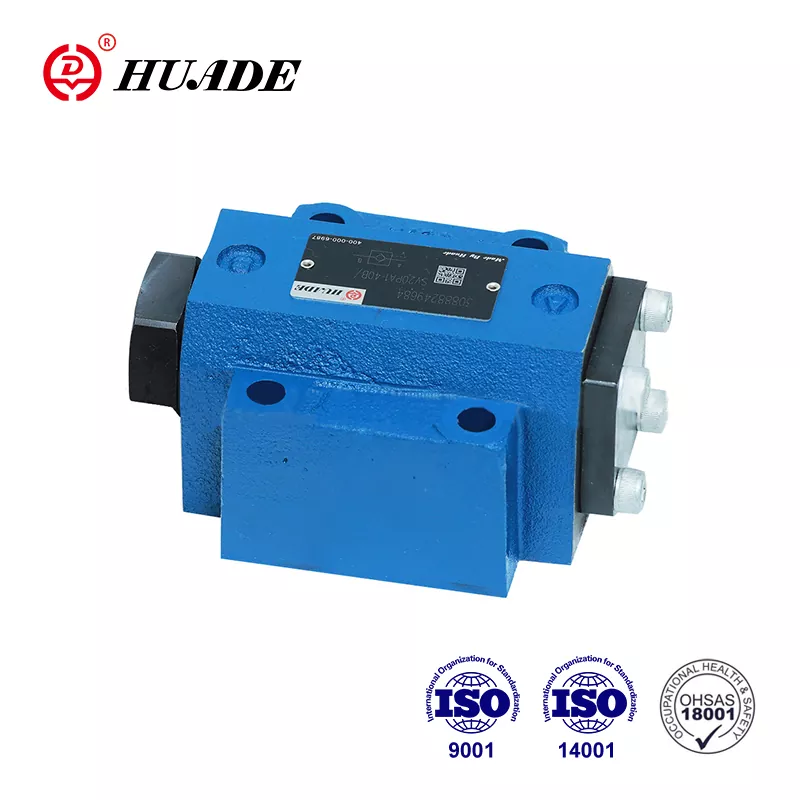

Pilot Operated Check Valve SL - Image 3
Pilot Operated Check Valve SL - Image 4
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PILOT-OPERATED-CHECK-VALVE-SL equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Rexroth-compatible design, poppet type construction, optional pre-opening and leakage port
• Specifications: SL series, 0.5-315 MPa operating pressure, sizes 10-30
• Applications: Industrial hydraulic systems, load holding, circuit isolationRetryClaude can make mistakes. Please double-check responses.

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Huade is a well-known brand in China. After it was established, it had two long-term cooperation experiences with Rexroth. It can completely replace the SL series offered by Rexroth. The price is more reasonable. Huade® check valves SL series are competitive with good quality and lower price. Huade puts great stress on the quality. The factory has passed ISO9001, ISO14001, and OH SAS18001. Huade's hydraulic valves are widely used in the military industry and other fields due to the superior performance. All Huade® check valves will be packed in standard cartons plus waterproof plastic packaging.

From A to B free, from B to A through opening

Mineral oils(for NBR seal) or phosphate ester(for FPM seal)

Pressure fluid temperature range（℃）

Key Features

  • check valve controlled by fluid
  • For subplate mounting,Mounting pattern to DIN 24 340
  • Subplate or screw threaded connection
  • With or without leakage port
  • With or without pre-opening
  • Type with pre-opening,dampened decompression
  • 4 opening pressures
  • Porting pattem to Din 24 340 fom A, 1SO 4401 and CETOP- RP 121H
  • Check valves SL are hydraulic pilot operated check valves in poppet type design which may be opened to allow low in either direction.
  • These valves are used for the isolation of operating circuits under pressure, as safeguard against the lowering of a load when a line break occurs or against creeping movements of hydraulically locked-in actuators.
  • Basically these valves consist of housing (1), poppet (2),compression spring (3), control spool (4) as well as a pre-opening,as ball poppet valve(5), optionally.
  • The valve enables free flow from A to B, in the counter direction the poppet (2) is held on its seat by the system pressure, additionally to the spring force.
  • Through the pressure connection at control port X the control piston (4) is moved to the right. This pushes the poppet(2) from the seat. Now the valve may also have a flow from B to A.
  • In order to ensure the proper opening of the valve via the control piston (4) a certain minimum control pressure is necessary.
  • This valve has a additional pre-opening. Through pressure connection at control port X the control piston (4) is pushed to the right.
  • This first pushes the ball (5) and then the poppet (2) from the seat. Now the valve may also have a flow from B to A. Because of the pre-opening there is a dampened decompression of the fluid under pressure. Through this possible pressure shocks are avoided
  • The function of this valve is principally the same as the valve SV. The difference is the additional leakage port Y. With this the annulus area of the control piston (4) is separated from port A.
  • The pressure present at port A only effects area A4, of the control piston (4).
  • Cutaway view of check valve type SL. .PB
  • (with leakage port, without pre-opening)

Technical Parameters

Mechanical ratings and operating limits for the Pilot Operated Check Valve SL:

Parameter / Dimension Name Value / Rating Specification
Technical data Technical data
Style - 10 - 16 - 20 - 25 30
Weight - subplate mounting (kg) - 1.8 - - - 4.7 7.8
Weight - threaded connection (kg) - 2.1 - 5.4 - 10 10
Installation position (㎫) - Optional Optional
Direction of flow (㎫) - From A to B free, from B to A through opening From A to B free, from B to A through opening
Operating pressure, max.(㎫) - 0.5~315 0.5~315
Control pressure, max (㎫) - 0.5~315 0.5~315
Control volume -port X (cm3) - 2.5 - 10.8 - 19.27 19.27
Control volume -port Y (cm3) - 2 - 9.6 - 17.5 17.5
Control areas -area A1 (cm3) - 1.3 - 3.46 - 5.72 5.72
-area A2 (cm3) - 0.33 - 0.7 - 1.33 1.33
-area A3 (cm3) - 3.8 - 10.17 - 16.61 16.61
-area A4 (cm3) - 0.79 - 1.13 - - 1.54 1.54
Pressure fluid - Mineral oils(for NBR seal) or phosphate ester(for FPM seal) Mineral oils(for NBR seal) or phosphate ester(for FPM seal)
Pressure fluid temperature range（℃） - -30～+80 -30～+80
Viscosity range    (mm2/s) - 2.8 to 500 2.8 to 500
