Check Valve Rexroth Interchangeable

Cartridge Valve M-SR

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Cartridge Valve M-SR

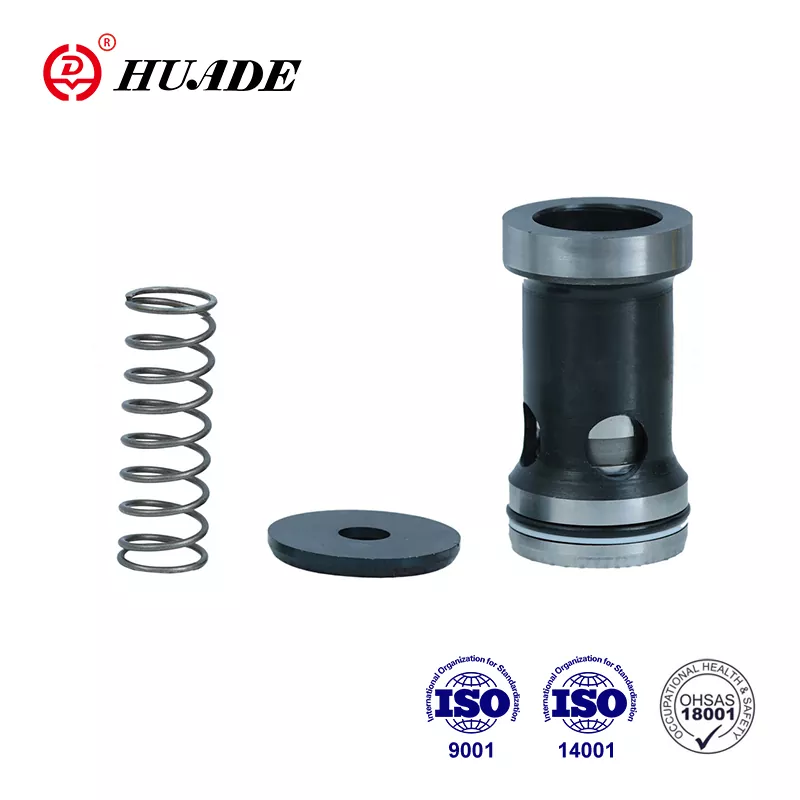

Cartridge Valve M-SR - Image 2
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth CARTRIDGE-VALVE-M-SR equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Rexroth-compatible design, leak-free closure, 6 optional opening pressures
• Specifications: Max pressure 31.5 MPa, flow per characteristic curves, mineral oil compatible
• Applications: Pump outlet back pressure valves, manifold block installationsRetryClaude can make mistakes. Please double-check responses.

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters
  • Functional Description

Product Overview

Established through a strategic partnership between the Chinese and German governments in 1979, the company has incorporated cutting-edge technology from Rexroth. Huade® cartridge valve M-SR is alternative to Rexroth products of the same series. It is cost-effective. All products undergo strict testing before leaving the factory and are packaged in standard carton with waterproof packaging. Within the one year guarantee period, it is free to repair. Huade has come up to the international standards, namely ISO9001, ISO14001, and ISO45001. Huade® cartridge valve M-SR have reliable performance and are already popular among Chinese consumers. It is a well-known national brand in China.

Technical data (for applications outside these parameters, please consult us!)

Max. flow              (L/min)

Pressure fluid temperature range（℃）

Maximum permissible degree of contamination of the pressure fluid is to NAS 1638 cass 9. We therefore recommend a filter with a minimum retention rate of β10≥75

Key Features

  • For installation in manifold blocks as right angled check valve cartridge
  • Leak free closure in one direction
  • 6 opening pressures, optional

Industrial Applications

  • It is mainly used in the outlet of pump as back pressure and side through valves.

Technical Parameters

Mechanical ratings and operating limits for the Cartridge Valve M-SR:

Parameter / Dimension Name Value / Rating Specification
Technical data (for applications outside these parameters, please consult us!) Technical data (for applications outside these parameters, please consult us!)
Max. pressure         (MPa) Up to 31.5
Cracking  pressure  (MPa) See characteristic curves
Max. flow              (L/min) See characteristic curves
Operating fluid Mineral oil or phosphate ester
Pressure fluid temperature range（℃） -30～+80
Viscosity range   (mm2/s) 2.8 to 500
Fluid cleanliness Maximum permissible degree of contamination of the pressure fluid is to NAS 1638 cass 9. We therefore recommend a filter with a minimum retention rate of β10≥75

Functional Description

The check valve cartridge type M-SR has the task of, prefer ably dosing a flow in one direction and to permit free flow in the opposite direction.

The valve including valve sleeve(1), spool (2), spring seat(3) and springs(4).

Symbol

Structure diagram

1. The fluid must be filtered. Minimum filter fineness is 20 ㎛.

2. The tank must be sealing up and an air filter must be installed on air entrance.

3. Products without subplate when leaving factory, if need them, please ordering specially.

4. Valve fixing screws must be high intensity level (class 10.9). Please select and use them according to the parameter listed in the sample book.

5. Roughness of surface linked with the valve is required to 0.8.

6. Surface finish of mating piece is required to 0.01/100mm.
