Pressure Reducing Valve Rexroth Interchangeable

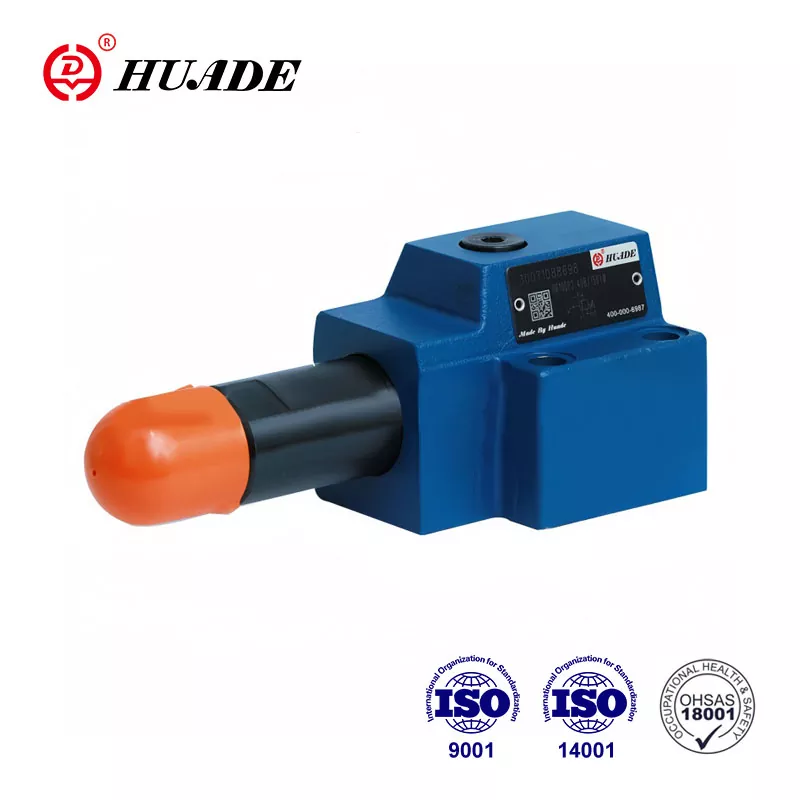

Pressure Reducing Valve DR 10 DP

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Pressure Reducing Valve DR 10 DP
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PRESSURE-REDUCING-VALVE-DR-10-DP equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Direct operated 3-way design, Rexroth-compatible, 4 pressure ranges with multiple setting elements
• Specifications: Max operating pressure 31.5 MPa, secondary pressure up to 31.5 MPa, flow rate up to 80 L/min
• Applications: System pressure reduction in industrial hydraulic circuits, subplate mounting installations

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry →
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Type DR 10 DP is a pressure reducing valve which is used to control the pressure. The fact that Huade® pressure valves can replace the same series products offered by Rexroth is mainly due to the long-term cooperation with Rexroth. Compared with other similar brands, Huade® products are more advanced in technology and more durable. The prices of these pressure reducing valves are relatively cheap. The factory is a national key enterprise and has a high reputation in China .

up to2.5; up to7.5; up to 15.0; up to 21.0; up to31.5

Mineral oil (for NBR seal)or phosphate ester(for FPM seal)

Maximum permissible degree of contamination of the fluid is to NAS 1638 class 9.

Key Features

  • For subplate mounting
  • 4 pressure ranges
  • 4 setting elements
  • Rotary knob
  • Hex. head sleeve with protective cap
  • Lockable rotary knob with scale
  • Rotary knob with scale
  • With pressure gauge port
  • Optional non return valve
  • Porting pattern to DIN 24 340, form D, ISO 5781 and CETOP - RP 121H

Industrial Applications

  • Pressure reducing valve type DR 6 DP is used to reduce the system pressure.
  • The valve type DR 10 DP is a direct operated valve of 3 way design, with a pressure relief function on the reduced pressure side.
  • Pressure setting is by means of the pressure setting element (1).
  • At rest, the valve is normally open, and fluid can flow unhindered from port B to port A. Pressure in port A is also present on the end of the spool (2), via control line(4), opposing the compression spring (3). When the pressure in port A reaches the pressure level set at spring (3), spool (2) moves to the control position and holds the pressure in port A constant.
  • Fluid to control the valve is taken from port A via control drilling.
  • If the pressure in port A rises still further due external forces, the spool (2) is moved still further towards the compression spring (3).
  • This causes a flow path to be opened over control land(5) in the control spool(2) to tank (port Y) . Sufficient fluid then flows to tank to prevent any further rise in pressure.
  • The spring chamber (6) is drained to tank externally via port Y.
  • An optional non return valve (7) is available to allow free flow from port A to port B.
  • A pressure gauge connection(8), permits the secondary pressure to be monitored.
  • structure of DR10DP 1- 40B
  • Symbols of  DR10 DP

Technical Parameters

Mechanical ratings and operating limits for the Pressure Reducing Valve DR 10 DP:

Parameter / Dimension Name Value / Rating Specification
Max.operating pressure(Port P) (MPa) up to 31.5
Max. secondary pressure (Port A) (MPa) up to2.5; up to7.5; up to 15.0; up to 21.0; up to31.5
Max.back pressure( Ports T(Y)) (MPa) up to 16
Max.flow (L/min) up to 80
Pressure fluid Mineral oil Mineral oil (for NBR seal)or phosphate ester(for FPM seal)
Viscosity range(mm ²/s) 10~800
Pressure fluid-temperature range(℃) -30 to +80
Degree of contamination (um) Maximum permissible degree of contamination of the fluid is to NAS 1638 class 9.
Weight (kg) approx.3
