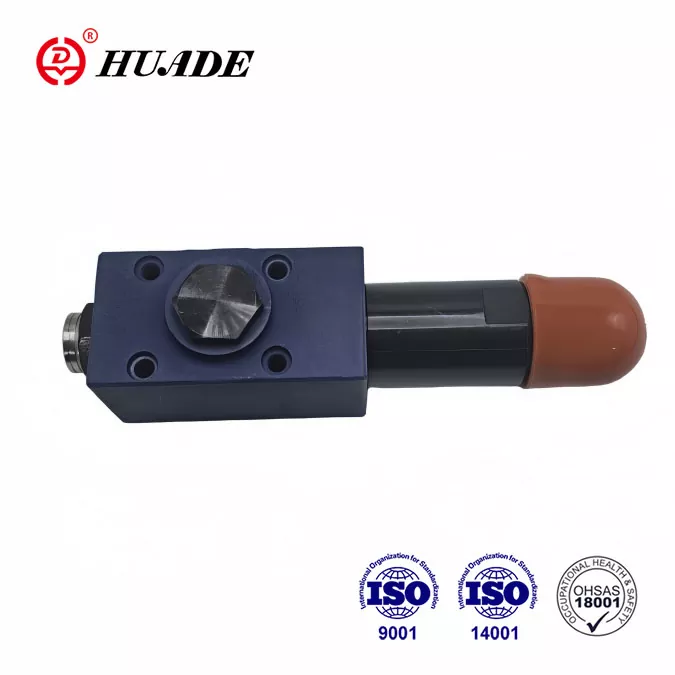

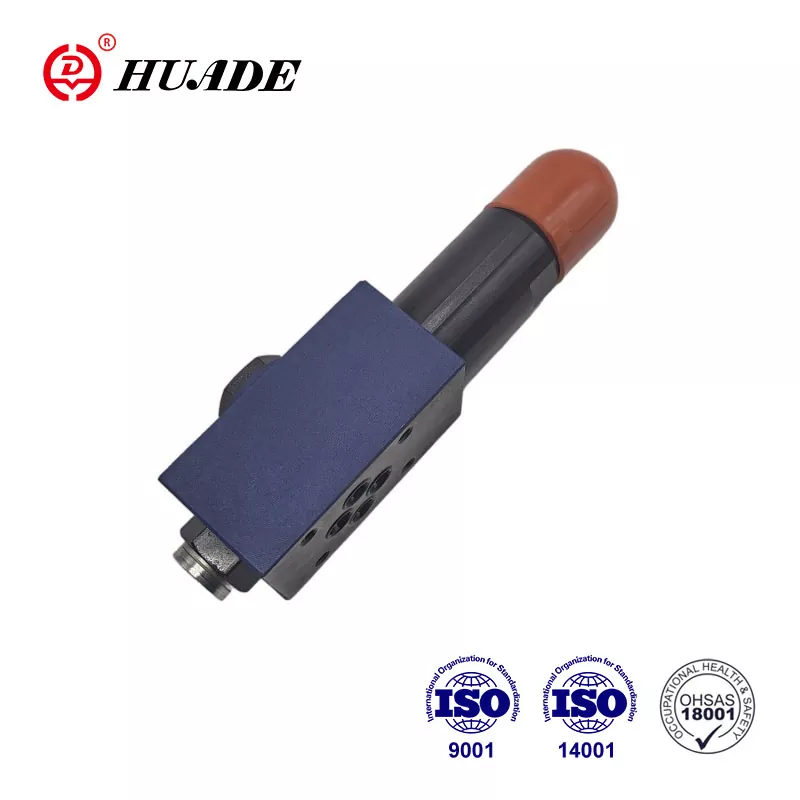

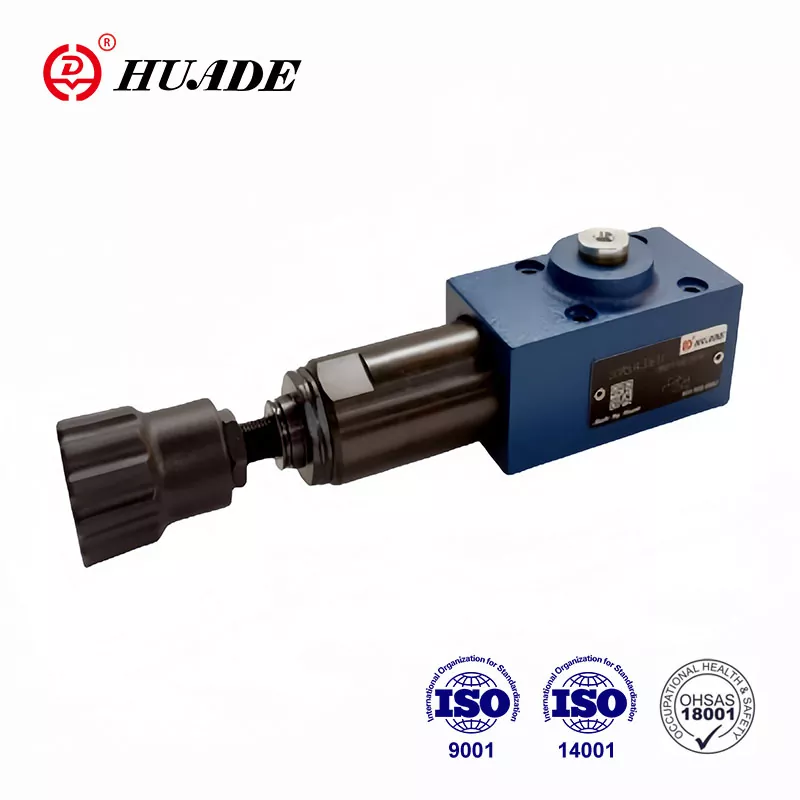

The main function of pressure reducing valve DR 6 DP is to control the pressure in the system. Due to long-term cooperation, DR 6 DP series by Huade® can replace the same type of Rexroth. The factory is a national key enterprise and has obtained a series of honorary certificates and patents in China. Huade Hydraulic focuses on the practicality of its products while ensuring the quality of its products. The prices of its pressure reducing valves are relatively cheap.
|
Max.operating pressure(Port P) (MPa) |
up to 31.5 |
|
Max. secondary pressure (Port A) (MPa) |
up to2.5; up to7.5; up to 15.0; up to 21.0; up to31.5 |
|
Max.back pressure( Ports T(Y)) (MPa) |
up to 16 |
|
Max.flow (L/min) |
up to 60 |
|
Pressure fluid Mineral oil |
Mineral oil (for NBR seal)or phosphate ester(for FPM seal) |
|
Viscosity range(mm ²/s) |
10~800 |
|
Pressure fluid-temperature range(℃) |
-30 to +80 |
|
Degree of contamination (um) |
Maximum permissible degree of contamination of the fluid is to NAS 1638 class 9. |
|
Weight (kg) |
approx.1.2 |
Features:
▶ Subplate mounting
▶ 5 pressure ratings
▶ 4 adjustment elements:
. Rotary knob
. Set screw with hexagon and protective cap
. Lockable rotary knob with scale
. Rotary knob with scale
▶ Check valve, optional
▶ Porting pattern to DIN 24 340, form D, ISO 5781 and CETOP - RP 121H
Application:
Pressure reducing valve type DR 6 DP is used to reduce the system pressure.
The valve type DR 6 DP is a 3-way direct operated pressure reducing valve with a pressure relief function on the secondary side.
The secondary pressure is set by the pressure adjustment element (4). At rest, the valve is normally open and the pressure fluid can flow unhindered from port P to port A. The pressure in port A is at the same time, via the control line (6), present at the spool area opposite to the compression spring(3). When the pressure in port A exceeds the pressure level set at compression spring (3), the control spool (2) moves into the control position and holds the set pressure in port A constant.
The control and pilot oil are taken from port A via control line (6).
If the pressure in port A still increases due to external forces on the actuator, the control spool (2) moves still further towards the compression spring (3).
This causes a flow path to be opened at port A via control land (8) on the control spool (2) to the tank. Sufficient pressure fluid then flows to tank to prevent any further rise in pressure.
The spring chamber (7) is always drained to tank externally via port T(Y).
For free return flow from port A to port P an optional check valve (5) can be fitted.
A pressure gauge connection (1), permits the secondary pressure at the valve to be monitored.
structure of DR 6 DP 1-50B
Symbols of DR 6 DP
