Pressure Reducing Valve Rexroth Interchangeable

Pressure Reducing Valve ZDR 6 D

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 4401 / DIN 24340
AVAILABILITY Factory Direct Stock
Pressure Reducing Valve ZDR 6 D

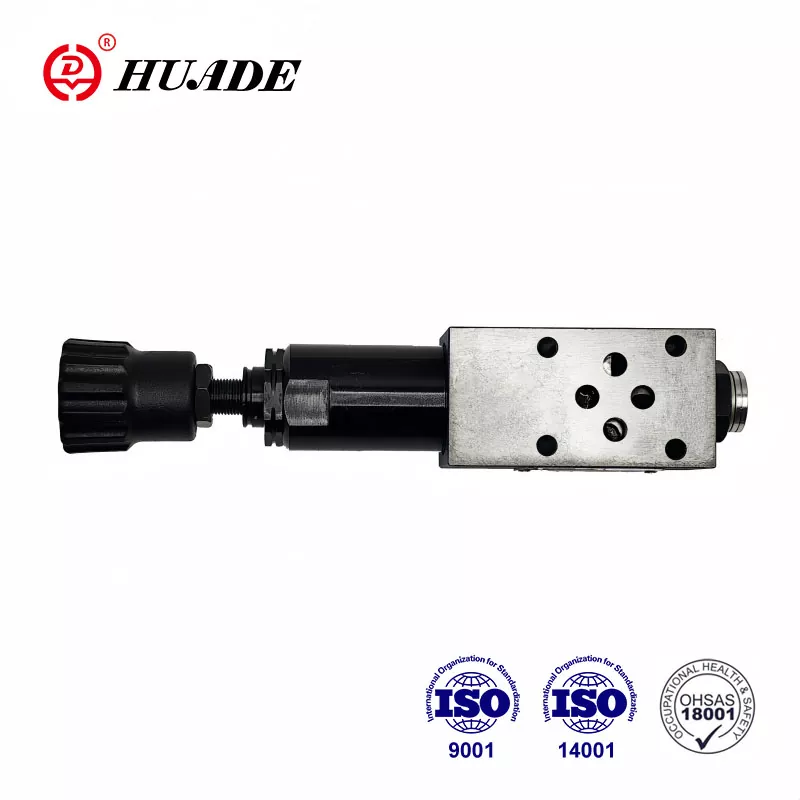

Pressure Reducing Valve ZDR 6 D - Image 2

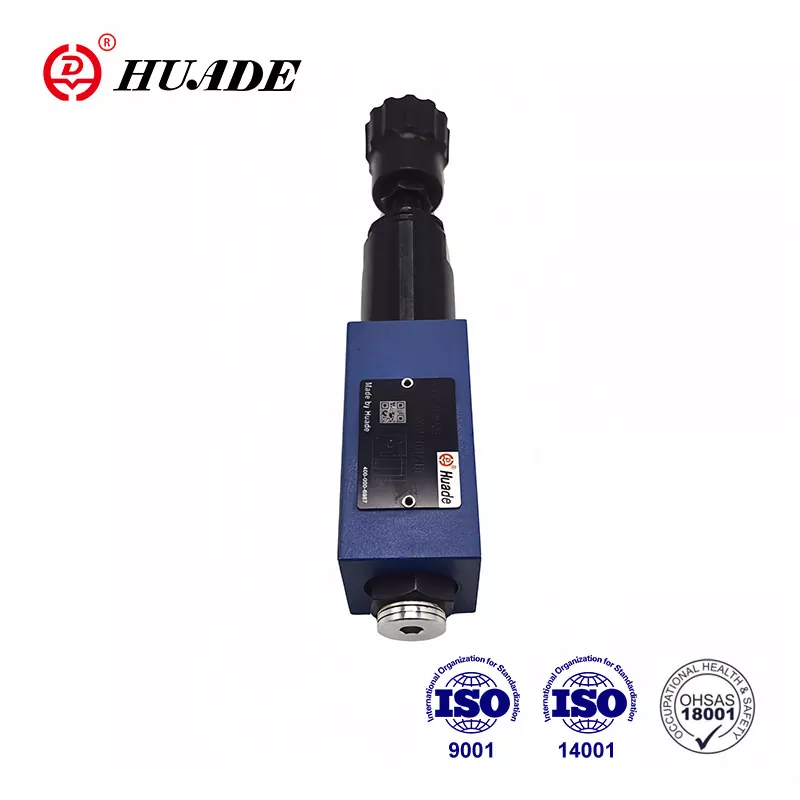

Pressure Reducing Valve ZDR 6 D - Image 3
TECHNICAL REPLACEMENT NOTICE

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PRESSURE-REDUCING-VALVE-ZDR-6-D equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features: Sandwich plate design, 4 pressure ratings, 3 adjustment elements (rotary knob, sleeve with hexagon, lockable rotary knob)
• Specifications: ZDR 6 D series, max operating pressure up to 31.5 MPa, secondary pressure up to 21.0 MPa, max flow up to 50.0 L/min
• Applications: System pressure reduction in industrial hydraulic systems, compatible with directional control valves

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry →
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
ISO 4401 Mounting ISO 4401 / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

Huade Hydraulic was founded in 1979. By introducing technology from Rexroth, Huade Hydraulic has now developed into China's most powerful hydraulic manufacturer. Pressure reducing Valve ZDR 6 D can replace the same series of Rexroth products. It has 3 adjustment elements with sandwich plate design. Compared with other similar products, Huade® pressure reducing valves has more stable performance in this field. Huade Hydraulic focuses on the practicality while maintaining a certain quality level, so that its products win wide market recognition with a lower price.

Mineral oil(for NBR seal)or phosphate ester(for FPM seal)

Maximum permissible degree of  contamination of the fluid is to NAS 1638,class 9. β10 ≥ 75

Up to 2.5,up to 7.5, up to 15.0, up to 21.0

Key Features

  • Sandwich plate design
  • 4 pressure ratings
  • 3 adjustment elements:
  • Rotary knob
  • Sleeve with hexagon and protective cap
  • Lockable rotary knob with scale
  • Pressure reduction in ports A, B or P
  • Check valve, optional
  • Porting pattern to DIN 24 340, form A, ISO 4401 and CETOP - RP 121H

Industrial Applications

  • Pressure Reducing Valve type ZDR 6 D is used to reduce the system pressure.
  • Section and symbol of Pressure Reducing Valve ZDR 6 D
  • Pressure reducing valves type ZDR 6 D.. are 3-way direct operated pressure reducing valves of sandwich plate design with a pressure relief function on the secondary side. The pressure reducing valve basically consists of housing (1), the control spool (2), a compression spring (3) and the adjustment element (4) as well as with an optional check valve.
  • The secondary pressure is set by the pressure adjustment element(4).
  • Model "ZDR6DA'
  • At rest, the valve is normally open, and fluid can flow unhindered from port A to port A1. The pressure in port A1 is at the same time via the control line present at the spool area opposite to the compression spring (3). When the pressure in port A1 exceeds the pressure level set at the compression spring (3) the control spool (2) moves into the control position against the compression spring (3) and holds the set pressure in port A1 constant.
  • The control pressure and pilot oil are taken from port A1 via control line.
  • If the pressure in port A1 rises still further due to external forces, the control spool (2) is moved still further towards the compression spring (3).
  • This causes a flow path to be opened at port A1 through control land (9) on the control spool (2) to tank. Sufficient fluid then flows to tank to prevent any further rise in pressure.The spring chamber (7) is always drained to tank externally via drilling (6) to port T (Y).
  • A pressure gauge connection (8) permits the secondary pressure at the valve to be monitored.
  • It is only possible to fit a check valve for free flow in ports A1 to A in version ‘DA’
  • Models ‘DP’ and ‘DB’
  • In model ‘DP’, the pressure is reduced in port P1. The control pressure and the pilot oil is taken internally from port P1.
  • In model ‘DB’, the pressure in port P1 is reduced, and the pilot oil taken from port B.
  • Attention!
  • In model DB, it must be ensured, that the pressure in port B is not higher than the set pressure when the directional valve is in position P to A. Otherwise, pressure in port A will be reduced.
  • structure of ZDR 6 DA1-40B
  • Symbols of ZDR 6 DP...-40B

Technical Parameters

Mechanical ratings and operating limits for the Pressure Reducing Valve ZDR 6 D:

Parameter / Dimension Name Value / Rating Specification
Pressure fluid Mineral oil(for NBR seal)or phosphate ester(for FPM seal)
Pressure fluid-temperature range(℃) -30 to +80
Viscosity range(mm ²/s) 10~800
Degree of fluid contamination (㎛) Maximum permissible degree of  contamination of the fluid is to NAS 1638,class 9. β10 ≥ 75
Max.operating Pressure(inlet) (MPa) up to 31.5
Secondary pressure(output) (MPa) Up to 2.5,up to 7.5, up to 15.0, up to 21.0
Back pressure port Y (MPa) up to 16.0
max.flow (L/min) up to 50.0
Weight (kg) approx.1.2
