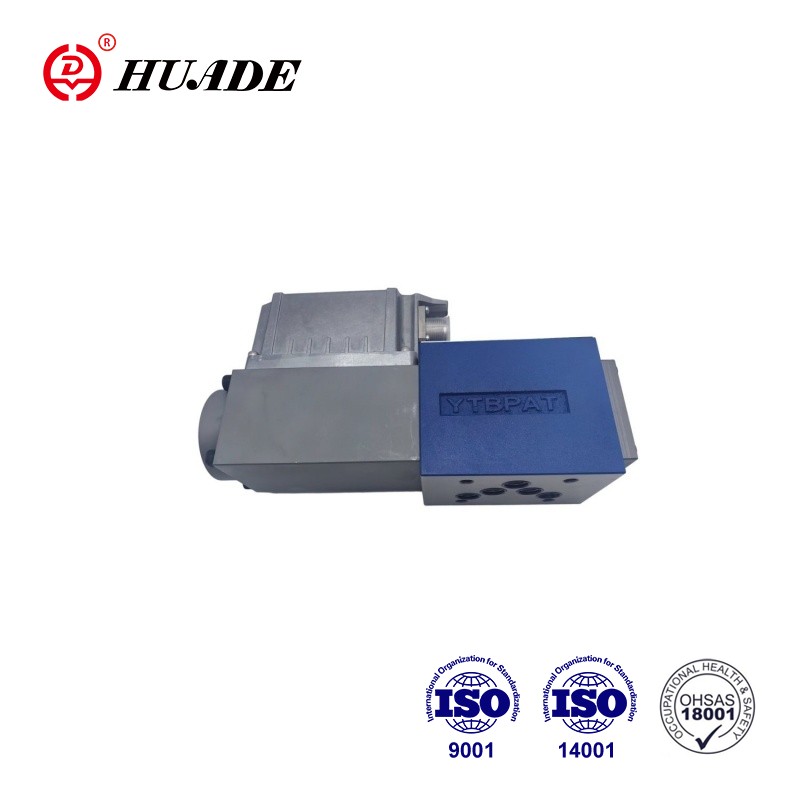

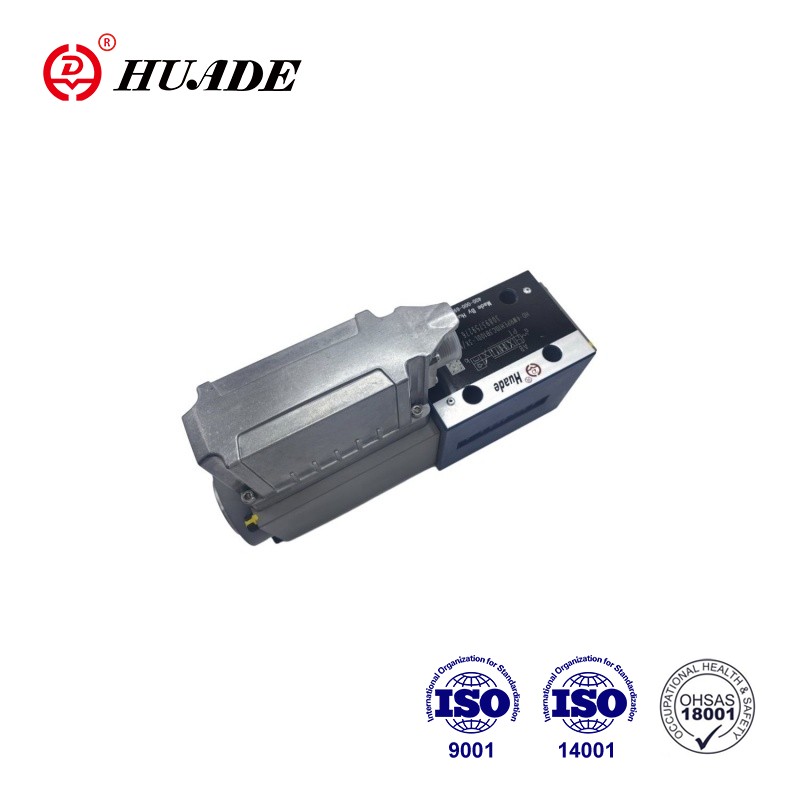

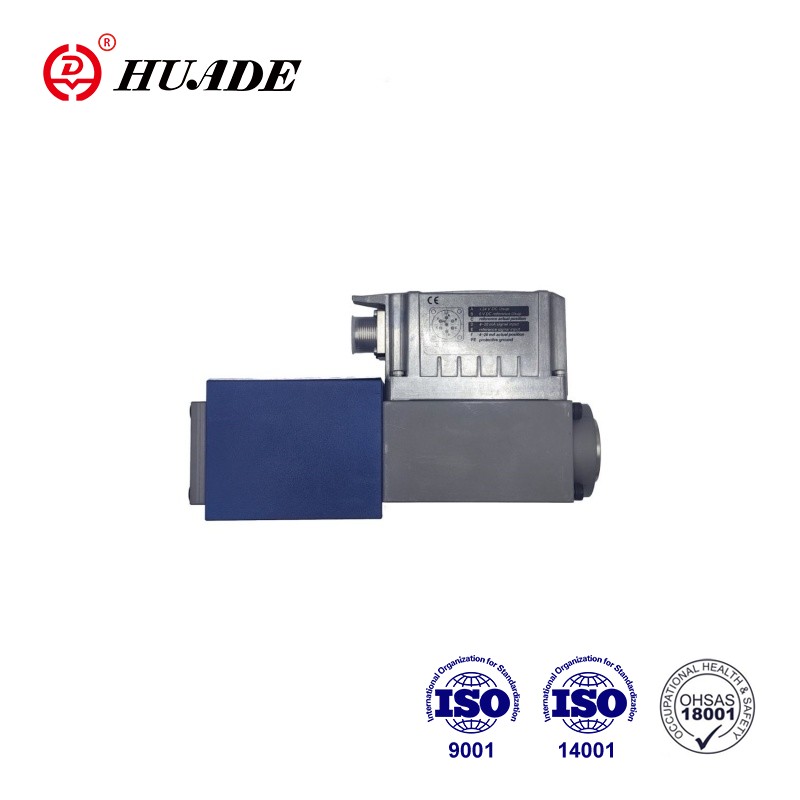

The 4WRPEH 10- 3X valve is a direct-acting directional control valve with electrical position feedback and integrated electronics (OBE). 4WRPEH 10- 3X is a subplate mounted valve with high response accuracy and is suitable for high-precision position, speed, and pressure control. The working principle of the direct-acting servo proportional valve can be summarized as: the valve core is directly driven by electromagnetic force to achieve precise control of fluid flow and pressure.
| Technical data | ||
| General | ||
| Type of connection | Subplate mounting | |
| Porting pattern | ISO 4401-05-04-0-05 | |
| Weight (kg) | 7.1 | |
| Installation position | Any | |
| Ambient temperature range (°C) | –20 … +60 | |
| Transport temperature(°C) | –30 … +80 | |
| Maximum storage time (Years) | 1 | |
| Maximum relative humidity (no condensation) (%) | 95 | |
| Protection class according to EN 60529 | IP65 (if suitable and correctly mounted mating connectors are used) | |
| Maximum surface temperature (°C) | 150 | |
| MTTFD value according to EN ISO 13849 (Years) | 150 (for further details see data sheet 08012) | |
| Sine test according to DIN EN 60068-2-6 | 10 ... 2000 Hz / maximum of 10 g / 10 cycles / 3 axes | |
| Noise test according to DIN EN 60068-2-64 | 20 … 2000 Hz / 10 gRMS / 30 g peak / 30 min. / 3 axes | |
| Transport shock according to DIN EN 60068-2-27 | 15 g / 11 ms / 3 shocks / 3 axes | |
| Shock according to DIN EN 60068-2-27 | 35 g / 6 ms / 1000 shocks / 3 axes | |
| Conformity | ▶ CE according to EMC directive 2014/30/EU, tested according to | EN 61000-6-2 and EN 61000-6-3 |
| ▶ RoHS directive | 2011/65/EU | |
| Hydraulic | |||
| Maximum operating pressure | ▶ Ports A, B, P (bar) | 350 | |
| ▶ Port T (bar) | 250 | ||
| Hydraulic fluid | See table on page 7 | ||
| Viscosity range | ▶ Recommended (mm2/s) | 20 … 100 | |
| ▶ Maximum admissible (mm2/s) | 10 … 800 | ||
| Hydraulic fluid temperature range (flown-through) (°C) | -20 … +70 | ||
| Maximum admissible degree of contamination of the hydraulic fluid; cleanliness class according to ISO 4406 (c) | Class 18/16/13 | ||
| Rated flow (∆p = 35 bar per control edge) (L/min) | 50 | 100 | |
| Limitation of use (∆p) with regard to the transition to failsafe (values apply to summated edge) | ▶ Symbols C3, C5, C (bar) | 350 | 140 |
| ▶ Symbols C1, C4 (bar) | 250 | 100 | |
Features:
▶Reliable - proven and robust design
▶Safe - fail-safe position of the control spool in switched-off condition
▶Energy-effcient - no pilot oil demand
▶High quality - control spool and sleeve in servo quality
▶Flexible - suitable for position, velocity and pressure control
▶Precise - high response sensitivity and little hysteresis
▶IO-Link interface, optional
▶IO-Link interface, optional. Use of the valve with
IO-Link as a shut-off element up to category 3,
PL d according to EN 13849-1.
Application:
Proportional directional servo valve 4WRPEH10-3X is widely used in the field of industrial automation,engineering machinery and marine engineering.
Set-up
The HD-4WRPEH high-response valve mainly consists of:
▶ Valve housing with control spool and sleeve in servo
quality (1)
▶ Control solenoid with position transducer (2)
(optionally with electronics protection membrane (6))
▶ On-board electronics (OBE) (3) with analog or IO-Link interface (4) (optionally with damping
plate (5))
Function
The integrated electronics (OBE) compares the specified command value to the position actual value. In case of control deviations, the stroke solenoid will be activated. Due to the changed solenoid force, the control spool is adjusted against the spring. Stroke/control spool cross-section is controlled proportionally to the command value. In case of a command value presetting of 0, the electronics adjusts the control spool against the spring to central position. In deactivated condition, the spring is untensioned to a maximum and the valve is in fail-safe position.
Safety function (IO-Link shut-off)
By shutting off the supply voltage at the IO-Link master (Class B-Port), pins 2 and 5, the IO-Link valve can be safely switched off. After shut-off of the supply voltage, the control spool of the valve is set to fail-safe position.
In order to also guarantee the hydraulic prerequisite for the safety shut-down, the overlap of control spool/sleeve must also be considered.
Sufficient overlap is guaranteed by the symbols C3, C5, C4 and C1.
The safe shut-off is not part of the IO-Link valve and must be taken into account for the safe design of the machinery.
Control solenoid shut-off
In case of the following errors, the control solenoids are de-energized by the integrated electronics (OBE) and the control spool is set to fail-safe position:
▶ Falling below the minimum supply voltage
▶ Only at interface "F1":
– Falling below the minimum current command value of 2 mA (includes cable break of the command value line (current loop))
▶ Only at interface "L1":
– Enable inactive, communication interruption
(watchdog)
– In case of internal IO-Link error
▶ Only at interface "C6":
– Additionally, release inactive
Damping plate "D"
The damping plate (5) reduces the acceleration
amplitudes on the on-board electronics (frequencies >300 Hz).
Notice:
Using the damping plate is not recommended for applications with mainly low-frequency excitation <300 Hz.
Electronics protection membrane "-967"
– To prevent condensate formation in the housing of the integrated electronics (OBE), an electronics protection membrane (6) can be used.
Recommended for use outside industry-standard conditions with high ambient air humidity and
significant cyclic temperature changes (e.g. outdoors).
Symbols of Proportional Directional Servo Valve 4WRPEH 10-3X
