Proportional Directional Valve 4WREE6-3X
  • Proportional Directional Valve 4WREE6-3XProportional Directional Valve 4WREE6-3X

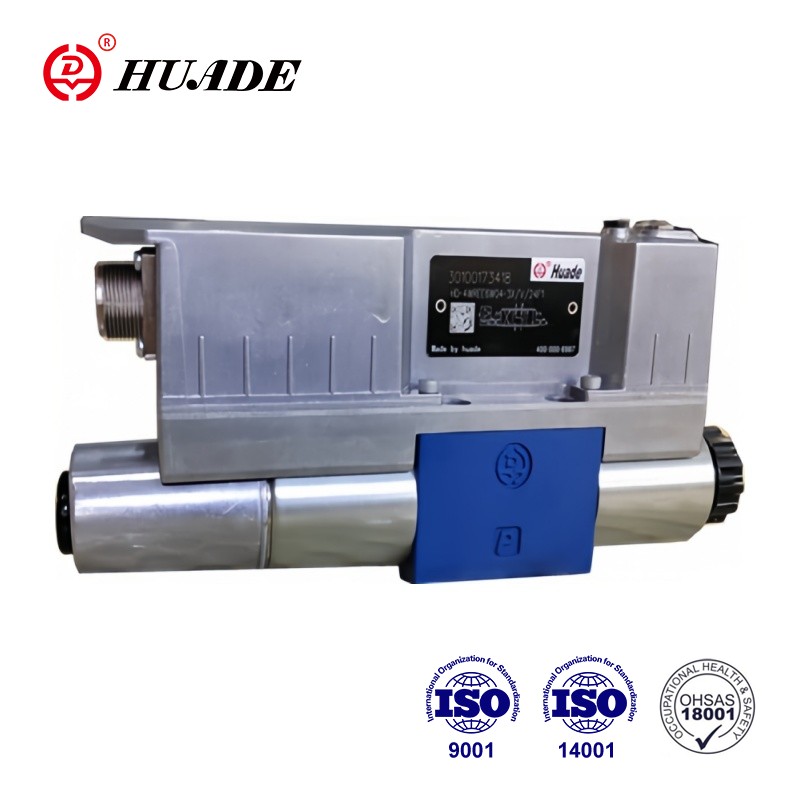

Proportional Directional Valve 4WREE6-3X

Huafilter is a professional supplier of hydraulic products. Huade brand proportional directional valve 4WREE6-3X offers high cost-effectiveness. Through introducing Rexroth technology and independent research and development, hydraulic proportional valves offered by Huade Hydraulic which have win great reputation. As the approved distributor of Huade Hydraulic, we aim to providing provide customers with high-quality and low-cost hydraulic valves and good services.

The type 4WREE6-3X valve is a direct operated proportional directional valve with electrical position feedback and integrated electronics (OBE). 4WREE6-3X type proportional valves have passed CE certification. Maximum operating pressure is up to 350 bar. It is one of Huade Hydraulic’s leading products. This 4WREE6-3X valve has stable performance and relative cheap price.

Product parameter of Proportional Directional Valve 4WREE6-3X

General
Weight ▶ Valve with two solenoids (kg) 2.6
▶ Valve with one solenoid (kg) 2.1
Installation position any, preferably horizontal
Ambient temperature range (℃) -20 … +60
Storage temperature range with UV protection (℃) +5 … +40
Transport temperature (℃) –30 … +80
Maximum storage time (Years) 1
Sine test according to DIN EN 60068-2-6 10 ... 2000 Hz / maximum of 10 g / 10 cycles / 3 axes
Noise test according to DIN EN 60068-2-64 20 ... 2000 Hz / 10 g RMS / 30 g peak / 30 min. / 3 axes
Transport shock according to DIN EN 60068-2-27 15 g / 11 ms / 3 shocks / 3 axes
Shock according to DIN EN 60068-2-27 15 g / 11 ms / 1000 shocks / 3 axes
Maximum relative humidity (no condensation) % 95
Maximum solenoid surface temperature (℃) 150 (individual operation)
MTTFd value according to EN ISO 13849 (Years) 150
Conformity ▶ CE according to EMC directive 2014/30/EU, tested according to EN 61000-6-2 and EN 61000-6-3 ▶ RoHS directive 2015/65/EU ▶ REACH ordinance (EC) no. 1907/2006
Environmental compatibility ▶ Climate Environmental audit according to EN 60068-2

hydraulic
Maximum operating pressure ▶ Port A, B, P bar 350
▶ Port T bar 210
Maximum flow (recommended) (L/min) 80
Rated flow (∆p = 10 bar) (L/min) 4; 8; 16; 32
Hydraulic fluid see table page 15
Hydraulic fluid temperature range(℃) ▶ admissible –20 … +70
▶ recommended –40 … +50
Viscosity range (mm2/s) ▶ admissible ℃ 20 … 380
▶ recommended 30 … 46
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) class 20/18/15

Hydraulic fluid Classification Suitable sealing materials Standards
Mineral oils HL, HLP, HLPD, HVLP, HVLPD NBR, FKM DIN 51524
Bio-degradable ▶ Insoluble in water HETG FKM ISO 15380
HEES FKM
▶ Soluble in water HEPG FKM ISO 15380
Flame-resistant ▶ Water-free HFDU (glycol base) FKM ISO 12922
HFDU (ester base) FKM
HFDR FKM
▶ Containing water HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) NBR ISO 12922

Product Feature of Proportional Directional Valve 4WREE6-3X


Features:

▶4/2 or 4/3-way version

▶For subplate mounting

▶Porting pattern according to ISO 4401-03-02-0-05

▶Control of flow direction and size

▶Operation by means of proportional solenoids with central thread

▶Spring-centered control spool

▶Integrated control electronics (OBE) with voltage or current input ("A1" and/or "F1")

Section and symbol of Proportional Directional Valve 4WREE6-3X


Set-up

The valve basically consists of:

▷Housing (1) with connection surface

▷Control spool(2) with compression springs (3 and 4) and spring plate (5 and 6)

▷Solenoids (7 and 8) with central thread

▷Position transducer (9)

▷Integrated electronics (13)

▷Electric zero point adjustment (12) accessible via the rubber plug

Function:

▷With de-energized solenoids (7 and 8), central position of the control spool (2) by compression springs (3 and 4) between spring plates (5 and 6).

▷Direct operation of the control spool (2) by controlling a proportional solenoid, e.g. solenoid "b" (8)

-Displacement of the control spool (2) to the left proportional to the electric input signal

-This opens the connection from P to A and B to T via orifice-type cross-sections with progressive flow characteristic

In the de-energized condition, the control spool(2) is held in a mechanical central position by the return springs of the solenoids. With control spool symbol "V", this position does not correspond to the hydraulic central position! When the electric valve control loop is closed, the control spool is positioned in the hydraulic central position.

Valve with 2 spool positions (version "4WREE...A...")

The function of this valve version basically corresponds to the valve with three spool positions. The 2 spool position valves are, however, only equipped with solenoid "a"(7). Instead of the 2nd proportional solenoid, there is a plug screw (10).

Pressure compensation element in the OBE "-967".

To prevent condensate formation in the housing of the integrated electronics (OBE), an electronics protection membrane (11) can be used.

Recommended for use outside industry-standard conditions with high ambient air humidity and significant cyclic temperature changes (e.g. outdoors).

Symbol of Proportional Directional Valve 4WREE-3X
