Proportional flow control valve 2FRE6 controls the flow rate steplessly through 0~10V / 4~20mA signal to achieve precise speed regulation. 2FRE6 proportional valve has a pressure compensation function, which can ensure that the flow rate is not affected by load pressure fluctuations and maintain a stable flow rate. This 2FRE6 valve is suitable for hydraulic systems with limited space and for dynamic flow regulation requirements.
Proportional Flow Control Valve 2FRE6
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth PROPORTIONAL-FLOW-CONTROL-VALVE-2FRE6 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Flow control is possible in both directions
• Specifications:Proportional Flow Control Valve 2FRE6 series,
• Applications:industrial automation & machine tools, excavators/loaders
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Valve with a pressure compensator for the pressure compensated control of a flow
- Actuation via a proportional solenoid
- With electrical position feedback of the control orifice
- The position transducer coil can be axially moved making the zero point adjustment of the control orifice easy, without having to touch the electronics (electrical-hydraulic)
- Flow control is possible in both directions by using a rectifier sandwich plate
Industrial Applications
- Two-way proportional flow control valve 2FRE6 is widely used in industrial automation & machine tools, excavators/loaders and other engineering machinery, metallurgy & heavy equipment, testing equipment & laboratories, etc.
- The type 2FRE ...proportional flow control valves have a 2-way function. They can, from a applied electrical command value, regulate flow which is pressure and temperature compensated.
- They basically comprise of the housing (1), proportional solenoid with inductive position transducer (2), measuring orifice (3), pressure compensator (4) as well as the optional check valve (5).
- Proportional flow control valve 2FRE 6 B
- The setting of the flow is determined (0 to 100 %) at the command value potentiometer. The applied command value adjusts, via the amplifier as well as the proportional solenoid, the measurement orifice(3). The position of the measurement orifice (3) is obtained by the inductive position transducer. Any deviations from the command value are compensated for by the feedback control.
- The pressure compensator (4) holds the pressure drop at the measurement orifice (3) at a constant value. The flow is, therefore load compensated.
- The small temperature drift is achieved due to the design of the measurement orifice.
- At a 0 % command value the measurement orifice is closed.
- In the case of a loss of power or a cable break at the position transducer the measurement orifice closes.
- From a 0 % command value a jump free start is possible. Via two ramps within the electrical amplifier, it is possible to delay the opening and closing of the measurement B
- Orifice.
- Via the check valve (5) a free flow is possible from B to A.

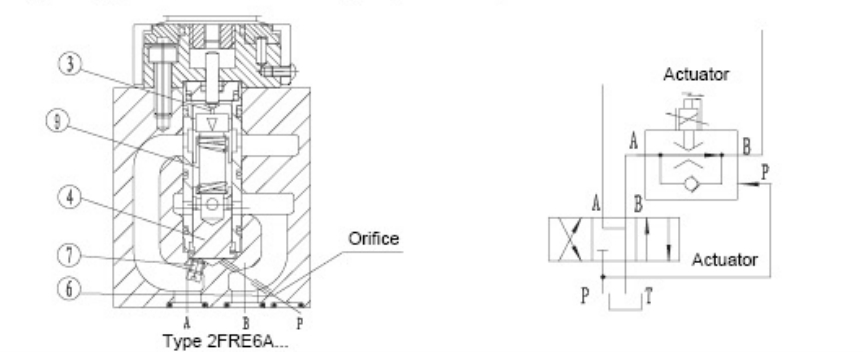

- Proportional flow control valve type 2FRE 6 A:
- The function of this valve is in principle the same as valve type 2FRE 6 B:
- To suppress the start-up jump when the measurement orifice (3)(command value > 0%) is open, there is provision for the pressure compensator (4) to be held closed via port P(6). The internal connection (7) between port A and the pressure compensator (4) is plugged. Via the external port P(6) the pressure in port P, before the directional valve (8) acts on the pressure compensator (4) and holds it against the spring force(9) in the closed position. If the directional valve (8) is switched over from P to B, then the pressure compensator(4) moves from the closed position
- into the regulating position and the start-up jump is thereby avoided.
- Symbols of Proportional Flow Control Valve 2FRE6
Technical Parameters
Mechanical ratings and operating limits for the Proportional Flow Control Valve 2FRE6:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Hydraulic | Hydraulic |
| Hysteresis | ＜±1%Qmax |
| Repeatability | ＜1%Qmax |
| Degree of contamination (μm) | ≤20 |
| Pressure fluid | Mineral oil(for NBR seal), Phosphate ester (for FPM seal) |
| Viscosity range (mm2/s) | 2.8 to 380 |
| Pressure fluid temperature range (℃） | -20~+70 |
| Installation | optional |
| Electrical | Electrical |
| Voltage type | DC |
| Coil resistance of solenoid (Ω) | Cold value at 20℃ 5.4, Max warm value 8.2 |
| Max. Power(VA) | 50 |
| Inductivity (mH) | 6 to 8 |
| Oscillator frequency (Khz) | 2.5 |
