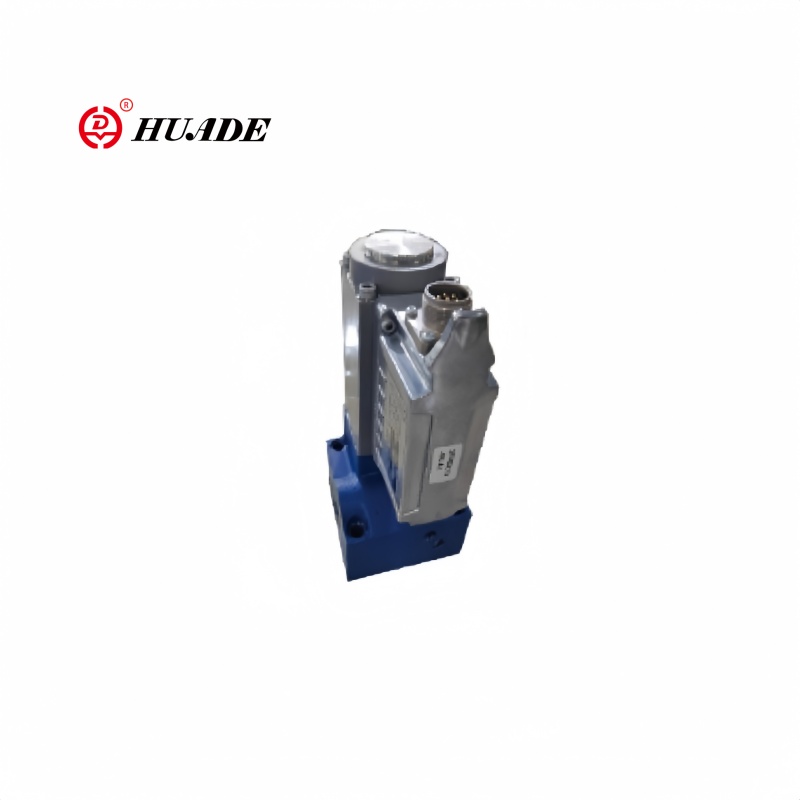

Proportional flow valve 3FREEZ-1X is a high-precision fluid control component, which is usually used in industrial automation systems that require precise flow regulation or flow ratio distribution. Valve 3FREEZ-1X is an electronically controlled proportional regulator (0-10V/4-20mA signal input). The pressure can usually reach 315Bar, suitable for high-pressure hydraulic systems. Proportional flow valve 3FREEZ-1X valve can be integrated with PLC and DCS systems and supports MODBUS and other communication protocols. The proportional valve 3FREEZ-1X controls the flow rate through the proportion of electrical signals, realizes stepless speed regulation of the actuator, and improves the response accuracy of the system.

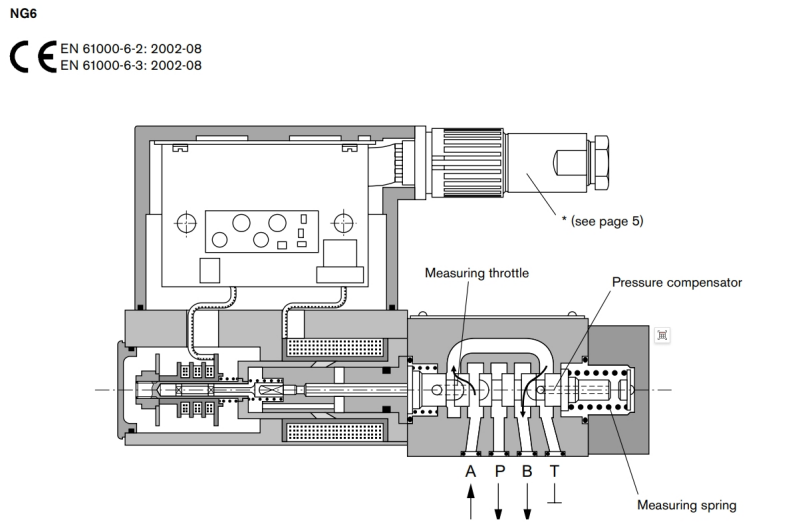

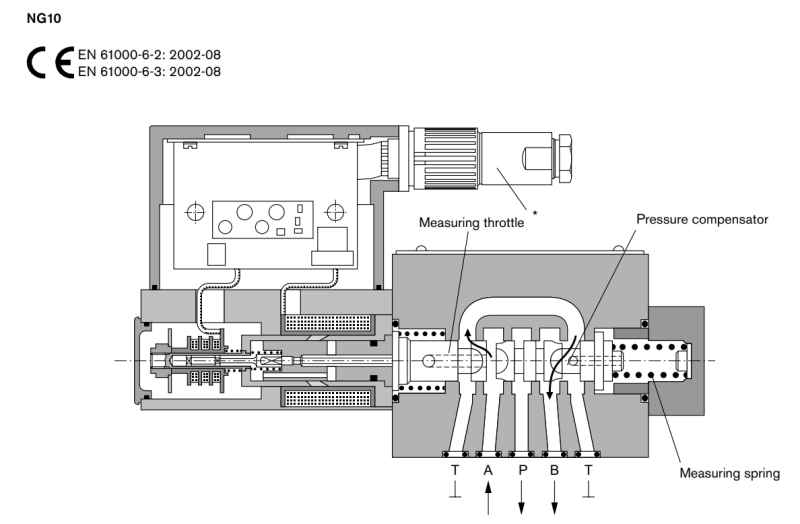

Directly controlled flow control valves NG6 and NG10 with on-board electronics and inductive position transducer
With position control, minimal hysteresis < 1 %, see Technical Data
The 3-way function is determined by how the hydraulic ports are assigned (residual flow runs through port P, 3rd way)
Adjustable by means of the controlled solenoid position, the position transducer and the on-board electronics
For subplate attachment, mounting hole configuration NG6 to ISO4401-03-02-0-94,NG10 to ISO 4401-05-04-0-94
Subplates as per catalog sheet,RE 45053 for NG6, RE 45055 for NG10 (order separately)
Plug-in connector to DIN 43563-AM6, see catalog sheet RE 08008 (order separately)
Data for the on-board trigger electronics
