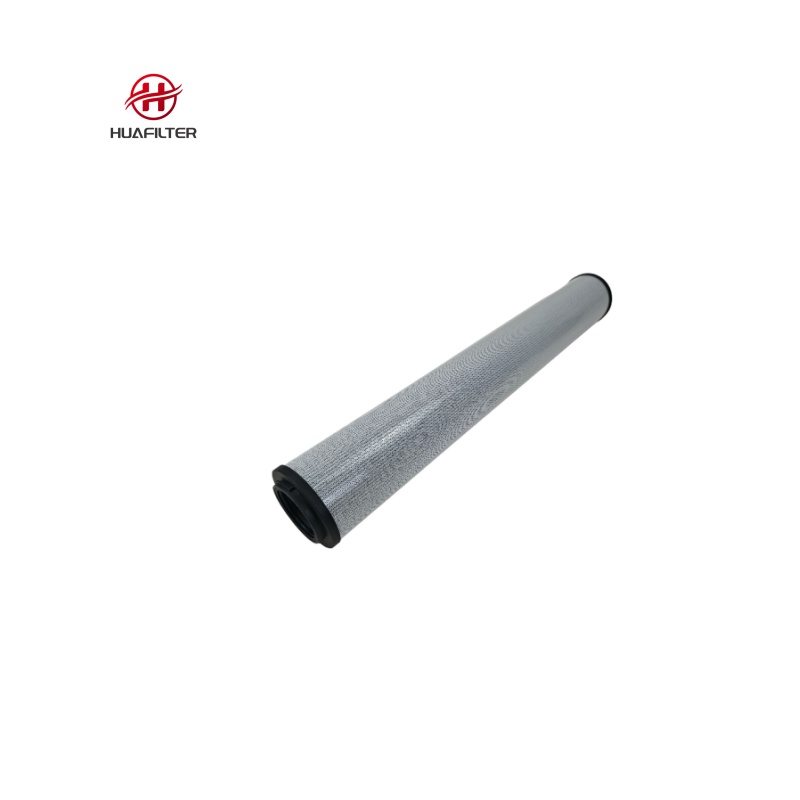

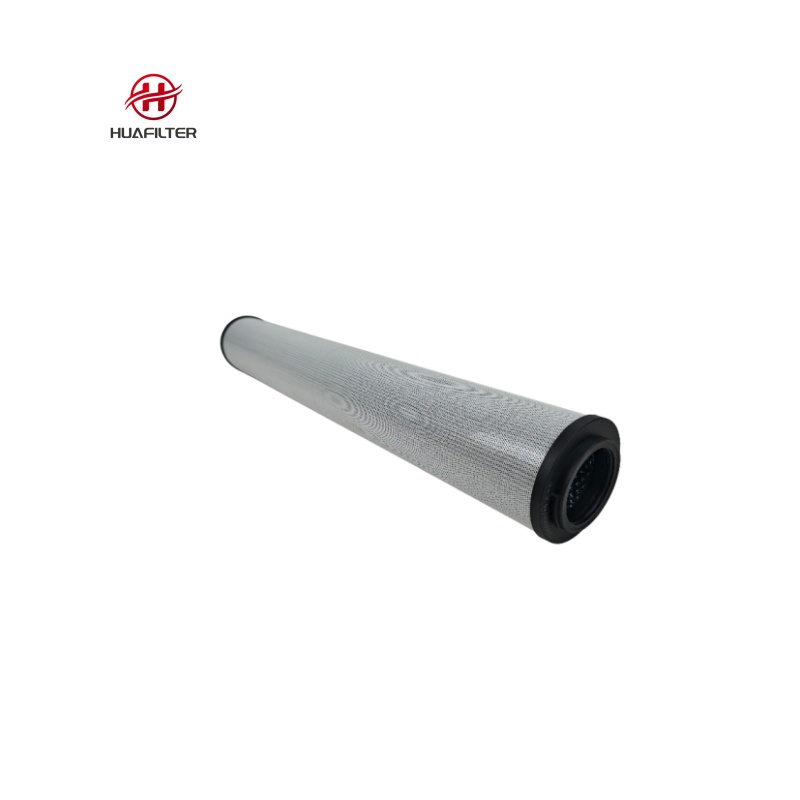

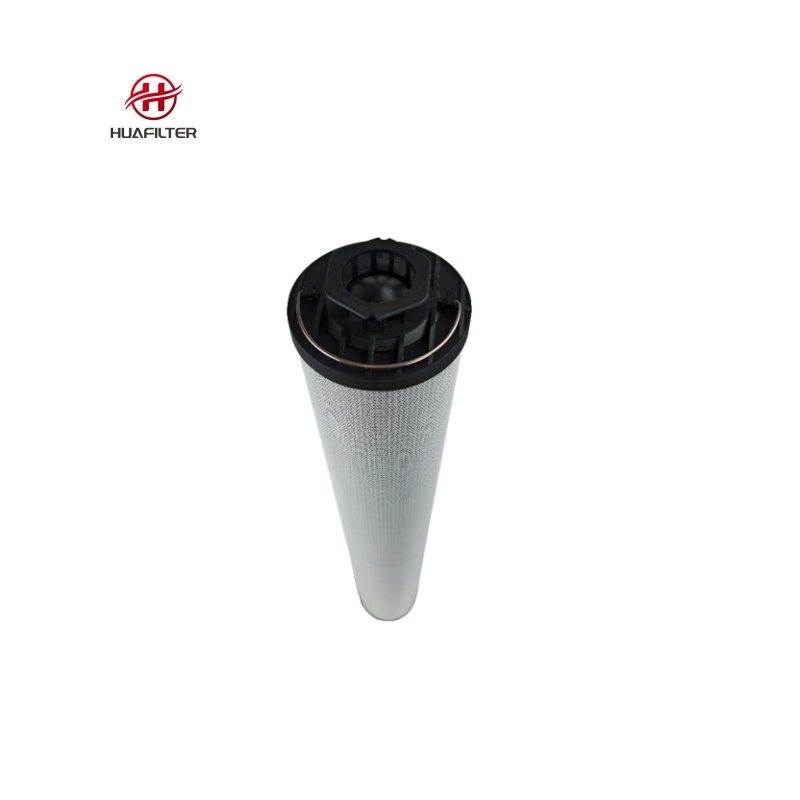

The replacement for Hydac 1300R010ON filter element is made of folded glass fiber and the frame is stainless steel, which has high temperature resistance. Its working temperature is between -30 and 100℃. This replacement filter element is suitable for a variety of hydraulic oil and emulsion filtration scenarios. The replacement filter element performs well in harsh environments, such as high temperature, high pressure or corrosive media, and can still maintain stable filtering performance.
Replacement for Hydac 1300R010ON
TECHNICAL REPLACEMENT NOTICE
This replacement filter element is a 100% direct drop-in replacement for REPLACEMENT-FOR-HYDAC-1300R010ON. Dimensions, filter media materials, and micron ratings are identical or superior to OEM specifications, designed for critical hydraulic fluid filtration.
• Product features:Compact structure, small size, easy to install and maintain.
• Specifications:Replacement for Hydac 1300R010ON series,
• Applications: metallurgy, hydraulic and pneumatic systems,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Compatible Replacement
Accurate dimensions & performance
✓
Direct Fit Element
Direct brand interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Made of high-quality filter material, it has the characteristics of high filtration efficiency and long service life.
- Compact structure, small size, easy to install and maintain.
- Suitable for a variety of working media, such as hydraulic oil, phosphate ester hydraulic oil, emulsion, etc.
Industrial Applications
- Replacement for Hydac 1300R010ON return filter element is widely used in metallurgy, hydraulic and pneumatic systems, automation control and other fields. In the metallurgical industry, this filter element is used for filtering the hydraulic systems of rolling mills and continuous casting machines; in hydraulic systems, it is used as a return oil filter to protect hydraulic pumps and valve components; at the same time, it can also be used as a matching filter element for pressure switches in automation control systems.

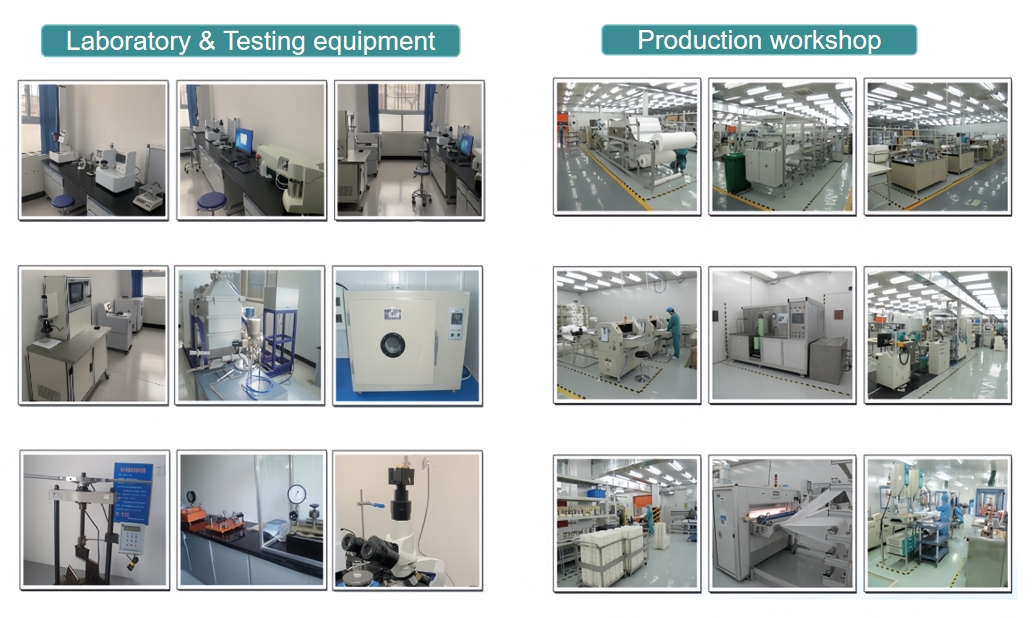

- Techniacl Equipment
Technical Parameters
Mechanical ratings and operating limits for the Replacement for Hydac 1300R010ON:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Technical Data | Technical Data |
| Efficiency 1 | 10μ@β200 |
| Efficiency 2 | 12μ@β1000 |
| Style | Return line element |
| Out Diameter | 143.5mm |
| Inner Diameter | 96.5mm |
| Length | 483mm |
| Media Type | Glass Fiber |
| Flow Direction | Out-in |
| Collapse Pressure | 20 bar |
| Seal | Nitrile |
| Temperature Range | -30~+100℃ |
