The threaded solenoid valve is a direct-acting solenoid operated directional spool valve as a standard type of wet DC or AC solenoid with a removable coil. Its working principle is based on the action of electromagnetic force. When the electromagnetic coil is energized, an electromagnetic force is generated to attract the armature, which in turn drives the valve core to move, thereby changing the flow direction of the fluid medium or opening/closing the passage. By controlling the power on and off of the electromagnetic coil, the precise switching or switching function of the fluid medium can be achieved.
Threaded Solenoid Valve
TECHNICAL REPLACEMENT NOTICE

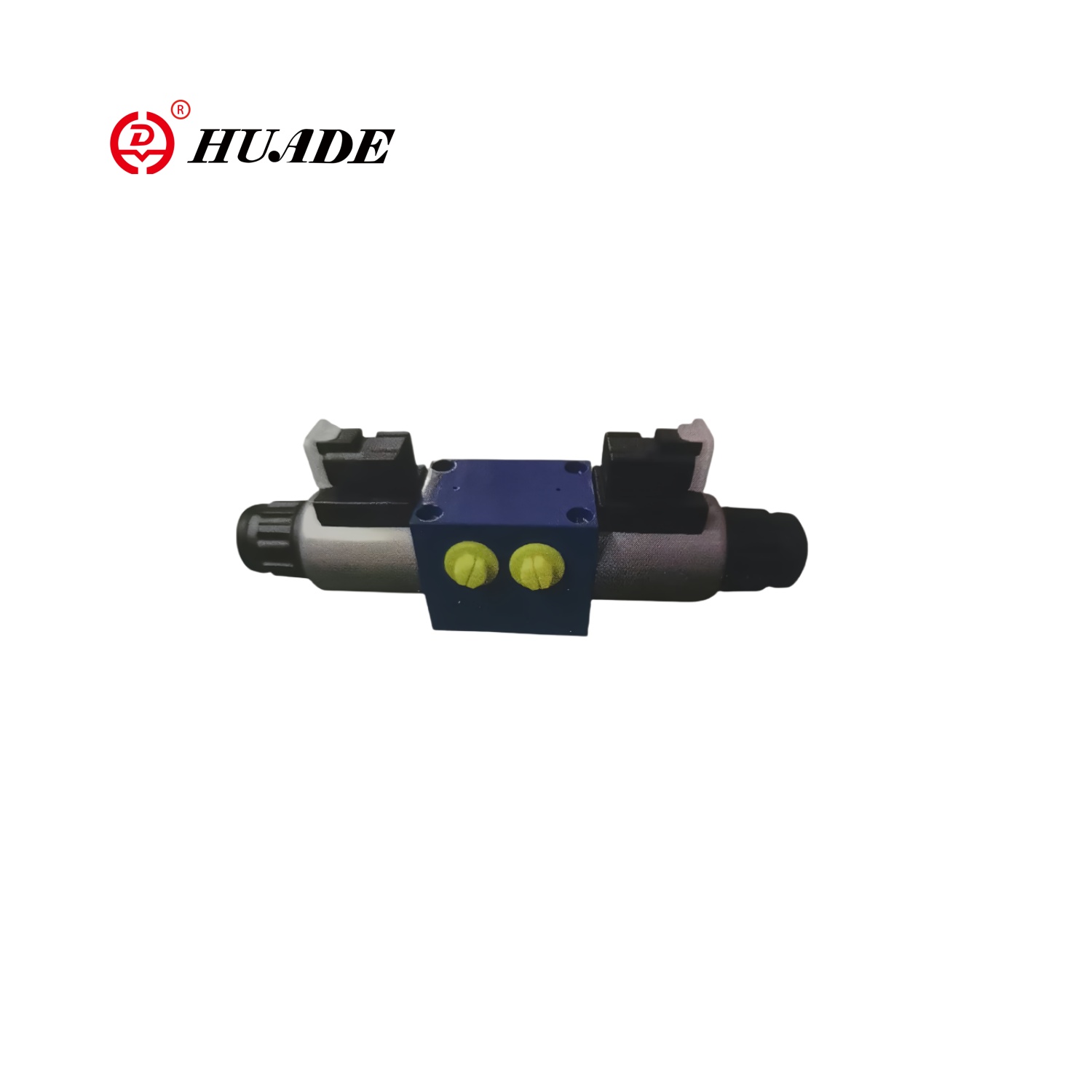

This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth THREADED-SOLENOID-VALVE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:emergency operation
• Specifications:Threaded Solenoid Valve series,
• Applications:refrigeration equipment, sewage treatment,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- the electromagnet can be rotated 90°
- the coil can be replaced without adding oil
- you can choose to connect individually or centrally
- optional manual emergency operation
- threaded connection, compact structure
Industrial Applications
- Huade’s threaded electromagnetic reversing valves are widely used in many fields, such as automated production lines, environmental protection equipment, refrigeration equipment, sewage treatment,petrochemicals.
Technical Parameters
Mechanical ratings and operating limits for the Threaded Solenoid Valve:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Maximum working pressure - A、B、P | to 315 bar |
| Maximum working pressure - T | to 210bar(DC), to 160 bar(AC) If the working pressure exceeds the allowable pressure of valve port T, for valve cores A and B, port T must be used as an oil discharge port |
| Maximum flow - 40L/min | 40L/min |
| Hydraulic fluid - Mineral oil, phosphate ester oil | Mineral oil, phosphate ester oil |
| Medium temperature - -30~+80℃ | -30~+80℃ |
| Voltage Type - DC | AC |
| Voltage Type - 12、24、42、60、96、110、180、205、220 | 42、110、120、230、50/60HZ |
| Switching frequency - to 15000/h | to 7200/h |
| Insulation requirements - IP65 | IP65 |
| Note: Electrical connections must be grounded | Note: Electrical connections must be grounded |
