The ZRL series intelligent dual-line distributor is the grease filling actuator of the ZR1601-Web wireless intelligent lubrication system. It is responsible for delivering the grease to each lubrication point accurately and timely, and works in conjunction with the control system of the lubrication pump and the wireless base station. Through wireless send information such as the temperature, angle, signal value, and internal action status of its own installation environment to the server software platform for storage and analysis. The precise oil supply of each lubrication point requires a distributor, so the quality and function of the distributor are directly related to the operating efficiency of the system.
- Withstand voltage rating:≤40Mpa
- Applicable grease viscosity:0#-3#
- Minimum opening pressure:2Mpa
- Working temperature:-30ºC-+100ºC
- Protection level:IP68
- Sealing requirements:
In the long-term working environment below 40Mpa, the oil leakage point of the distributor is less than 2%
- Surface treatment:
PTFE spray corrosion technology, humid environment for 6 months corrosion depth body
≤1mm
- Battery life:20ºC≥18months,80ºC≥8months(seethe figure below for detailed data)
| mode | oil outlets | Overall dimensions （mm） | Thread size of oil inlet | Thread size of oil outlet | Single amount of oil | RemarksMaterial | ||
| A | B | C | ||||||
| ZRL-2-4SS | 4 | 84.9 | 81 | 68 | G3/8 | G1/4 | 2.5 ml | Stainless steel |
| ZRL-3-6SS | 6 | 116.7 | ||||||
| ZRL-4-8 SS | 8 | 148.5 | ||||||

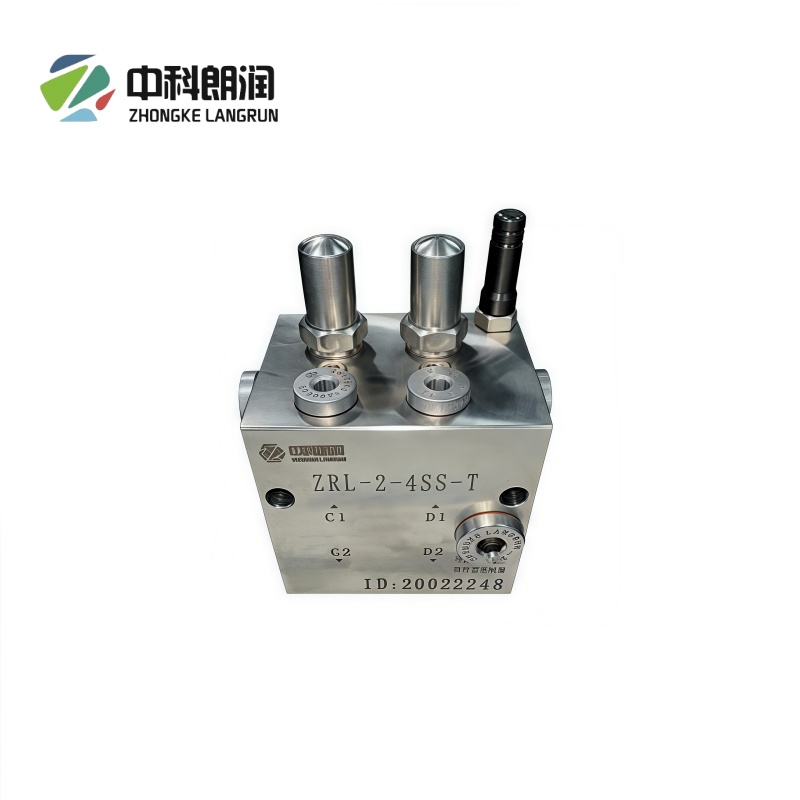

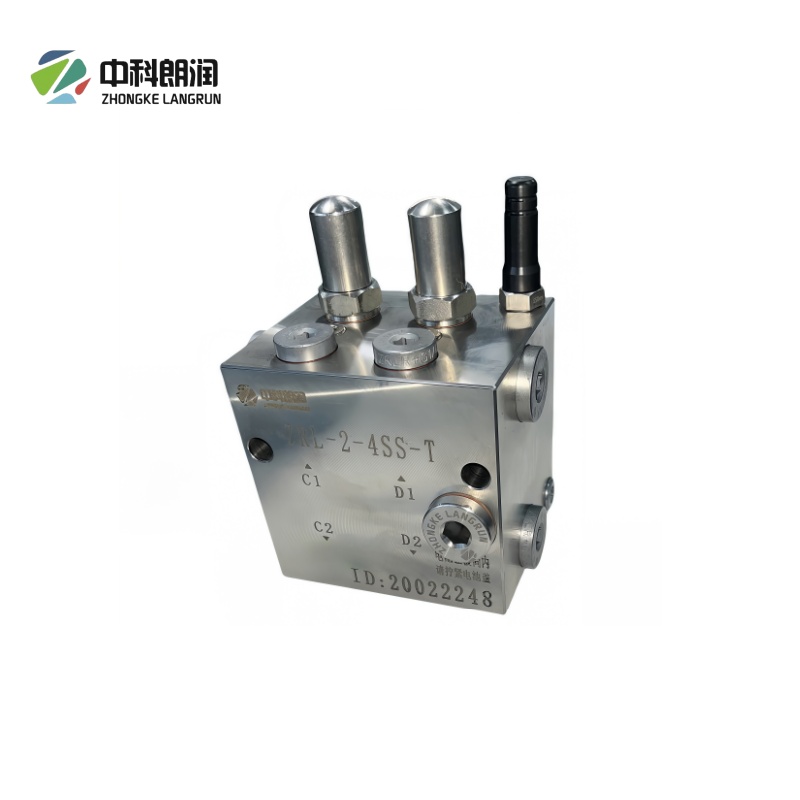

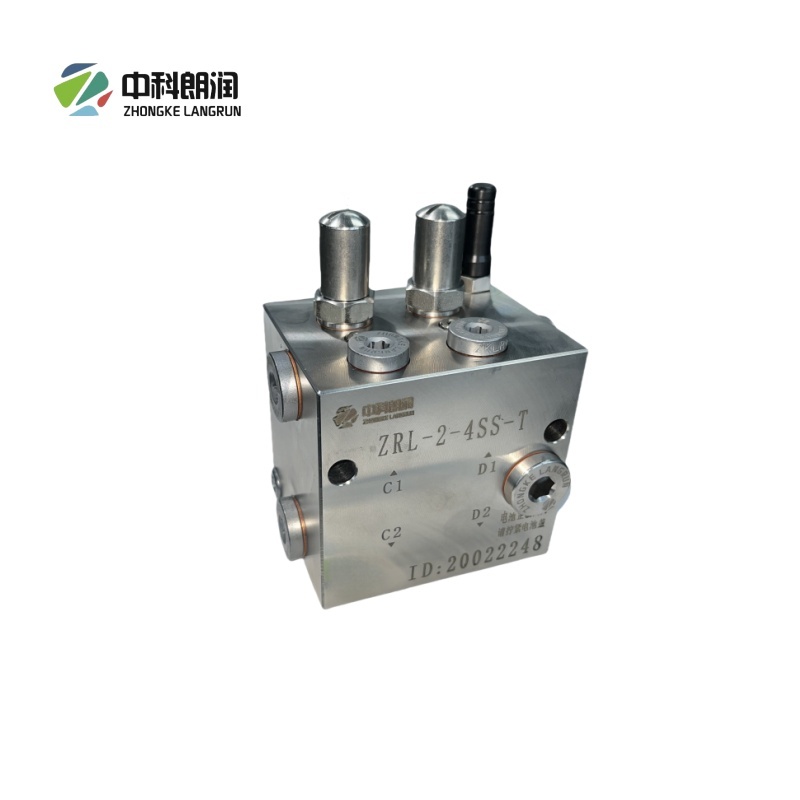

| ZRL-2-4SS-T | 4 | 84.9 | 1.5ml | Stainless steel | ||||
| ZRL-3-6 SS-T | 6 | 116.7 | ||||||
| ZRL-4-8 SS-T | 8 | 148.5 | ||||||
Features:
1.Intelligent monitoring
Real-time online monitoring:
Piston position visualization:
Status self-check:
2. Wireless transmission
All data collected locally are transmitted wirelessly.
3. Comprehensive protection, long life design
The main body adopts stainless steel valve body, customized magnetic indicator rod and anti-leakage plug;
Monitoring module protection level IP68; intrinsically safe explosion-proof certification; high temperature resistance; shallow water immersion.
Application:
ZKLR’s 4 Outlets Wireless Dual-line Grease Distributors can be used in the metallurgical steel industry, port and wharf industry, thermal power generation industry, wind power generation industry, mining machinery industry
Pangang No. 2 slab has zero bearing failures throughout the year;
Jiugang rolling and straightening machine is modified to precise maintenance, no replacement parts for 20 months;
Tianzhu Steel cold roller has no roller failure throughout the year.
