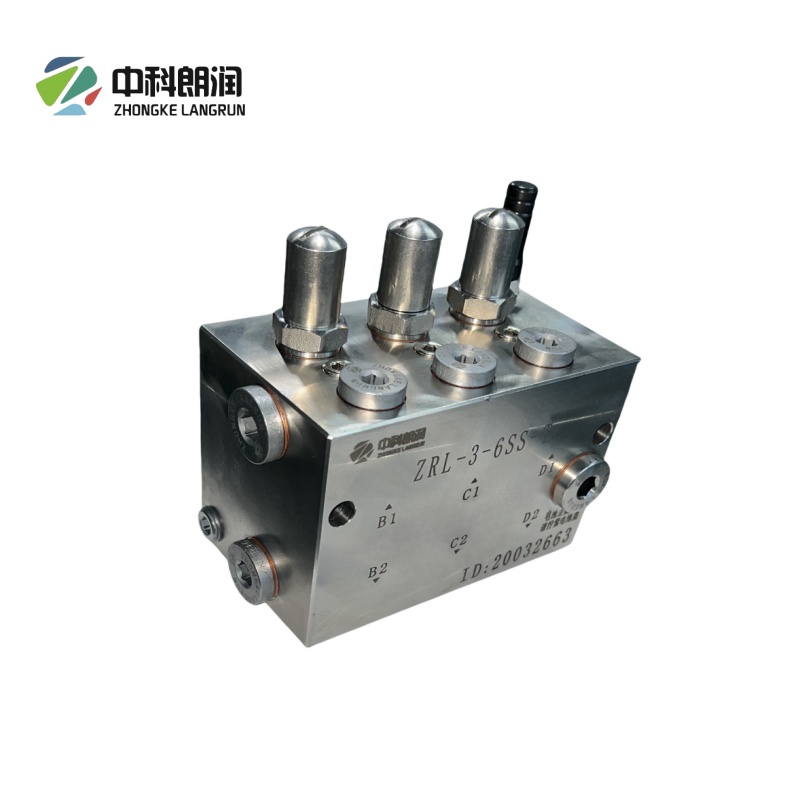

6 Outlets Wireless Dual-line Grease Distributor

The ZRL series intelligent 6 outlets wireless dual-line grease distributor is the grease filling actuator of ZKLR wireless intelligent lubrication system. It is responsible for delivering the grease to each lubrication point accurately and timely. Its function is to deliver grease to each lubrication point accurately and timely. In conjunction with the lubrication pump station and wireless base station, it can send information such as the temperature, angle, signal value, and internal action status of the installation environment to the server software platform for storage and analysis.

Product parameter of 6 Outlets Wireless Dual-line Grease Distributor

- Withstand voltage rating:≤40Mpa

- Applicable grease viscosity:0#-3#

- Minimum opening pressure:2Mpa

- Working temperature:-30ºC-+100ºC

- Protection level:IP68

- Sealing requirements:

In the long-term working environment below 40Mpa, the oil leakage point of the distributor is less than 2%

- Surface treatment:

PTFE spray corrosion technology, humid environment for 6 months corrosion depth body

≤1mm

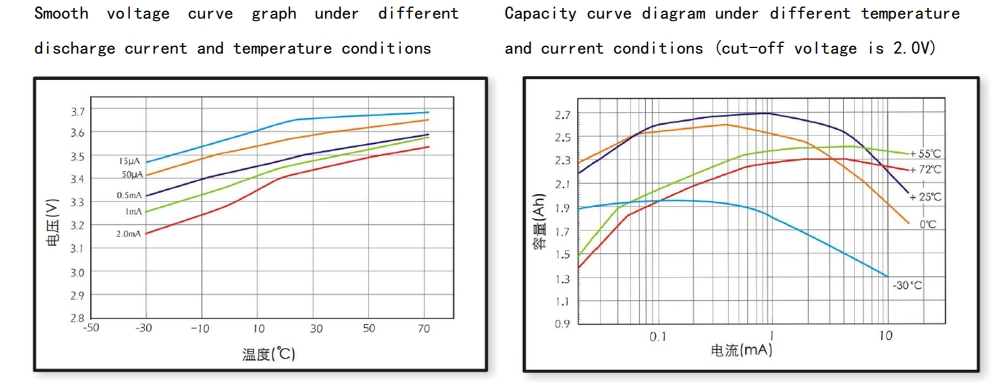

- Battery life:20ºC≥18months,80ºC≥8months(seethe figure below for detailed data)

Product Feature And Application of 6 Outlets Wireless Dual-line Grease Distributor

Features:

1.Intelligent monitoring

Real-time online monitoring:

Piston position visualization:

Status self-check:

2. Wireless transmission

All data collected locally are transmitted wirelessly.

3. Comprehensive protection, long life design

The main body adopts stainless steel valve body, customized magnetic indicator rod and anti-leakage plug;

Monitoring module protection level IP68; intrinsically safe explosion-proof certification; high temperature resistance; shallow water immersion.

Application:

ZKLR’s 6 Outlets Wireless Dual-line Grease Distributors can be used in the metallurgical steel industry, port and wharf industry, thermal power generation industry, wind power generation industry, mining machinery industry

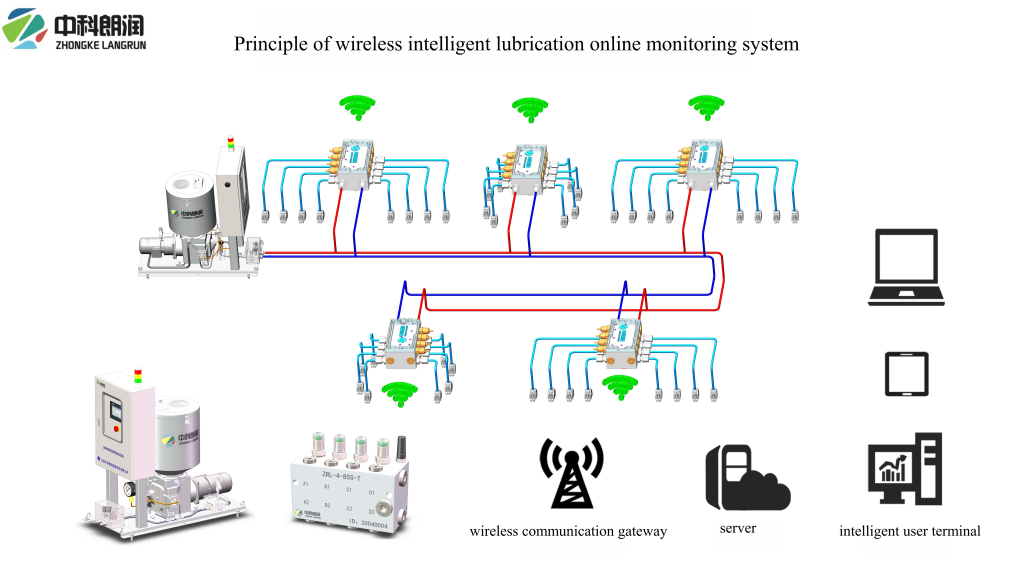

Principle of wireless intelligent lubrication online monitoring system

Successful cases

Pangang No. 2 slab has zero bearing failures throughout the year;

Jiugang rolling and straightening machine is modified to precise maintenance, no replacement parts for 20 months;

Tianzhu Steel cold roller has no roller failure throughout the year.
