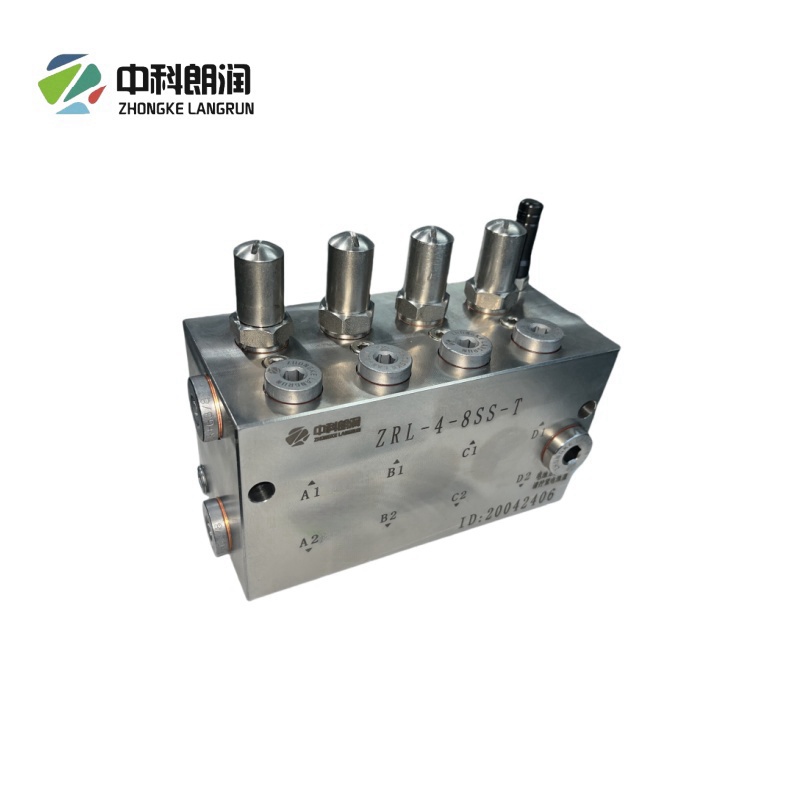

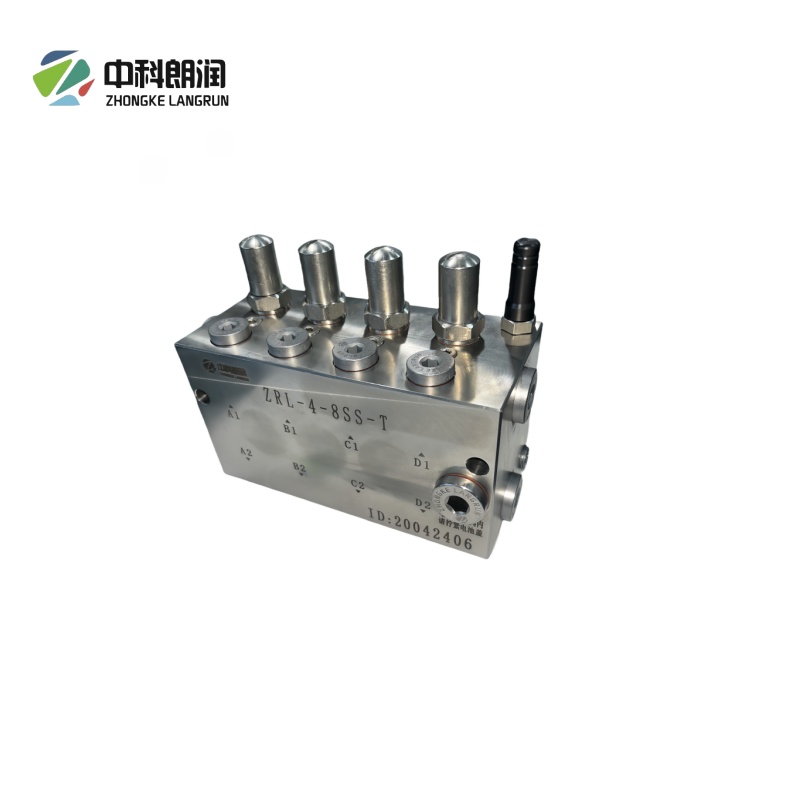

8 Outlets Wireless Dual-line Grease Distributor

The ZRL series 8 outlets wireless dual-line grease distributor monitors the status of lubrication points through wireless signals, monitors whether lubrication is effective in real time, and sends the temperature, angle, signal value, internal action status, etc. of the signal installation environment to the intelligent terminal through Ethernet. Users can use the software independently developed by ZKLR to monitor and analyze the lubricating oil filling situation in real time, handle faults in time, and reduce the waste of grease. This wireless dual-line grease distributor can completely replace the traditional distributor without additional wiring, and the software can be customized into English version.

Product parameter of 8 Outlets Wireless Dual-line Grease Distributor

- Withstand voltage rating:≤40Mpa

- Applicable grease viscosity:0#-3#

- Minimum opening pressure:2Mpa

- Working temperature:-30ºC-+100ºC

- Protection level:IP68

- Sealing requirements:

In the long-term working environment below 40Mpa, the oil leakage point of the distributor is less than 2%

- Surface treatment:

PTFE spray corrosion technology, humid environment for 6 months corrosion depth body

≤1mm

- Battery life:20ºC≥18months,80ºC≥8months(seethe figure below for detailed data)

Product Feature And Application of 8 Outlets Wireless Dual-line Grease Distributor

Features:

1.Intelligent monitoring

Real-time online monitoring:

Piston position visualization:

Status self-check:

2. Wireless transmission

All data collected locally are transmitted wirelessly.

3. Comprehensive protection, long life design

The main body adopts stainless steel valve body, customized magnetic indicator rod and anti-leakage plug;

Monitoring module protection level IP68; intrinsically safe explosion-proof certification; high temperature resistance; shallow water immersion.

Application:

ZKLR’s 8 Outlets Wireless Dual-line Grease Distributors can be used in the metallurgical steel industry, port and wharf industry, thermal power generation industry, wind power generation industry, mining machinery industry

Principle of wireless intelligent lubrication online monitoring system

Successful cases

Pangang No. 2 slab has zero bearing failures throughout the year;

Jiugang rolling and straightening machine is modified to precise maintenance, no replacement parts for 20 months;

Tianzhu Steel cold roller has no roller failure throughout the year.

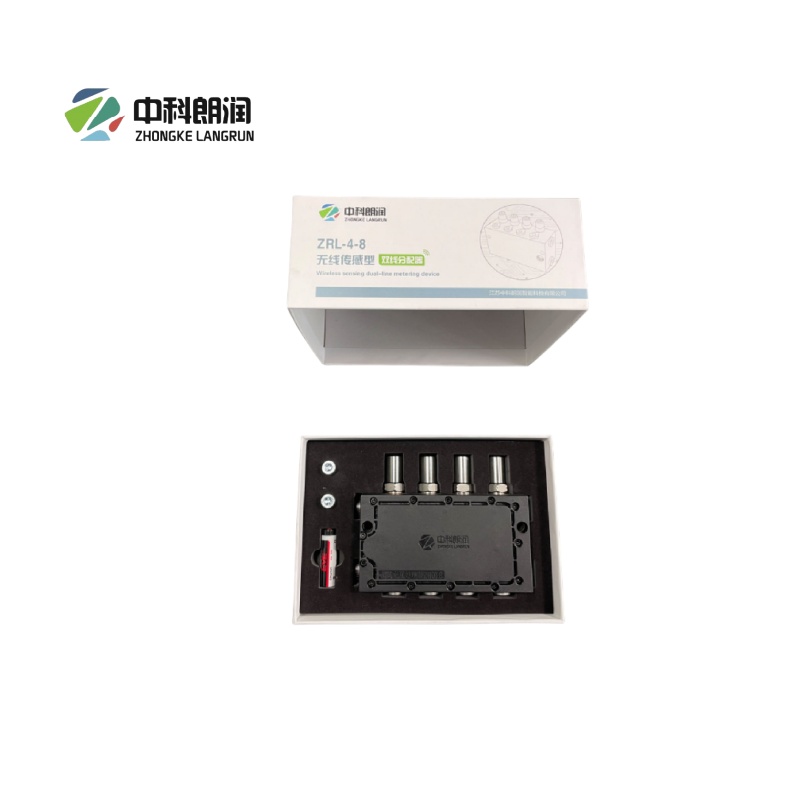

Package
