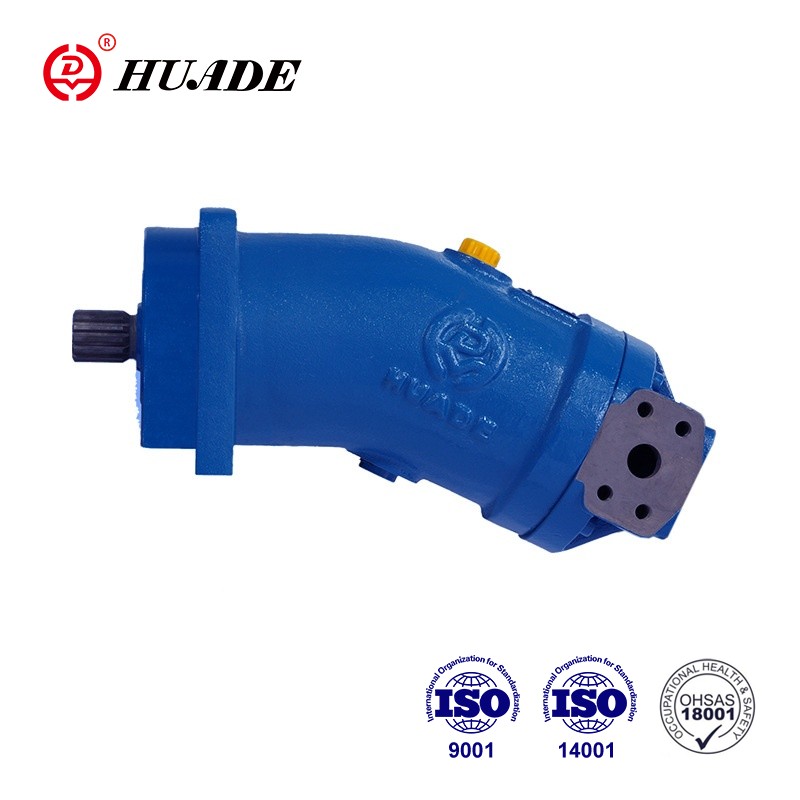

Axial Piston Fixed Motor A2FE Series 6

A2FE Series 6 piston fixed displacement motor plays an important role in industrial machinery. Due to its high speed, large torque output and power-to-weight ratio, as well as high overall efficiency, it is an ideal choice for many industrial equipment. The superior and stable working performance of the A2FE motor make it the preferred power source in many industrial equipment and machinery.

 Product parameter of Axial Piston Fixed Motor A2FE Series 6

■Shaft seal…Permissible pressure loading

☑The service life of the shaft seal is influenced by the speed of the axial piston unit and the case drain pressure (case pressure).

☑The mean differential pressure of 2 bar between the case and the ambient pressure may not be enduringly exceeded at normal operating temperature.

☑For a higher differential pressure at reduced speed, see diagram.

Momentary pressure spikes (t < 0.1 s) of up to 10 bar are permitted. The service life of the shaft seal decreases with an increase in the frequency of pressure spikes.

☑The case pressure must be equal to or higher than the ambient

■Direction of flow

■ Speed range

☑ No limit to minimum speed nmin. If uniformity of motion is required, speed nmin must not be less than 50 rpm. See table of values for maximum speed.

■ Long-life bearing

☑ Sizes 250,355

☑ For long service life and use with HF hydraulic fluids. Identical external dimensions as motor with standard bearings. Subsequent conversion to long-life bearings is possible.

☑Bearing and case flushing via port U is recommended.

■Ports

Ports	Port for	Diagram
A,B T	Working port Drain port

Product Feature And Application of Axial Piston Fixed Motor A2FE Series 6

Features:

Motor HD-A2FE Sizes 28~355 Series 6

Nominal pressure 400 bar Maximum pressure 450 bar

■Fixed plug-in motor with axial tapered piston rotary group of bent-axis

design, for hydrostatic drives in open and closed circuits.

■ Far-reaching integration in mechanical gearbox due to recessed mounting

flange located in the center of the case (extremely space-saving

construction)

■ Small dimensions,High total efficiency,Complete unit,ready-assembled and

tested,Easy to install,simply plug into the mechanical gearbox,No

configuration specifications to be observed when installing

Application:

A2FE bent-axis axial piston fixed displacement motor can be used in construction machinery, hydraulic pump stations, drilling rigs, blasting machines, paper making equipment, road machinery and other equipment to provide stable and reliable power support for the operation of these equipment.
