A2FE motor is a helical fixed displacement motor, suitable for hydraulic drive systems that require stable speed and high torque output. Huade’s axial piston fixed motor A2FE has a higher cost performance and is suitable for projects with limited budgets. Huade A2FE motor can replace Rexroth in most medium and high pressure hydraulic systems. It is suitable for general industry, agricultural machinery and maintenance market.

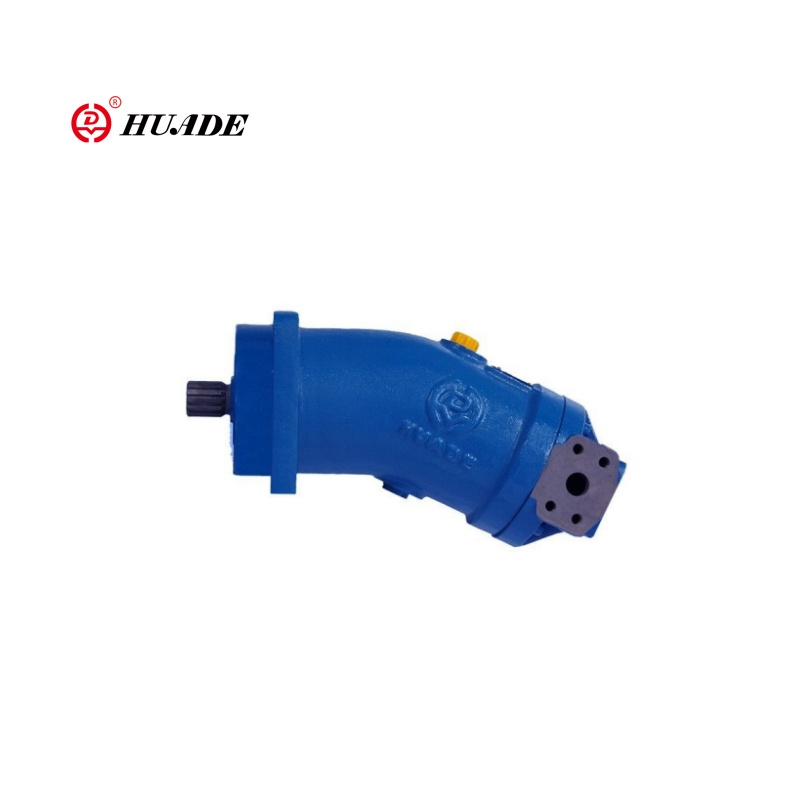

Axial Piston Fixed Motor A2FE
TECHNICAL REPLACEMENT NOTICE
This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-FIXED-MOTOR-A2FE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Easy assembly, with flange
• Specifications:Axial Piston Fixed Motor A2FE series
• Applications: production lines, test benches, agricultural machinery
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry
✓
100% Genuine Huade
Direct factory authorized supply
✓
SAE Flange Mounting
SAE / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features

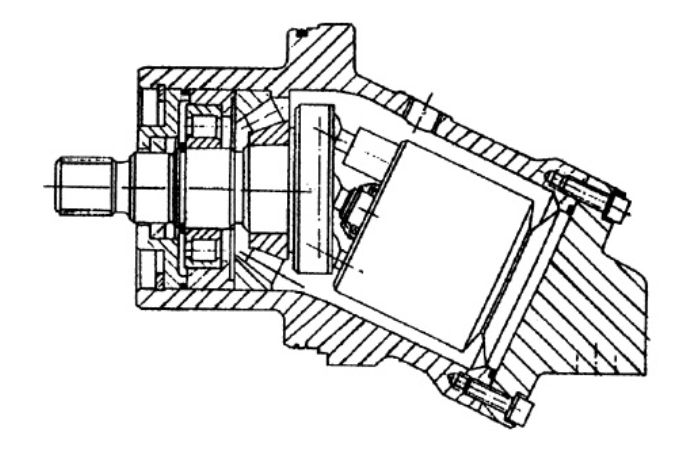

- The design of the motor with the mounting flange in center of the housing allows if to be almost fully integrated into a mechanical gear box to give an extremely compact unit.
- No installation tolerances to consider.
- Easy assembly,simply plug-in to mechanical gearboxes.
Industrial Applications
- Huade’s axial piston fixed motor A2FE is suitable for production lines, test benches, agricultural machinery (such as tractors, harvesters), ships and port machinery, etc.

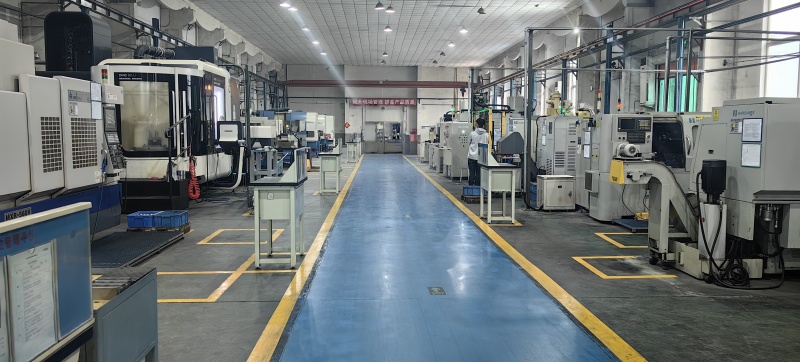

- Production site
- Huade Hydraulic has more than 750 production equipment from all over the world, in order to provide customers with more high-quality hydraulic valves and pumps.
Technical Parameters
Mechanical ratings and operating limits for the Axial Piston Fixed Motor A2FE:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Pressure at port A or B | Pressure at port A or B |
| Nominal pressure | Pn=35Mpa |
| Peak pressure | Pmax=40Mpa |
| Maximum permissible case pressure | Maximum permissible case pressure |
| P | 0.2MPa |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity Range | Viscosity Range |
| Vmin | 10mm2/s |
| Vmax | 1000mm2/s |
| Optimum Operating viscosity | Optimum Operating viscosity |
| Vopt | 16-36mm2/s |
