Axial Piston Fixed Motor Rexroth Interchangeable

Piston Fixed Motor A2F

MANUFACTURER Genuine Huade Hydraulic
STANDARDS ISO 3019 / SAE Standard
AVAILABILITY Factory Direct Stock
Piston Fixed Motor A2F
Piston Fixed Motor A2F - Image 2
Piston Fixed Motor A2F - Image 3
Piston Fixed Motor A2F - Image 4
Piston Fixed Motor A2F - Image 5
TECHNICAL REPLACEMENT NOTICE

This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-FIXED-MOTOR-A2F equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.

• Product features:self-centering low peripheral speed, high efficiency.Low noises generation.
• Specifications:Piston Fixed Motor A2F series,
• Applications: in forklifts, machine tools, metallurgical equipment, harvesters.

Request B2B Quote

Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.

Send Product Inquiry → 📥 Download PDF Datasheet
💬 WhatsApp: +86-18217786775
✓
100% Genuine Huade Direct factory authorized supply
✓
SAE Flange Mounting SAE / Rexroth interchangeable
✓
Secure Packaging Sealed rust-proof global shipping

Technical Data Sheet

  • Product Overview
  • Features & Applications
  • Technical Parameters

Product Overview

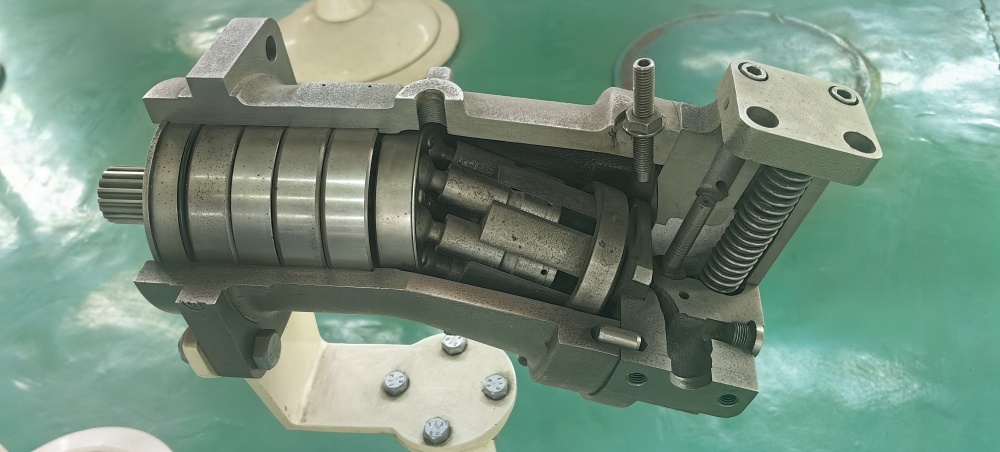

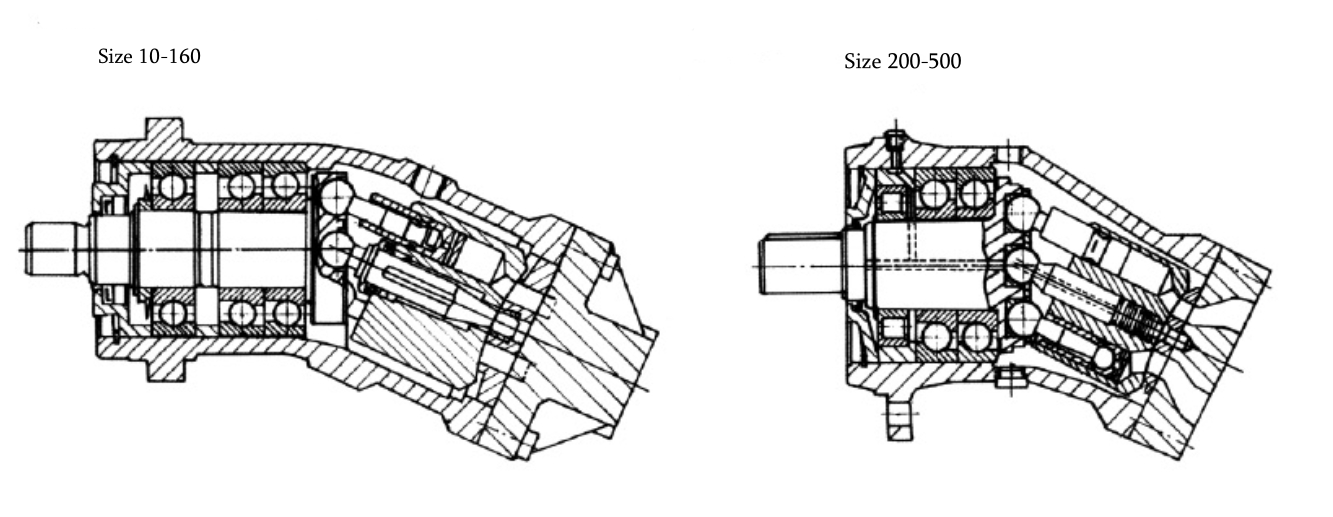

Axial piston fixed motor A2F is axial piston unit of bent axis design with fixed displacement, for use as either pump of motor in hydrostatic drivers, in open or closed circuit. If A2F operated as a pump, the flow is proportional to the drive speed and displacement. If A2F operated as a motor, the output speed is proportional to the swept volume and inversely proportional to displacement. The output torque of A2F increases with the pressure drop between the high and low pressure sides.

Product Feature And Application of Axial Piston Fixed Motor A2F

Key Features

  • ▪High performance rotary group with well-proven spherical control area with the advantages: self-centering low peripheral speed, high efficiency.
  • ▪Robust rolling bearings endure long service life
  • ▪Drive shaft capable of adopting radial loading
  • ▪lSO mounting flange. uniform for fixed displacement
  • ▪Pumps/motors and variable motors from size 55
  • ▪May be used in conjunction with fire--resistant fluids.
  • ▪Low noises generation.

Industrial Applications

  • A2F fixed displacement motor has a relatively low cost and is widely used in forklifts, machine tools, metallurgical equipment, harvesters, anchor winches, etc.

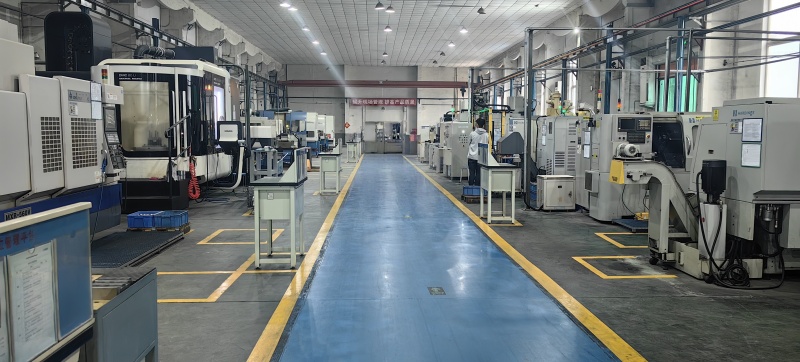

  • Workshop
  • In order to provide customers with more high-quality hydraulic products,Huade Hydraulic has operated more than 750 production equipment from all over the world.

Technical Parameters

Mechanical ratings and operating limits for the Piston Fixed Motor A2F:

Parameter / Dimension Name Value / Rating Specification
Inlet Operating Pressure Inlet Operating Pressure
Pump Pump
Minimum pressure at ports A or B Pabs=0.08MPa
Motor Motor
Pressure at port A or B Pressure at port A or B
Nominal pressure PN=35MPa
Peak pressure Pmax=40MPa
Outlet Operating Pressure Outlet Operating Pressure
Maximum permissible case pressure(at port T) Pabs=0.2MPa
Oil Temperature Range Oil Temperature Range
tmin -25℃
tmax +80℃
Viscosity Range Viscosity Range
Vmin 10mm2/s
Vmax 1000mm2/s
