The variable motor A6V200 is a bent axis axial piston variable motor with the characteristics of high pressure, large displacement, adjustable speed and torque. The maximum working pressure of A6V200 motor can reach over 350 bar, which is suitable for heavy-load scenarios. Huade’s axial piston variable motor A6V200 features a compact design that is ideal for space-constrained equipment.

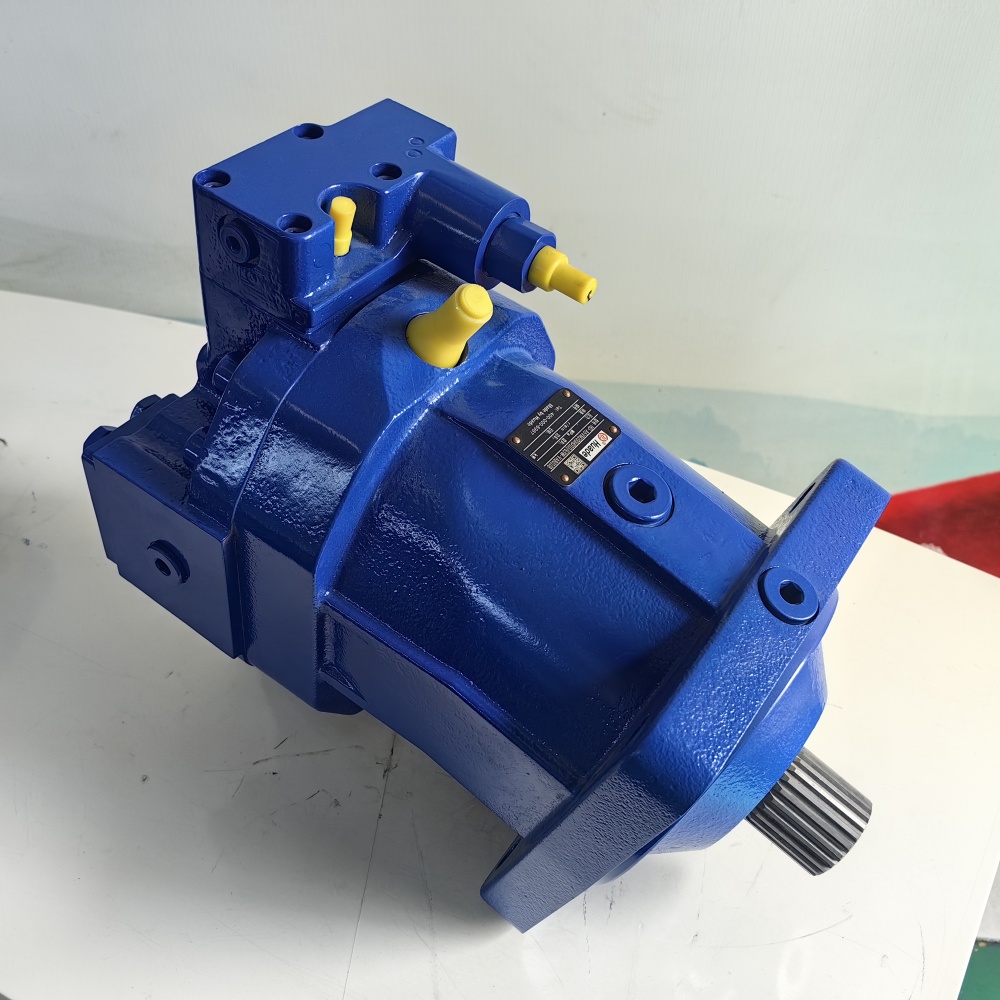

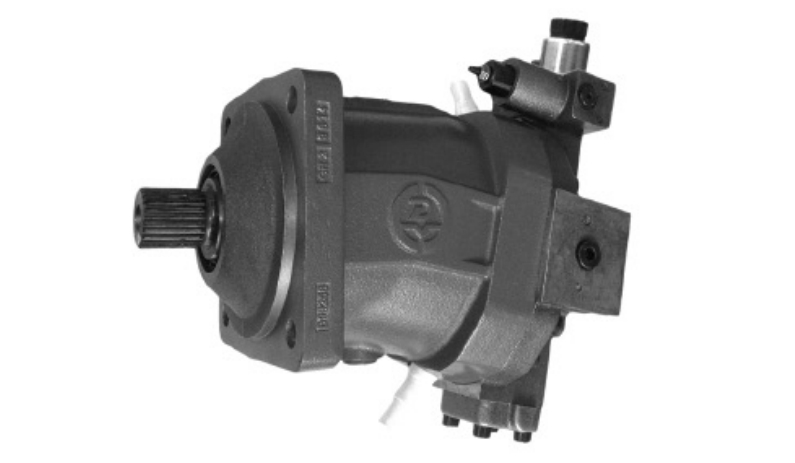

Axial Piston Variable Motor A6V200
TECHNICAL REPLACEMENT NOTICE
This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-VARIABLE-MOTOR-A6V200 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:High power density,Low moment of inertia
• Specifications:Axial Piston Variable Motor A6V200 series,
• Applications:engineering machinery, industrial equipment
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
SAE Flange Mounting
SAE / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- For use in mobile and stationary application areas
- The wide control range enables the variable motor to satisfy the requirements for high speed and high torque
- The displacement is infinitely variable from V gmax to the V gmin = 0
- The output speed depends on the flow of the pump and the displacement of the motor
- The output torque increases with the pressure differential between the high and low pressure side and with increasing displacement
- Wide control range with hydrostatic transmission
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of smaller pumps
- Compact, robust bearing system with long service life
- High power density
- Good starting characteristics
- Low moment of inertia
- Wide swing range of the clino-axis
Industrial Applications
- Huade’s variable motor A6V200 is widely used in engineering machinery, industrial equipment and other fields.

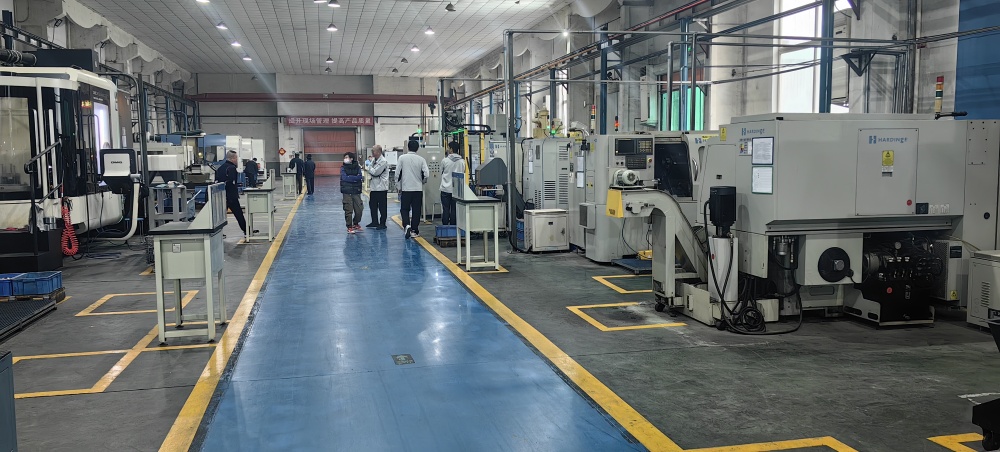

- Production site
Technical Parameters
Mechanical ratings and operating limits for the Axial Piston Variable Motor A6V200:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Operating pressure range | Operating pressure range |
| Pressure on port A or B | Pressure on port A or B |
| Nominal pressure | PN=40MPa |
| Peak pressure | Pmax=45MPa |
| Total pressure(press. A+press.B) | Pmax=70MPa |
| Temperature Range | Temperature Range |
| The FKM shat seal ring is possible for case temperatures | -25℃ ~+115℃ |
| Viscosity Limit | Viscosity Limit |
| Vmin | 5mm2/s |
| Vmax | 1600mm2/s |
| Oil Viscosity Range | Oil Viscosity Range |
| Vopt | 16~36mm2/s |
