Huade’s axial piston variable motor A6VM is a variable displacement motor with a bent axis axial piston. It has the characteristics of high pressure, high efficiency and adjustable displacement. A6VM motor is widely used in hydraulic systems that require high torque, variable speed control or energy recovery. In systems that require variable flow and pressure, motor A6VM can be matched with a variable pump to achieve energy-saving control.

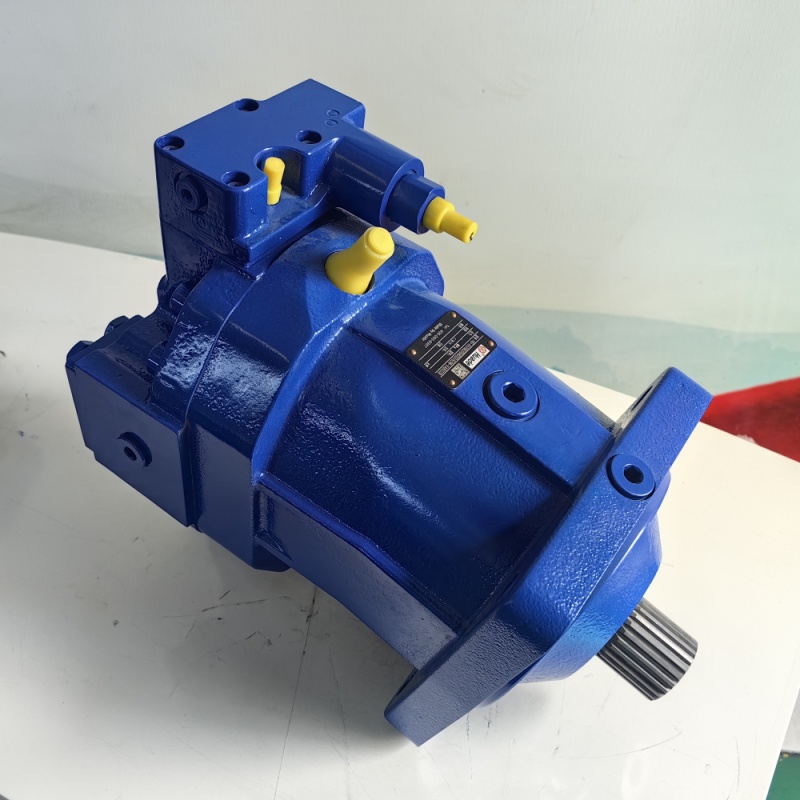

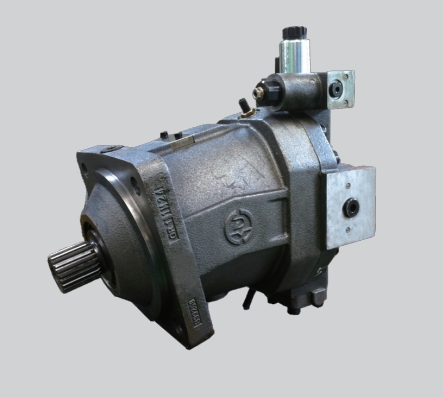

Axial Piston Variable Motor A6VM
TECHNICAL REPLACEMENT NOTICE
This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-VARIABLE-MOTOR-A6VM equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:High power density,Good starting characteristics
• Specifications:Axial Piston Variable Motor A6VM series,
• Applications:mobile and fixed equipment industrial fields.
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
SAE Flange Mounting
SAE / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Variable motor with axial tapered piston rotary group of bent-axis design, for hydrostatic drives in open and closed circuits
- For use in mobile and stationary applications
- The wide control range enables the variable motor to satisfy the requirement for high speed and high torque
- The displacement can be infinitely changed from Vg max to Vg min = 0.
- The output speed is dependent on the flow of the pump and
- The output torque increases with the pressure differential between the high-pressure and low-pressure side and with increasing displacement.
- Wide control range with hydrostatic transmissions
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of using smaller pumps
- Compact, robust motor with long service life
- High power density
- Good starting characteristics
- Small swing torque
Industrial Applications
- Axial piston variable motor A6VM adopts an integrated axial tapered plunger design with a plunger ring, suitable for hydraulic transmission in open and closed circuits. Huade’s motor A6VM is also suitable for mobile and fixed equipment industrial fields.

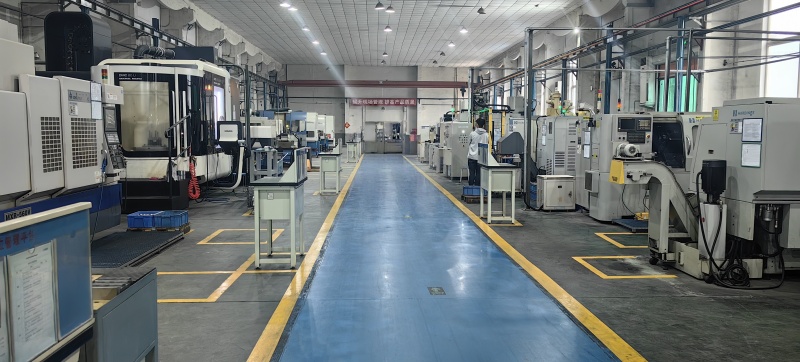

- Production site
- In order to provide customers with more high-quality hydraulic valves and pumps, Huade Hydraulic has introduced more than 750 production equipment from all over the world.
Technical Parameters
Mechanical ratings and operating limits for the Axial Piston Variable Motor A6VM:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Operating pressure range | Operating pressure range |
| Pressure at service line port A or port B | Pressure at service line port A or port B |
| Sizes 28 to 200 | Sizes 28 to 200 |
| Nominal pressure | Pnom=350 bar absolute |
| Maximum pressure | Pmax=400 bar absolute |
| Single operating period | 10s |
| Total operating period at | 300h |
| Size 250 to 1000 | Size 250 to 1000 |
| Minimum pressure (high-pressure side) | 25 bar absolute |
| Summation pressure(pressure A+ pressure B) | Psu=700bar |
