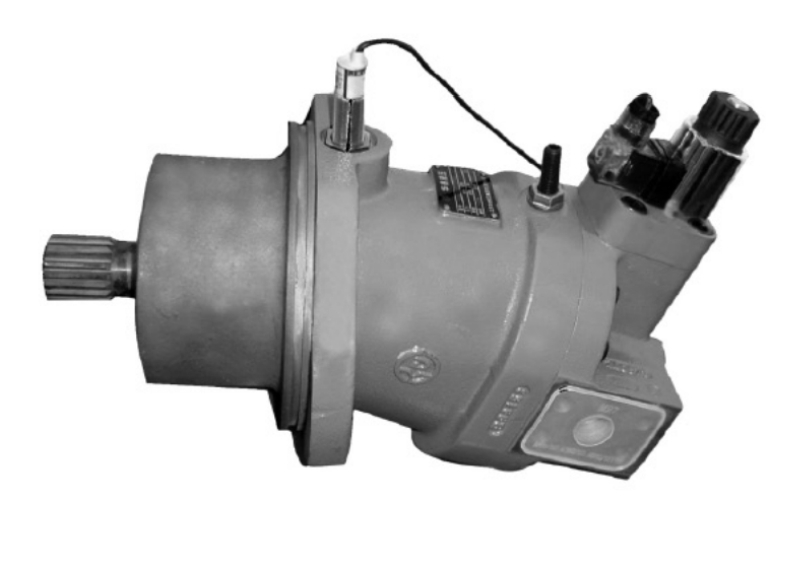

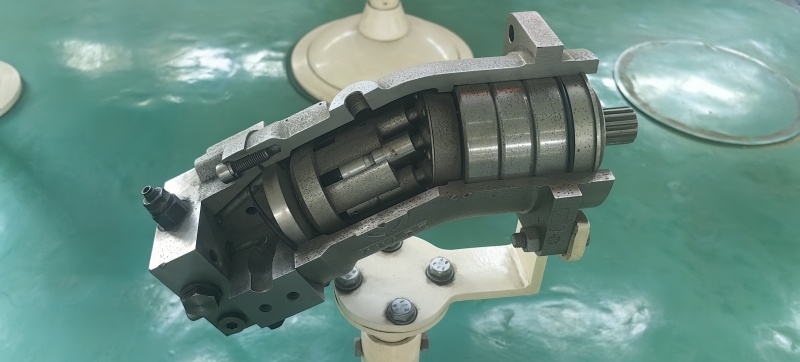

Axial piston variable motor A6VE is equipped with a standard axial tapered piston rotary group of benta xis design. Hydrostatic plug-in motors are intended primarily for installationl in mechanical gearboxes, e.g.track drive gear boxes. The desing of the A6VE motor with the mounting flange in the center of the housing allows it to be almost fully integrated into a mechanical gearbox. The casting shell of motor A6VE has been tested for high pressure tightness and is leak-proof.
Axial Piston Variable Motor A6VE
TECHNICAL REPLACEMENT NOTICE
This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-VARIABLE-MOTOR-A6VE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Complete unit, ready assembled and tested
• Specifications:Axial Piston Variable Motor A6VE series
• Applications: travel drives of excavators, loaders, crawler cranes,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
SAE Flange Mounting
SAE / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Complete unit, ready assembled and tested,
- Easy assembly simply plug-in to mechanical gearboxes.
- No installation tolerances to consider
Industrial Applications
- The variable displacement motor A6VE is an axial piston variable displacement motor, a core component in the field of hydraulic transmission, known for its high efficiency, high power density and adjustable displacement. Axial piston variable motor A6VE is widely used in travel drives of excavators, loaders, crawler cranes, combine harvesters/tractors, mining trucks/rock drills, etc.

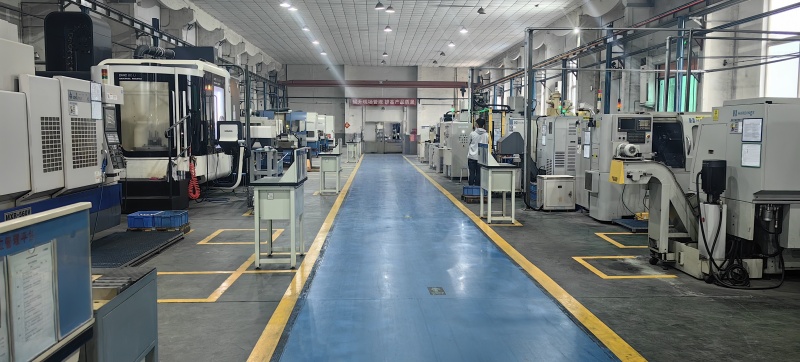

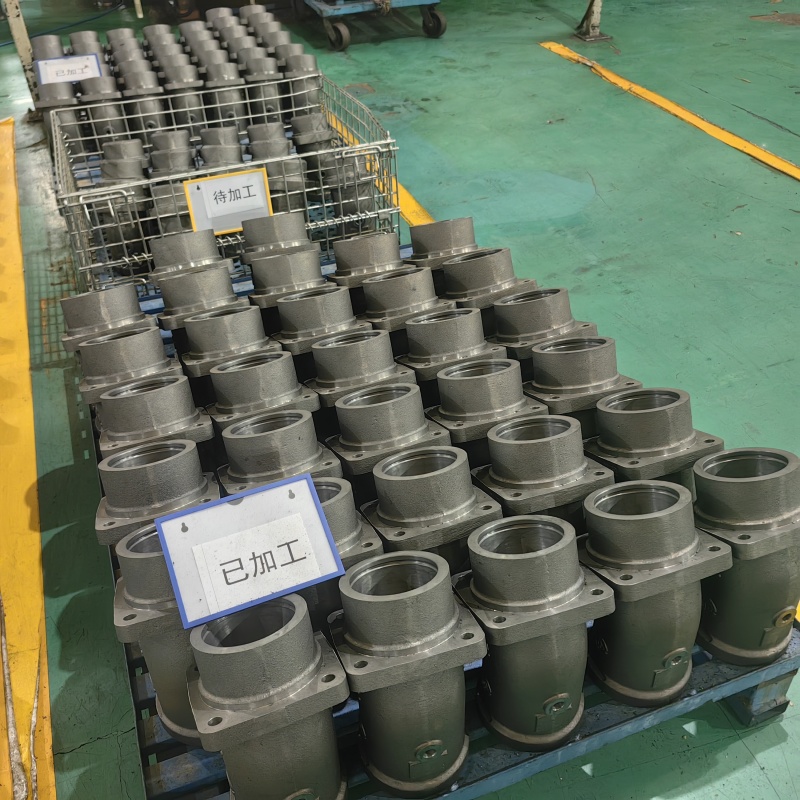

- Production site
Technical Parameters
Mechanical ratings and operating limits for the Axial Piston Variable Motor A6VE:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Pressure at port A or B | Pressure at port A or B |
| Nominal pressure | Pn=31.5MPa |
| Peak pressure | Pmax=35Mpa |
| Maximum permissible leakage oil pressure ( at Port T) | Pabs=0.2Mpa |
| Fluid temperature range | Fluid temperature range |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity range | Viscosity range |
| umin | 10mm2/s |
| umax | 1000mm2/s |
| Optimum operating viscosity | Optimum operating viscosity |
| Vopt | 16-36mm2/s |
