The axial piston variable motor A6VG is a high-pressure bent-axis axial piston variable motor, which is widely used in engineering machinery, industrial equipment and other fields. Huade’s A6VG motor high performance and adjustable characteristics make it suitable for a variety of complex working conditions. The A6VG's compact design is ideal for space-constrained equipment.
Axial Piston Variable Motor A6VG
TECHNICAL REPLACEMENT NOTICE
This Huade® axial piston motor serves as a 100% direct drop-in replacement for Bosch Rexroth AXIAL-PISTON-VARIABLE-MOTOR-A6VG equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:Low unit power,Low inertia
• Specifications:Axial Piston Variable Motor A6VG series
• Applications:travel drive systems, agricultural and forestry machinery,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
SAE Flange Mounting
SAE / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Wide control range for hydrostatic drives
- Various control and regulating devices
- Cost saving through elimination of gearbox and possibility of using smaller motors
- Compact, robust bearing system with long service life 20% Comparing with antetype product, the measure of axes' direction has shortened 20%
- The max. and the min. displacement are variable design
- Low unit power
- Good starting characteristics
- Low inertia
Industrial Applications
- Axial piston variable motor A6VG is widely used in travel drive systems, agricultural and forestry machinery, port and ship equipment, special vehicles.
- Workshop

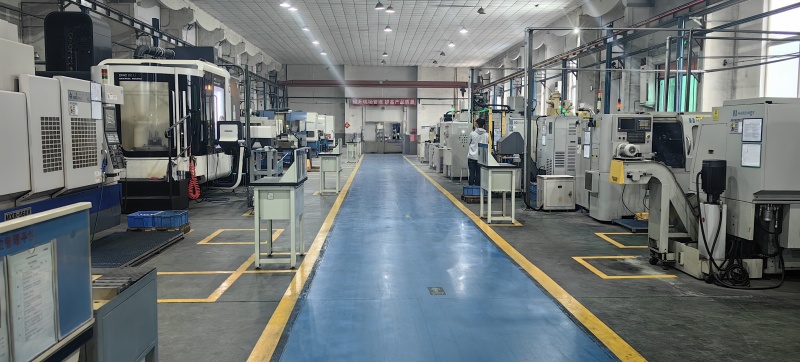

- Huade Hydraulic has more than 750 production equipment from all over the world, in order to provide customers with more high-quality hydraulic valves and pumps.
Technical Parameters
Mechanical ratings and operating limits for the Axial Piston Variable Motor A6VG:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Operating Pressure Range | Operating Pressure Range |
| Pressure at port A or B | Pressure at port A or B |
| Nominal pressure | P=31.5MPa |
| Peak pressure | Pmax=40MPa |
| Maximum permissible leaking oil pressure (at Port T) | Pabs=0.2MPa |
| Fluid Temperature Range | Fluid Temperature Range |
| tmin | -25℃ |
| tmax | +80℃ |
| Viscosity Range | Viscosity Range |
| umin | 10mm2/s |
| umax | 1000mm2/s |
| Optimum Operating Viscosity | Optimum Operating Viscosity |
| Vopt | 16-36mm2/s |
