The balancing valve is widely used in the field of engineering machinery, especially in the hydraulic system of large-tonnage lifting equipment. The pilot control pressure range of this product is large, and the pilot port is equipped with a filter, so the whole valve has strong anti-pollution ability. Various damping combinations can realize a variety of pilot controls, greatly improving the stability of the system.

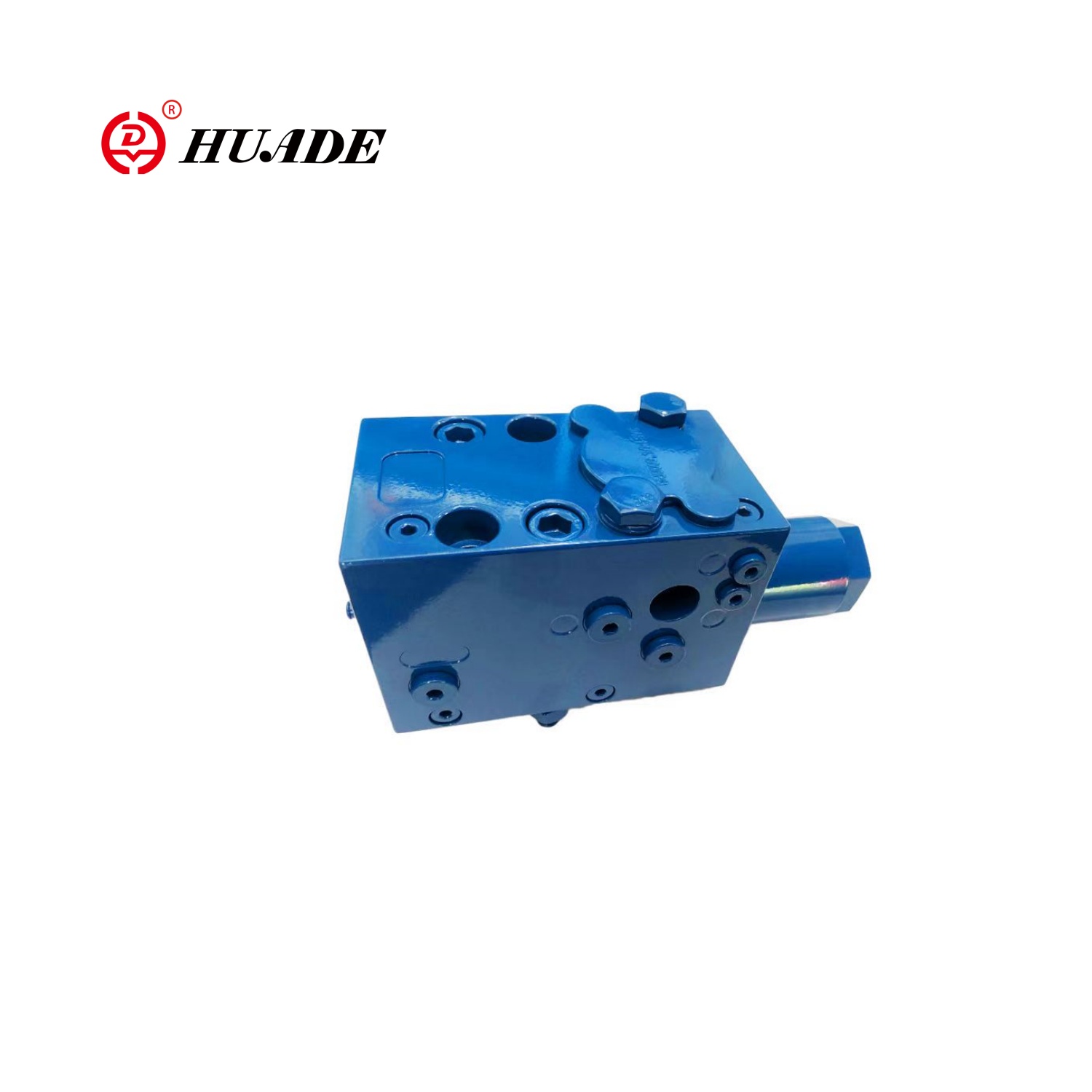

Engineering Balance Valve BLV600
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth ENGINEERING-BALANCE-VALVE-BLV600 equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:threaded connection, compact structure
• Specifications:BLV600 series,
• Applications:automated production lines, environmental protection equipment,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- the electromagnet can be rotated 90°
- the coil can be replaced without adding oil
- you can choose to connect individually or centrally
- optional manual emergency operation
- threaded connection, compact structure
Industrial Applications
- Huade’s threaded electromagnetic reversing valves are widely used in many fields, such as automated production lines, environmental protection equipment, refrigeration equipment, sewage treatment,petrochemicals.
Technical Parameters
Mechanical ratings and operating limits for the Engineering Balance Valve BLV600:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Maximum working pressure | 42bar |
| Rated working pressure | 35bar |
| Forward rated flow | 600L/min |
| Reverse rated flow | 500L/min |
| Oil port size | MA,MB,MVST,X,T:G1/4 |
| Function Introduction | Applied to winch and luffing conditions, making the action smoother and more accurate. The pilot control pressure range is large and various damping hole combinations can achieve fine control |
| Main application areas | Winch luffing condition |
