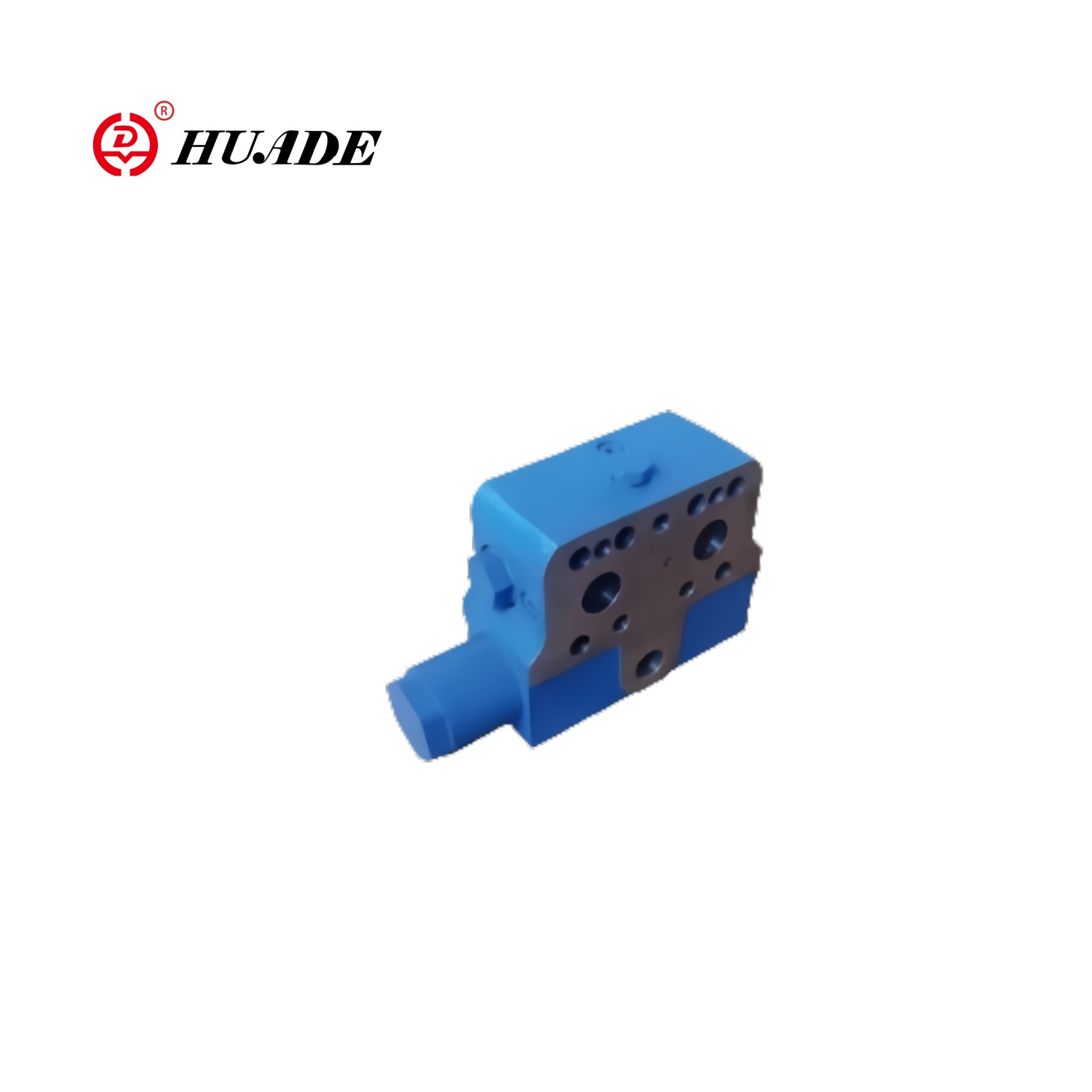

There is a built-in brake release valve in the engineering balance valve. Customers can choose with or without a pressure reducing valve. It has low flow resistance and high volumetric efficiency. Standard modular structure of the engineering balance valve allows for easy optimization and selection during commissioning.
Engineering Balance Valve
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth ENGINEERING-BALANCE-VALVE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:complies with SAE J518
• Specifications:Engineering Balance Valve series,
• Applications:construction machinery, agricultural machinery,
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Compact structure, saves installation space, can be directly installed on A2FM(E) and A6VM axial piston motors
- Can be integrated with A2FM(E), A6VM axial piston motors and GFT reducers as a component, and tested as a whole like other standard products
- Working oil port complies with SAE J518
Industrial Applications
- The engineering balance valve is used in construction machinery, agricultural machinery, winches, and sprocket-driven machinery.
Technical Parameters
Mechanical ratings and operating limits for the Engineering Balance Valve:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Size - - 20 | 25 |
| Working line pressure P bar - From primary valve to safety valve - 350 | 350 |
| Working line pressure P bar - Secondary valve - 420 | 420 |
| Maximum nominal flow qvmax L/min - - 220 | 320 |
| The pressure at which the brake valve core begins to open P bar - BVD.F - 7 | 7 |
| The pressure at which the brake valve core begins to open P bar - BVD.W - 20 | 20 |
| The pressure when the brake valve core is fully opened P bar - BVD.F - 30 | 30 |
| The pressure when the brake valve core is fully opened P bar - BVD.W - 40 | 40 |
| Pressure reducing valve for brake release (fixed value) P bar - BVD...L/ - 21+4 | 21+4 |
| Opening pressure P bar - BVD...L/ - 1+4 | 1+4 |
| Weight kg - - 9 | 15 |
