Huade's open center multi-way valve is a special hydraulic valve. Its characteristic is that when the valve core is in the middle position, the hydraulic oil output by the hydraulic pump can flow back to the oil tank through the multi-way valve. The open center multi-way valve generally adopts a six-way multi-way valve structure. The main oil circuit of the hydraulic pump outlet is divided into two circuits: a parallel oil circuit (parallel channel) and a bypass oil circuit (open center channel). The speed regulation of the open center multi-way valve adopts a combination of bypass throttling and oil inlet throttling. The speed regulation effect is achieved by controlling the opening amount of the oil cylinder and the oil tank through the valve core throttling.

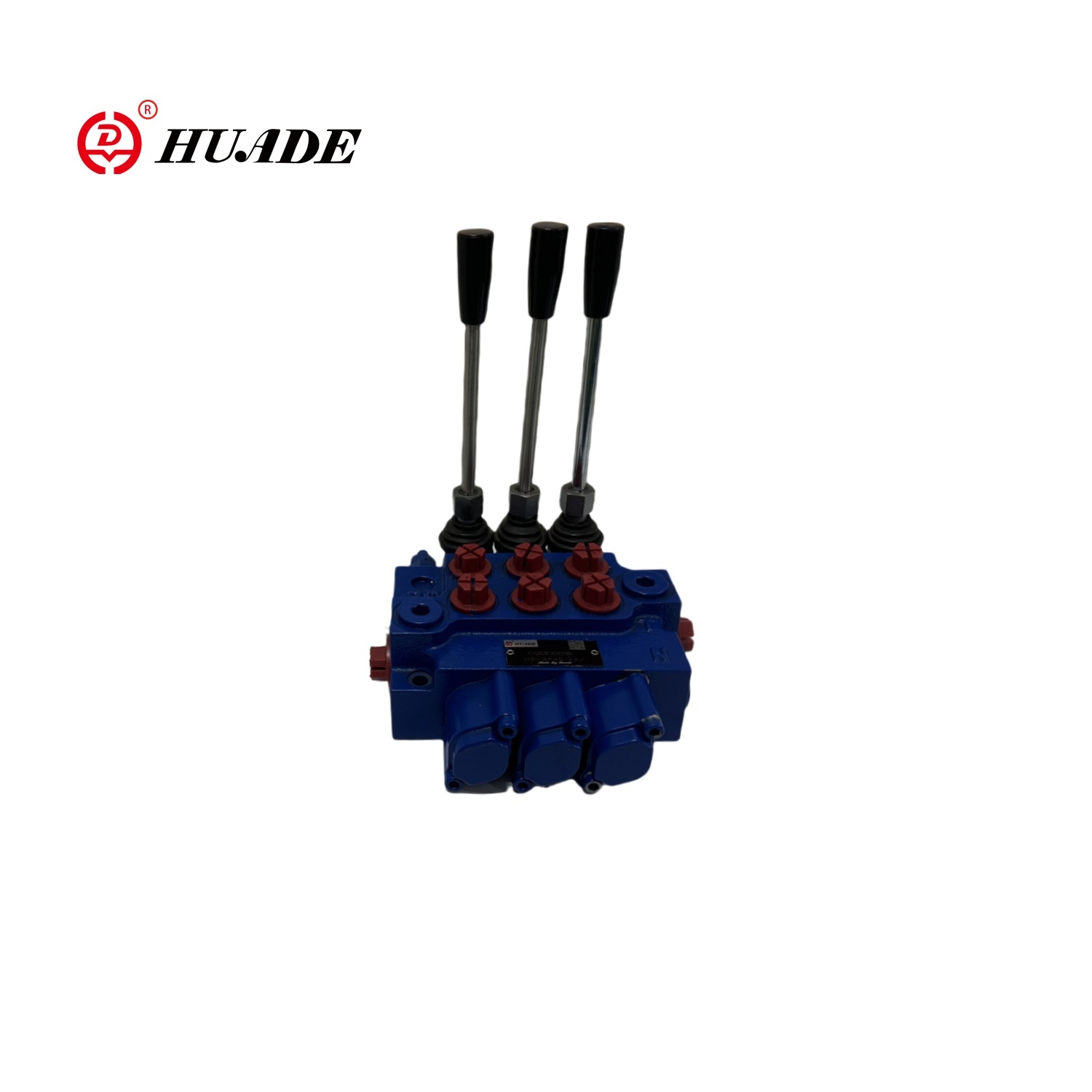

Open-center Multi-way Valve
TECHNICAL REPLACEMENT NOTICE
This Huade® directional control valve serves as a 100% direct drop-in replacement for Bosch Rexroth OPEN-CENTER-MULTI-WAY-VALVE equivalents. Dimensions, mounting interfaces, and technical parameters are identical. Designed for cost reduction in industrial and mobile hydraulic systems.
• Product features:integral design
• Specifications:Open-center Multi-way Valve series,
• Applications:coal drilling rigs, cranes
Request B2B Quote
Submit your target quantity and technical questions. Our hydraulic engineering team will provide a factory-direct quote and lead time estimate within 24 hours.
Send Product Inquiry Download PDF Datasheet
✓
100% Genuine Huade
Direct factory authorized supply
✓
ISO 4401 Mounting
ISO 4401 / Rexroth interchangeable
✓
Secure Packaging
Sealed rust-proof global shipping
Technical Data Sheet
- Product Overview
- Features & Applications
- Technical Parameters
Product Overview
Key Features
- Adopt an integral design to control the flow direction of the fluid in the starting, working and stopping states
- Pressure to 250bar
- Flow to 40L/min
- 6-unit integral structure
- Open center type
Industrial Applications
- Open-center multi-way valve is mainly used in coal drilling rigs, cranes and drilling rigs.
Technical Parameters
Mechanical ratings and operating limits for the Open-center Multi-way Valve:
| Parameter / Dimension Name | Value / Rating Specification |
|---|---|
| Structural features | Overall structure |
| Installation and Fixing | 2 × M8 bolts |
| Pressure connection | Open center multi-way valve |
| Ambient temperature | -40 to +60 ℃ |
| Oil medium | Mineral hydraulic oil |
| Viscosity Range | Recommended range 20~100mm2/s |
| Oil temperature | -15 to 80℃ |
| Filter level | Oil solid contamination level NAS1638 level 10 |
| Maximum working pressure | P=250 bar, T=50bar, A,B=300bar |
| Rated flow | 40L/min |
| Valve core travel | ±6mm |
| Spool driving force | Less than 200N |
